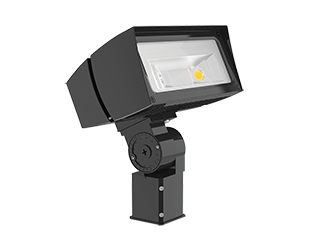

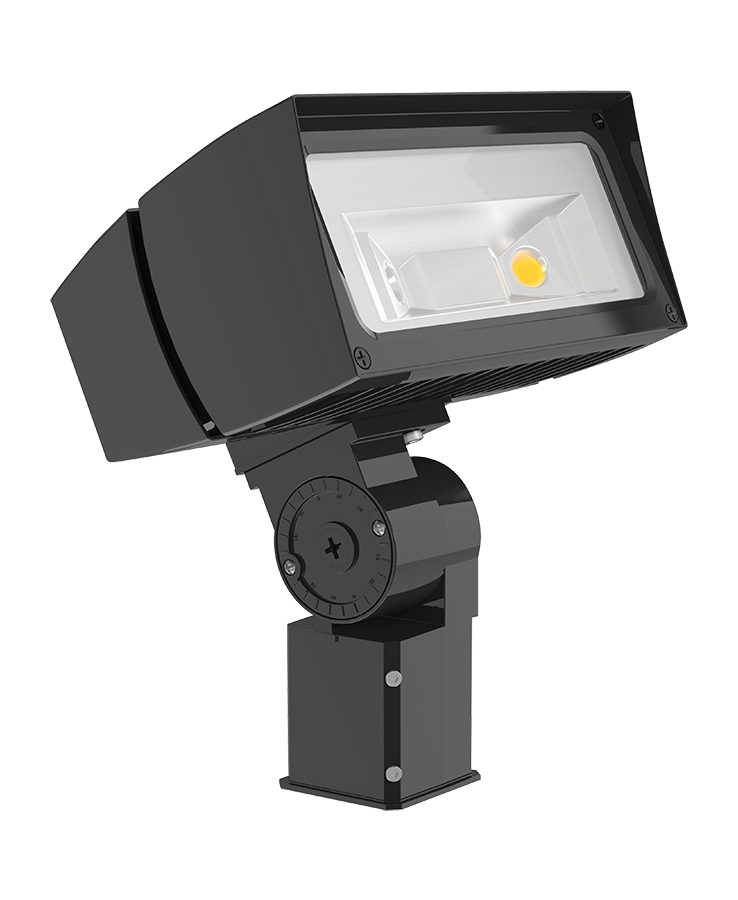

• Ultra-efficient LED and optical design
  • Replaces 100W MH floodlights
  • 100,000-hour life based on LM-80 results and TM-21 calculations
  • "Air-Flow" technology heatsink
  • 5-Year, No-Compromise Warranty
View Technical Specs
Performance
Watts 26W
Color Temp 5000K (Cool)
Lumens 3,961 lm
Efficacy 144 lm/W
Color Accuracy 75 CRI
L70 Lifespan 100,000 hours
Type Constant Current
120V
208V
240V
277V
Input Watts 28W
Dimensions
Link to Dimension Drawing

Weight: 11.7 lbs

Technical Specifications
Compliance
UL Listed
Suitable for wet locations. Suitable for mounting within 1.2m (4ft) of the ground.
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
DLC Product Code: PSMC98EJ
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Electrical
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
3.93% at 480V
Power Factor
92% at 480V
Note
All values are typical (tolerance +/- 10%)
Construction
Lens
Soda lime silica clear glass
Housing
Die-cast aluminum housing, lens frame and mounting arm
Mounting
Heavy-duty Slip Fitter for 2 3/8" OD pipe
IP Rating
Ingress protection rating of IP66 for dust and water
Maximum Ambient Temperature
Suitable for use in up to 40°C (104°F)
Cold Weather Starting
The minimum starting temperature is -40°C (-40°F)
Effective Projected Area
EPA = 0.75
Green Technology
Mercury and UV free. RoHS-compliant components.
Finish
Formulated for high durability and long-lasting color
Tilt Increment
Rotates in 6 degree increments
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Consistency
3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for (SSL) Products, ANSI C78.377-2017.
Optical
NEMA Type
7H x 6V Beam Spread
Other
Equivalency
Equivalent to 100W Metal Halide
Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Patents
The FFLED design is protected by U.S. Pat. D643,147, Canada Pat. 140798, China Pat. ZL201130171304.1, Mexico Pat. 36757 and pending patent in Taiwan.
Buy American Act Compliance
RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
