Architectural style. Parking lot tough.
The field-adjustable AL5 post top area light.
Architectural style. Parking lot tough.
The field-adjustable AL5 post top area light.
Refined looks, serious performance.
The AL5 is RAB's architectural post top solution — built to impress on aesthetic-driven projects without sacrificing the durability specs demand. Available in round or square models and four finishes, it fits seamlessly into any environment.
Dial in the perfect light.
Three selectable wattages and field-adjustable CCT mean you can fine-tune the AL5 on site without reordering.
When compliance is critical.
The AL5 is available in IDA DarkSky-approved models with static 3000K light and a Type V Concentrated distribution that keep you compliant with local codes and ordinances.
Control-ready options.
Optional, factory-installed accessory arms let you plug in photocells* or motion sensors (standard or Lightcloud Blue) after installation.
*Includes shorting cap

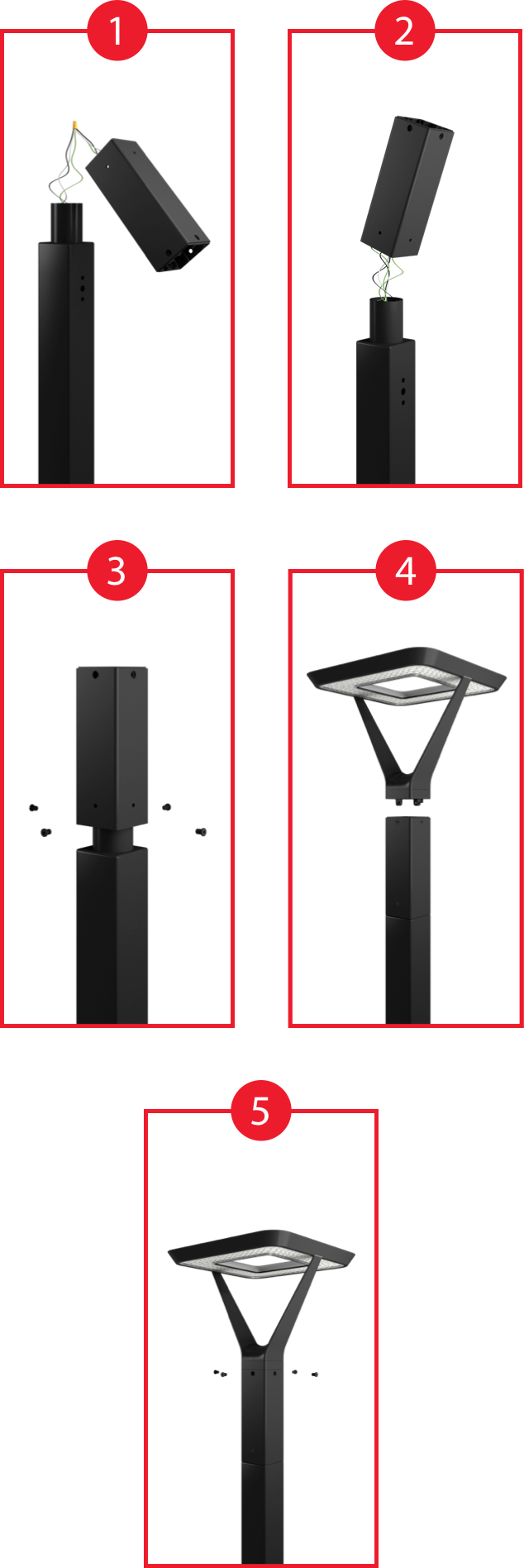

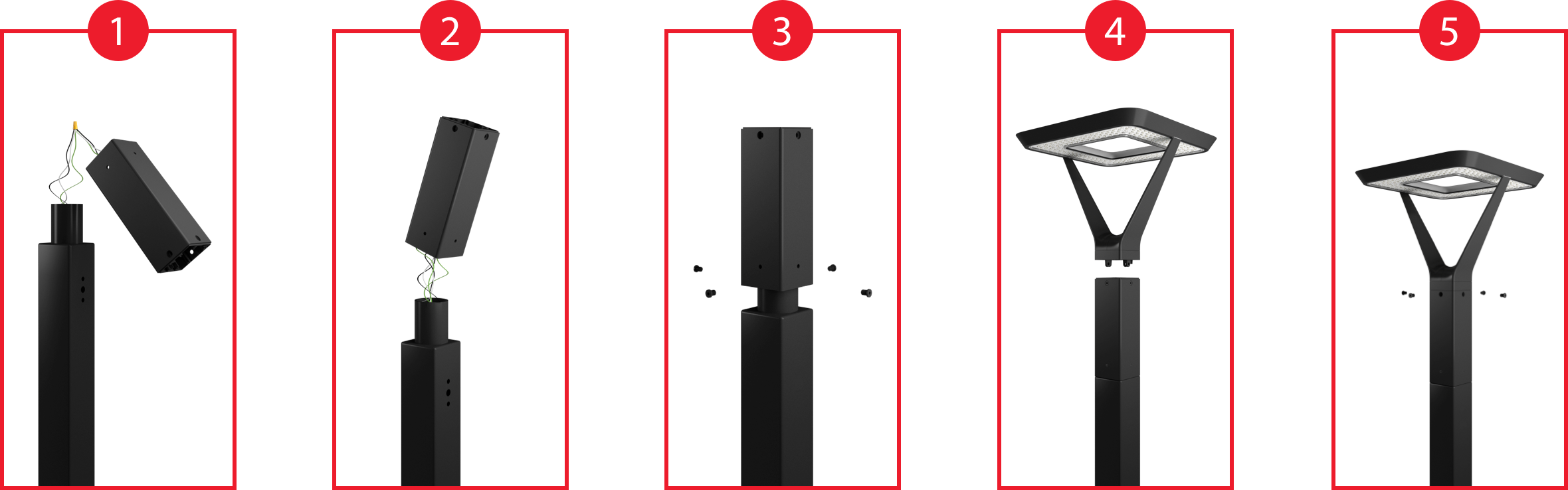

Installation that doesn't slow you down.
The AL5 slips onto a 2-3/8" tenon and is secured with set screws that are easy to tighten but tough to strip during install. The driver module uses a quick-connect system — drop it onto the tenon, slide the fixture on, and electrical connections happen simultaneously.
Additional Features
Industry-leading warranty.
The RAB 5-year, no-compromise warranty covers light output, color stability, driver performance, and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
100,000-Hour LED lifespan.
At 10 hours daily use, RAB LEDs are rated to last 27 years, dramatically reducing maintenance and relamping costs.
Big rebates.
This family of products has DLC Standard and DLC Premium listed models.
High voltage.
This family is available with options for use on 480V circuit for commercial and industrial installations.
Universal voltage.
This family is available with options for use on 120-277V circuit for residential, commercial, and industrial installations.
3G Vibration.
This family carries a 3G vibration rating, withstanding vibrations in high-movement environments such as bridges to protect electronic components from damage.
10kV Protection.
This family of products includes 10kV of builtin surge protection that is key for regions with frequent lightning strikes.
DarkSky.
This product has received the International DarkSky Association Fixture Seal of Approval for 3000K models.
Wireless networked control.
Select models are compatible Lightcloud Blue wireless lighting control systems.

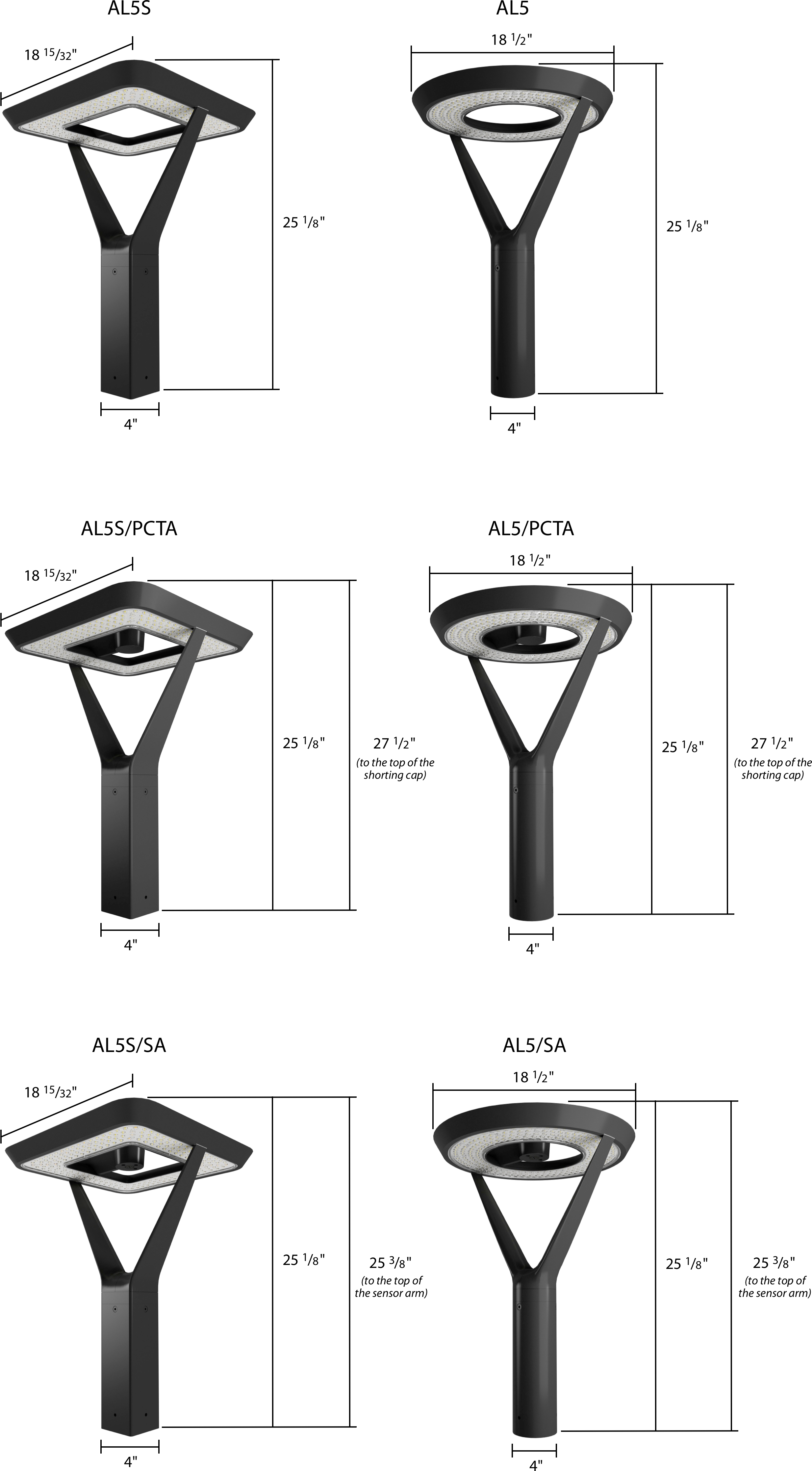

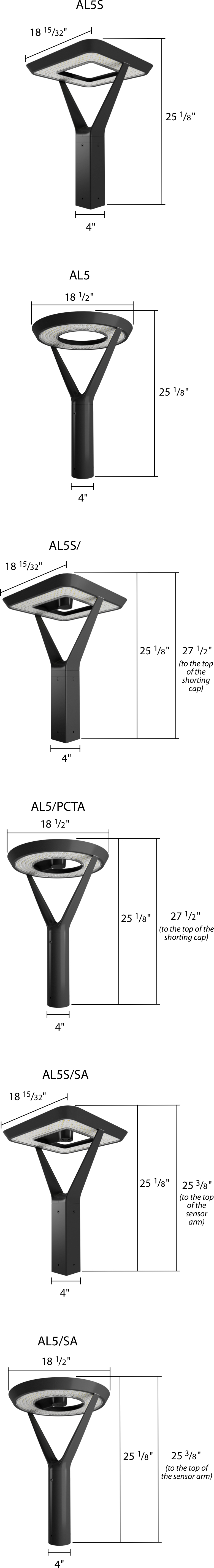

Dimensions
