Simplify your charging with the EVC32/40.
Plug-and-play, Level 2 electric vehicle chargers.
Simplify your charging with the EVC32/40.
Plug-and-play, Level 2 electric vehicle chargers.
Just plug it in.
The EVC32 and 40 are powerful, Level 2 electric vehicle chargers designed for plug-and-play use. No complicated set up, no unexpected costs, no commissioning, no software. Simply plug it in and start your high-speed charging!
Flexible, powerful, sustainable.
Suitable for both residential and commercial use, these EVCs are compatible with standard outlets (200 - 240V), deliver up to 9.6 kW of power, and use a NEMA 14-50 plug. May qualify for utility rebates, incentives, or tax credits in your area.
Safe connections for your vehicle.
• CCID20 leakage protection
• Over/under voltage protection
• Over current protection
• Ground fault protection
• Operating temperatures of -22°F to 131°F (-30°C to 55°C)
• Suitable for outdoor use: NEMA Type 4, IP65 rating
• Will function properly at altitudes up to 6500 ft
• Vandal resistant, IK08 rating
Designed for convenience.
Both models include a charging nozzle holder that can be wall mounted, a 23-foot cable for flexible charging location, and an LED indicator light on the charger for quick, simple, charging status checks.
Additional Features
3-Year, limited warranty.
The RAB 3-Year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
ETL.
This product has been tested by Interek and found in compliance with accepted national standards.
Energy Star V1.1.
This product is ENERGY STAR® Version 1.1 Certified and meets program requirements for Electric Vehicle Supply Equipment. Upgradable to Version 1.2.
FCC Compliant.
Complies with Part 15 of the FCC Rules.
Concierge Service.
All chargers are supported by a dedicated EV Concierge who provides live customer care.

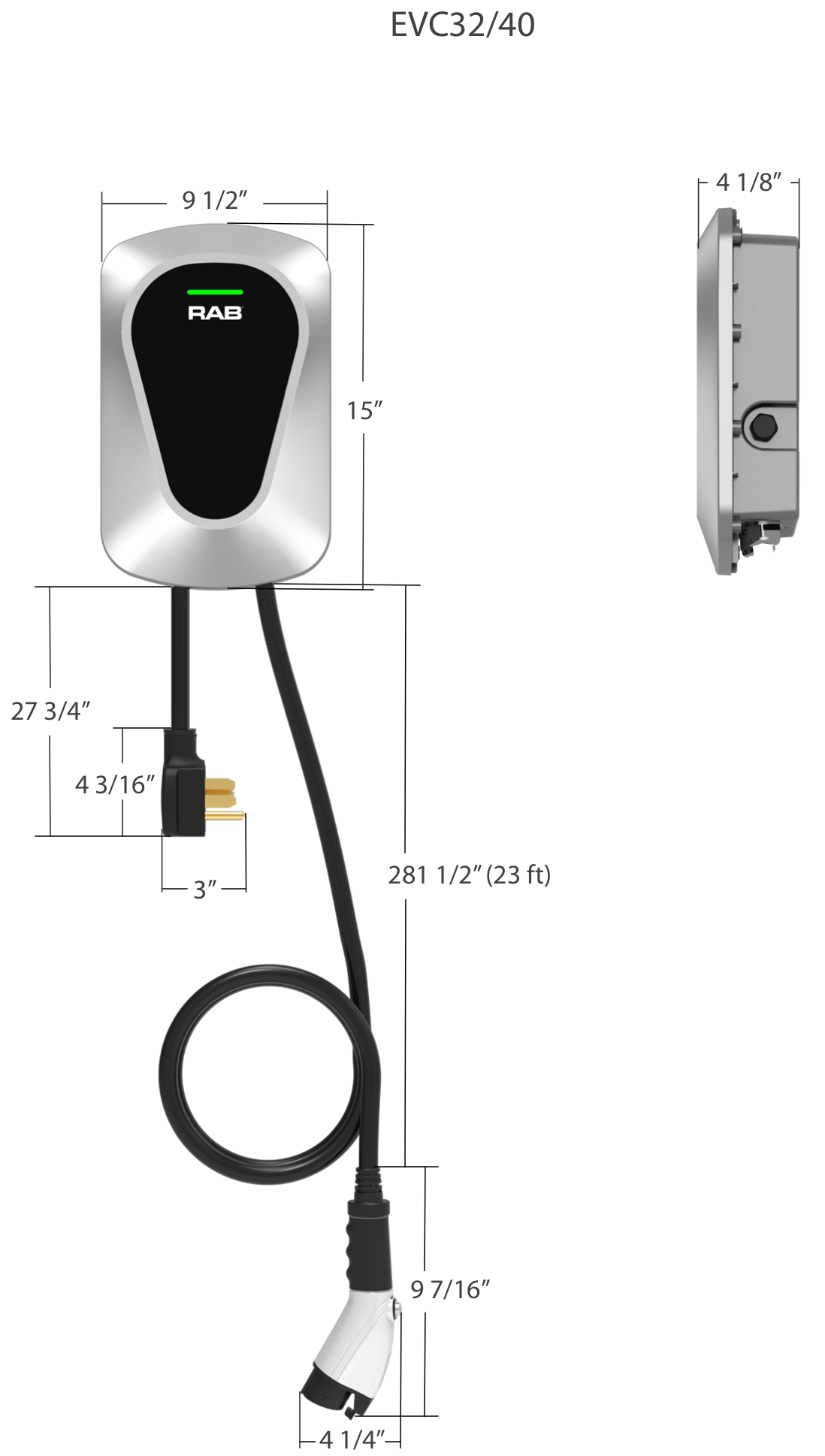

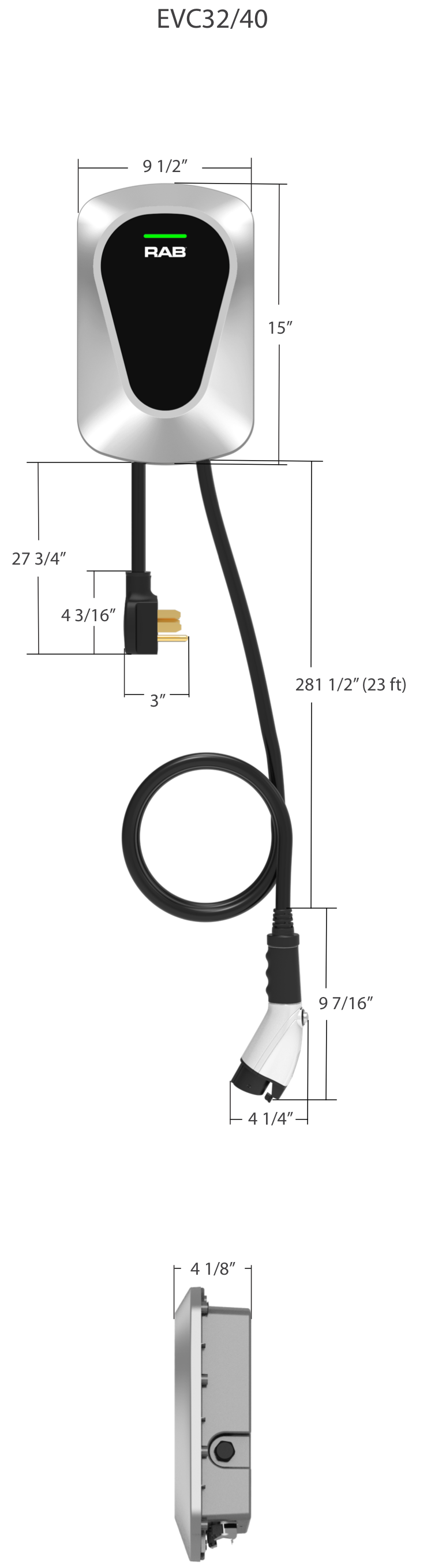

Dimensions
