H22 Field-Adjustable High Bay

Triple the control in your hands.

The H22 puts unprecedented control at your fingertips with three field-adjustable features. Select your ideal beam angle, wattage, and color temperature to perfectly match your space's requirements, all with the flick of a switch. No more compromising—just the right light, exactly where you need it.

Built for the toughest environments.

The H22 is engineered to excel in the most demanding environments, with NSF certification for food processing facilities and IP69K and IK10 ratings for superior protection. Its die-cast aluminum construction and UV-stabilized polycarbonate lens stand up to rigorous washdown conditions up to 1500 PSI. With operating temperatures up to 122°F, the H22 is built for demanding conditions.

Smart features, smarter installation.

The H22 features a plug-and-play sensor port for fast and simple controls integration. The family is compatible with both standard and smart occupancy sensors which can be used as part of our wireless Lightcloud Blue control system.

Microwave Sensor: MVS50
PIR Sensor: PIR40
Lightcloud Blue MVS Sensor: MVS50/LCB
Lightcloud Blue PIR Sensor: PIR40/LCB
Remote Control: MSR1

Customization has never been easier.

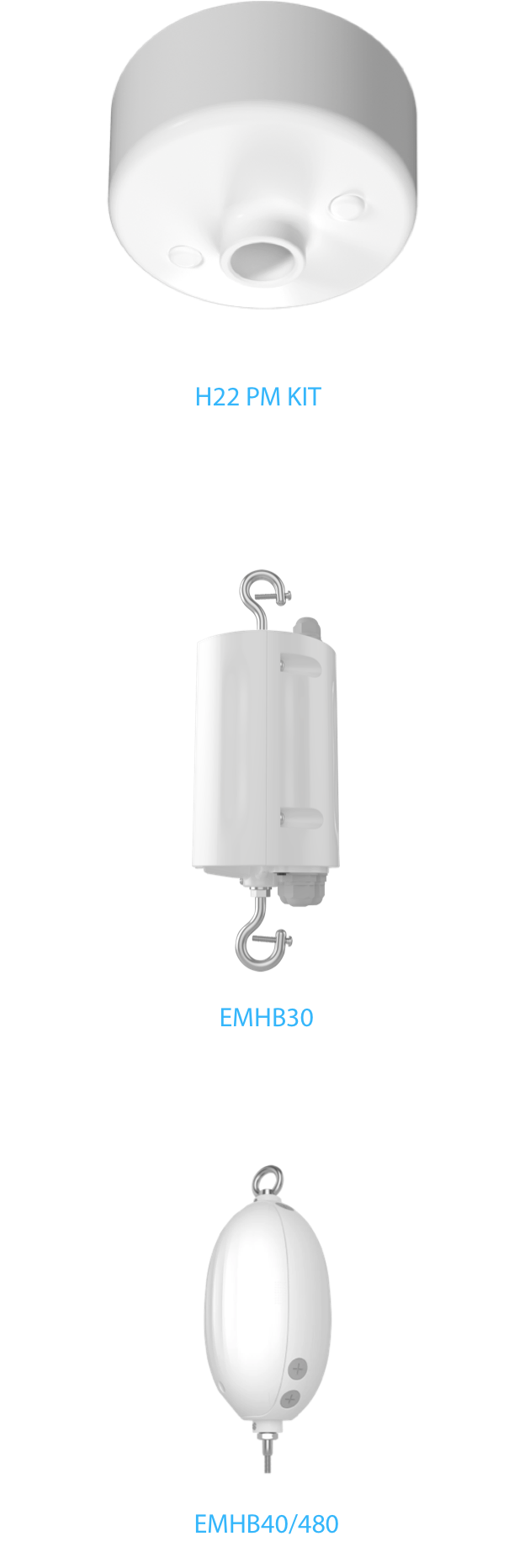

H22 features a standard hook mount for suspended installation but a pendant mount accessory kit is available for added installation versatility. An emergency battery backup solution is also offered.

Additional Features

5-Year, limited warranty.

The RAB 5-Year, limited warranty covers driver performance, product components, and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

100,000-Hour LED lifespan.

At 10 hours daily use, RAB LEDs are rated to last 27 years, dramatically reducing maintenance and relamping costs.

Big rebates.

This family of products is available in DLC Premium listed models.

High Voltage.

This family is available with options for use on 480V circuit for commercial and industrial installations.

Universal Voltage.

This family is available with options for use on 120-277V circuit for residential, commercial, and industrial installations.

Dimming.

Dimmable using compatible 0-10V dimmers; see Dimmer Compatibility List.

Ingress protection rating.

This family of products has options available with IP69K rating for protection against dust and high-pressure/high-temperature water jets.

Impact protection rating.

The fixture's IK10 rating indicates the highest level of impact resistance, making it extremely durable and vandal resistant.

NSF certified.

NSF certified for use in food-preparation facilities and meets strict standards for public health safety.

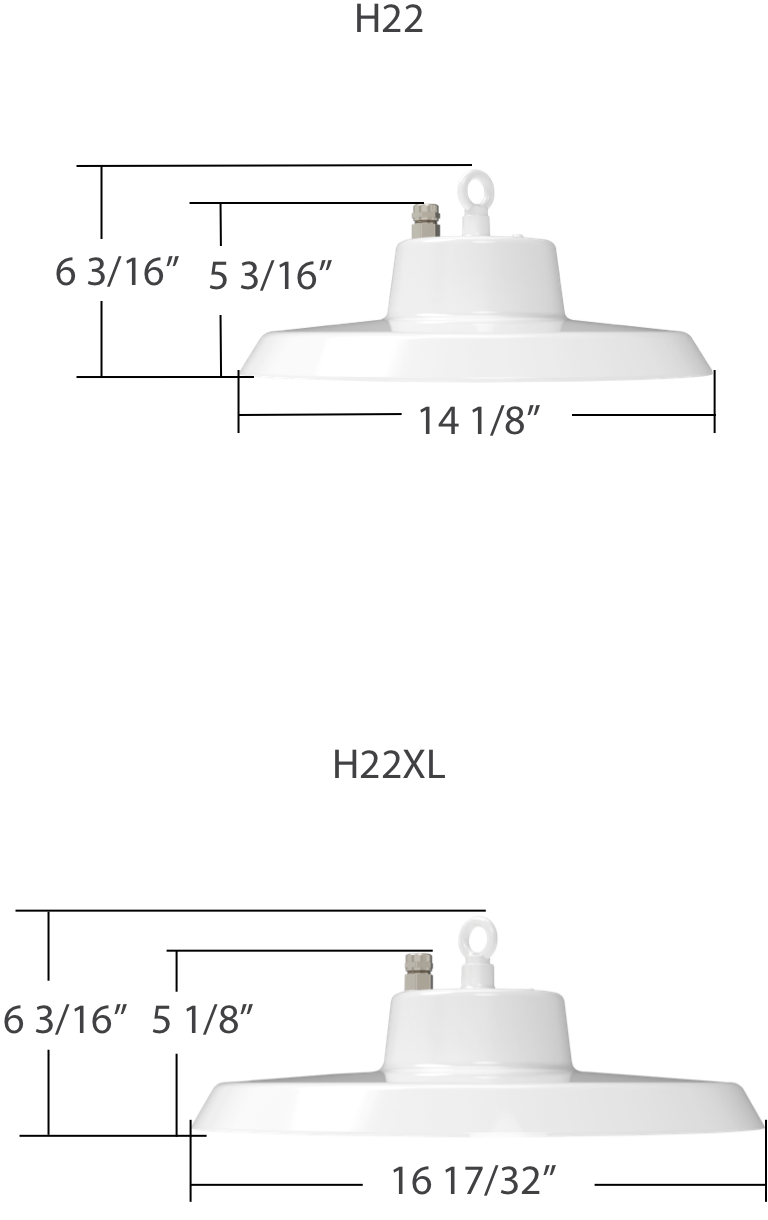

Dimensions
