HAZLED. Now with 80W and stanchion mount options.

Class I, Division 2 LED fixture for hazardous locations.


HAZLED®

LED Hazardous Location Lighting

Classification
NEC Class I, Division 2, Groups A, B, C and D.

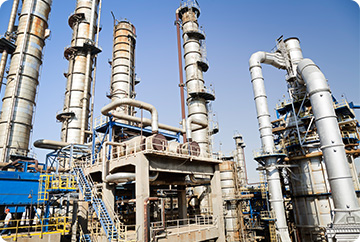

Class 1: A hazardous location in which flammable gases or vapors may be present in the air in sufficient quantities to be explosive or ignitable, such as petroleum refineries, aircraft hangars, dry cleaning plants, utility gas plants or storage areas for liquified petroleum or natural gas, and spray finishing areas.

Division 2
Abnormal condition, for example: Closed storage drums containing flammable liquids in an inside storage room would not normally allow the hazardous vapors to escape into the atmosphere. But if one of the containers is leaking, you've got an abnormal condition.

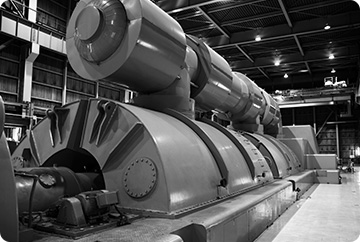

Groups
The gases and vapors of Class I locations are broken into four groups by the Code: A, B, C, and D. These materials are grouped according to the ignition temperature of the substance, its explosion pressure, and other flammable characteristics.
Group A: The only substance in Group A is acetylene because it is a gas with extremely high explosion pressures.
Group B: This group includes hydrogen and other materials with similar characteristics.
Group C & D: The most usual Class I groups. They comprise the greatest percentage of all Class I hazardous locations. Found in Group D are many of the most common flammable substances such as butane, gasoline, natural gas and propane.

T-code temperature rating.

LED lighting runs much cooler than equivalent incandescent and metal halide fixtures. The 26W model has a T3C rating; 42W and 80W models have a T2B rating.

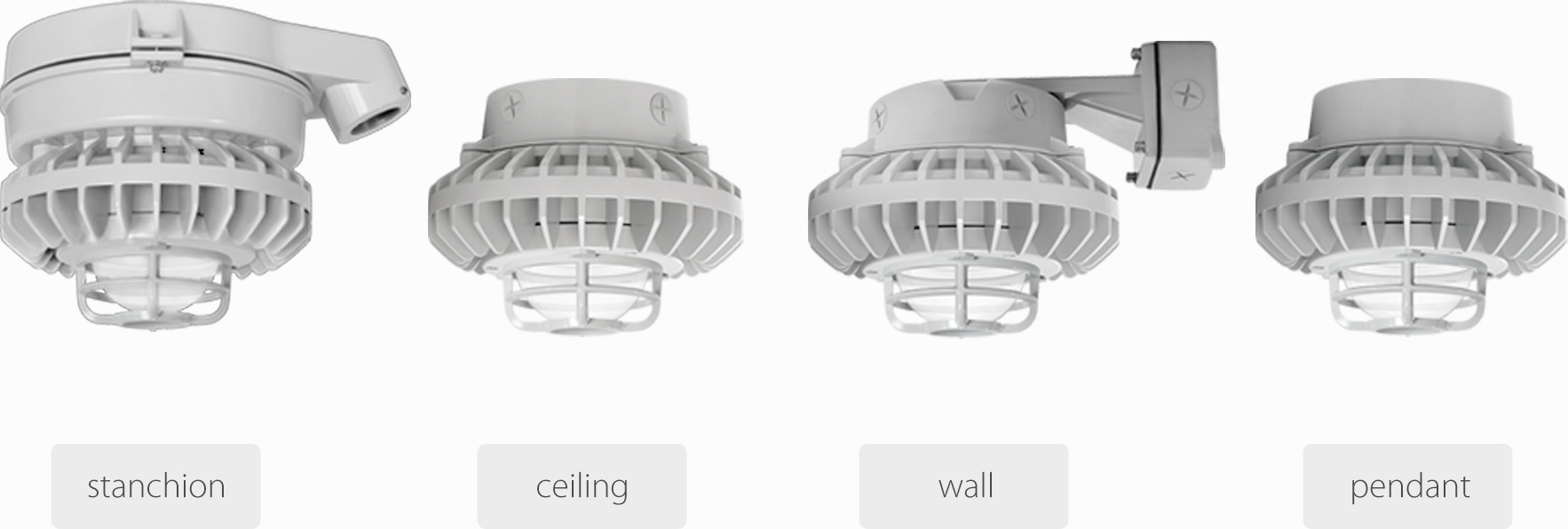

Plenty of options

HAZLED is available as a stanchion, ceiling, wall or pendant mount fixture.

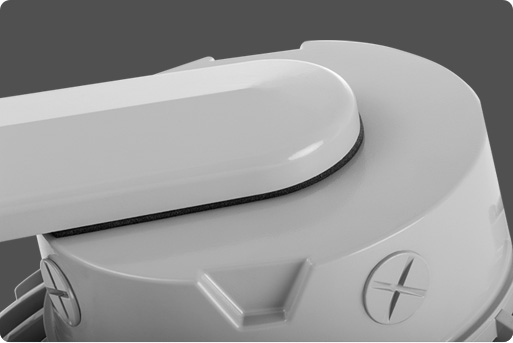

Rugged build for safe operation.

The HAZLED closed cell silicone gasket is rated at < 10% compression set at up to 500° F, for thermal stability over a wide temperature range.

Resistant to shock and vibration.

The rugged construction of HAZLED is resistant to shock and vibrations, ensuring long-life and safe operation.

Complete protection.

No ingress of dust; complete protection against contact (dust tight), and no ingress of water projected in powerful jets from any direction.

100,000 hour LED lifespan.

At 10 hours daily use, RAB LEDs are rated to last 27 years, dramatically reducing maintenance and re-lamping costs.

5 year warranty.

The RAB 5-year, no-compromise warranty covers light output, color stability, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
