More options, same incredible energy savings and price.

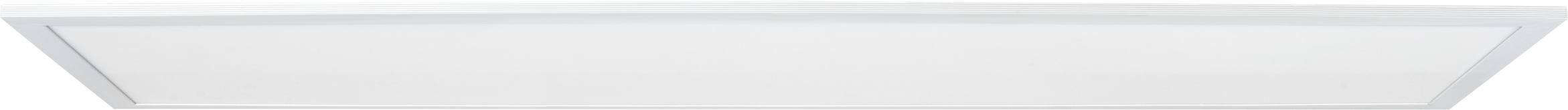

The affordable, ultra-low-profile LED panel is available in 2’x2’, 2’x4’ and now 1’x4’.
EZPAN®
Ordering Matrix
More options, same incredible energy savings and price.
The affordable, ultra-low-profile LED panel is available in 2’x2’, 2’x4’ and now 1’x4’.
EZPAN with SmartShift™
SmartShift is a circadian lighting system that tunes itself to match the natural patterns of daylight and helps our bodies get back in sync.
Where the
smart money is.
EZPANs are now available with a hidden, factory-installed occupancy sensor, for multi-level lighting control that can drastically reduce energy costs. The programmable sensor has standby levels that can be pre-set to 10, 20, 30 or 50% dimming.
It's OK to be shallow.
With a height just under 2", the EZPAN family is an ideal solution for shallow plenums.
Installs are a cinch.
An NEC-compliant junction box with flying leads makes wiring as simple as a few wire nuts, and integral T-bar clips secure EZPAN to standard T-bar systems.
Maximized versatility.
The EZPAN is available in three standard sizes (1x4, 2x2 and 2x4) for use in T-bar grids. We also offer three mounting kits for surface, pendant, and recessed applications.

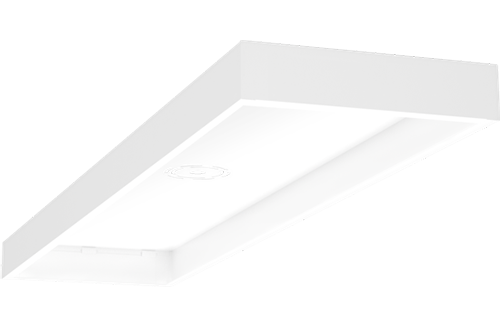

Surface

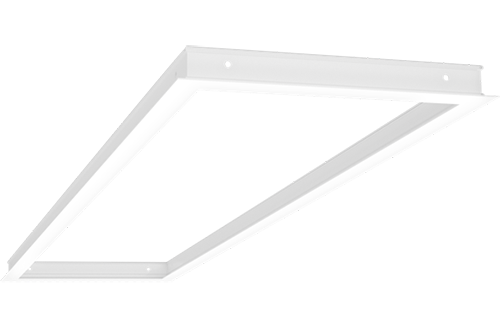

Recessed

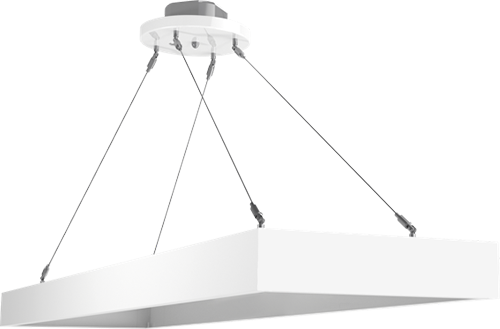

Pendant
Easy on the eyes.
Diffused cover window ambient illumination that's ideal for spaces where glare-free lighting is essential.
Industry-leading performance.
With efficacies up to 140 lm/W, EZPAN exceeds even standard DLC requirements for LED panels.
Stay in control.

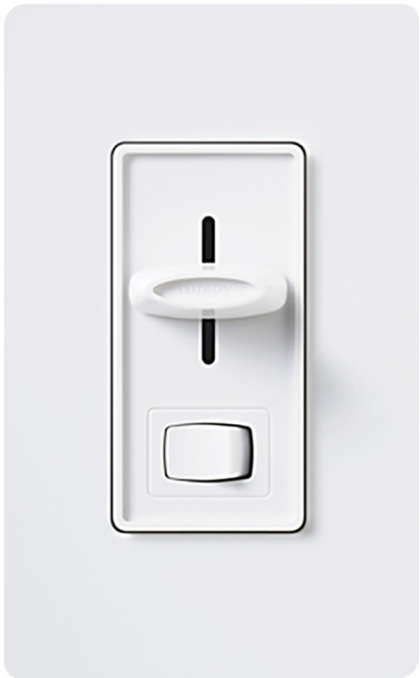

EZPAN comes standard with 0-10V dimming driver for your complete control of your lighting scene.
Get fast payback.
With annual energy savings of up to $515, combined with the reduced maintenance cost that comes with installing LED, the EZPAN can pay for itself in less than two years.
Big rebates.
For more savings with utility rebates, EZPAN is available in DLC-approved models.
CCEA compliant.
Chicago Plenum (CCEA) compliant options available.
5-year warranty.
The RAB 5-year, no-compromise warranty covers light output, color stability, driver performance, paint finish and labor. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Just call for back up.
EZPAN models are available with battery backup for standby lighting in the event of power failure.
Long lifespan.
At 10 hours daily use, standard EZPAN models have a lifespan of 60,000 hours and models with integrated SmartShift control are rated for 75,000 hours.

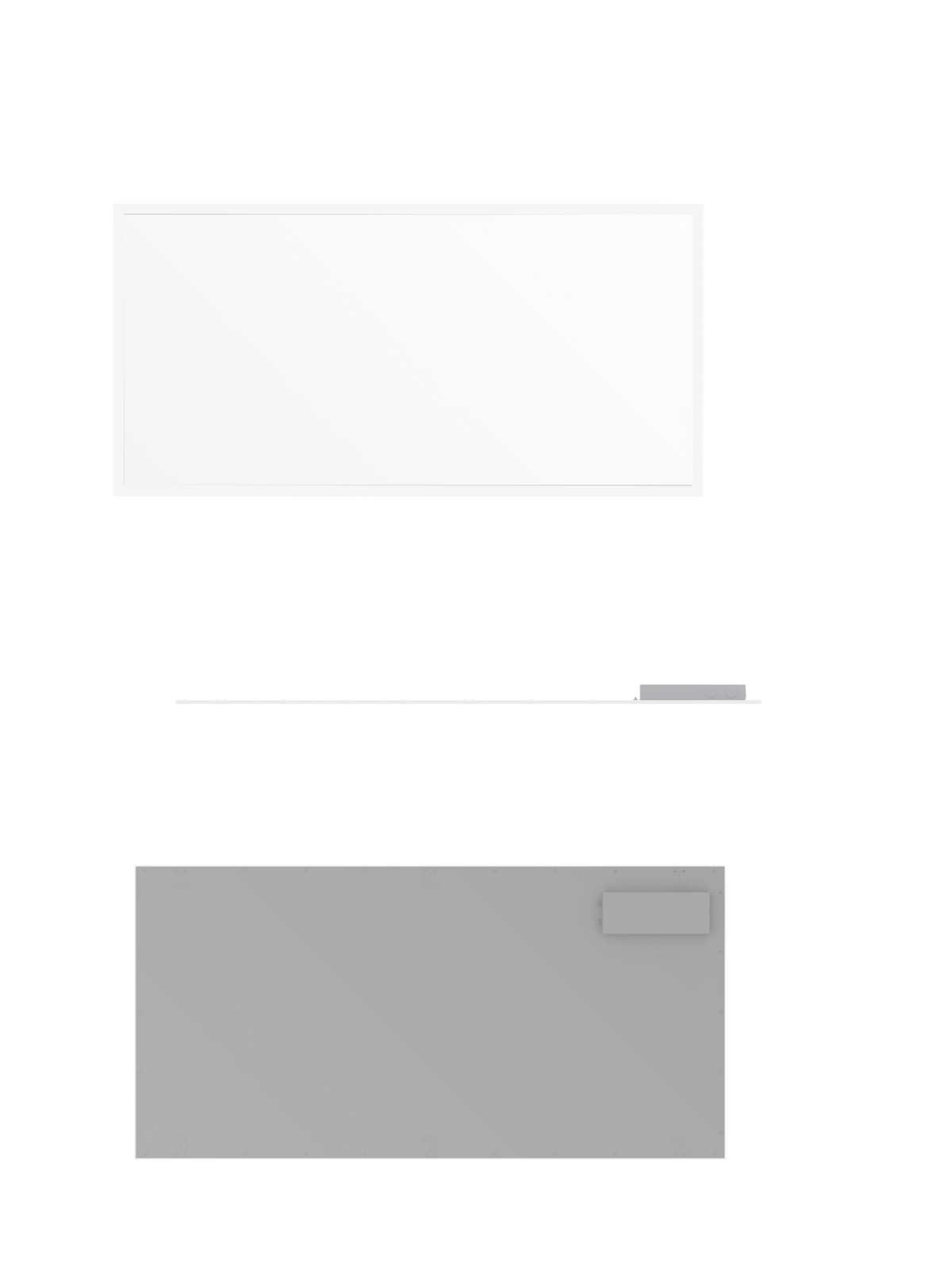

EZPAN 2x4 Weights
Standard: 13.4 lbs
Smartshift: 10.6 lbs

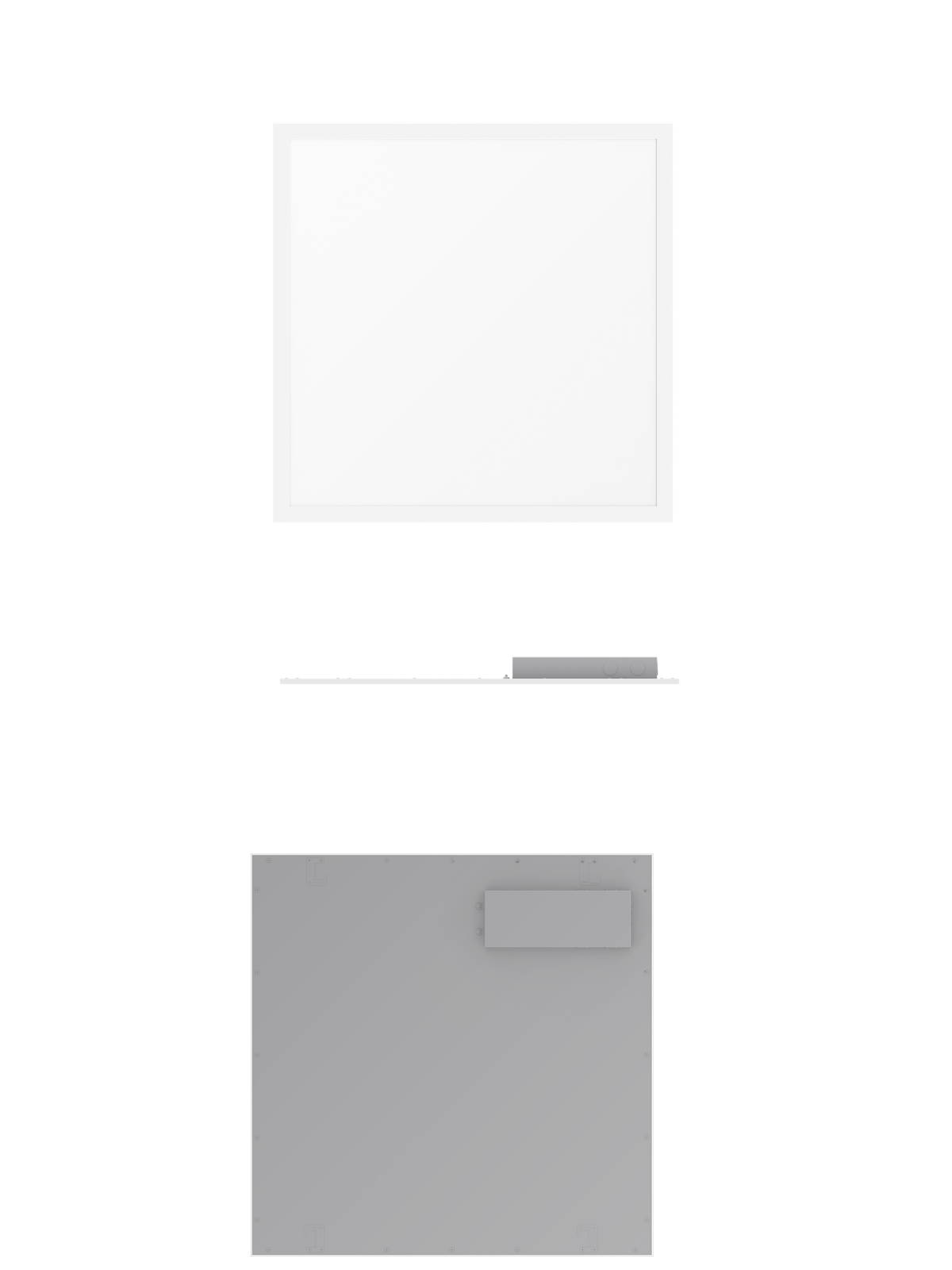

EZPAN 2x2 Weights
Standard: 7.1 lbs
SmartShift: 6.2 lbs

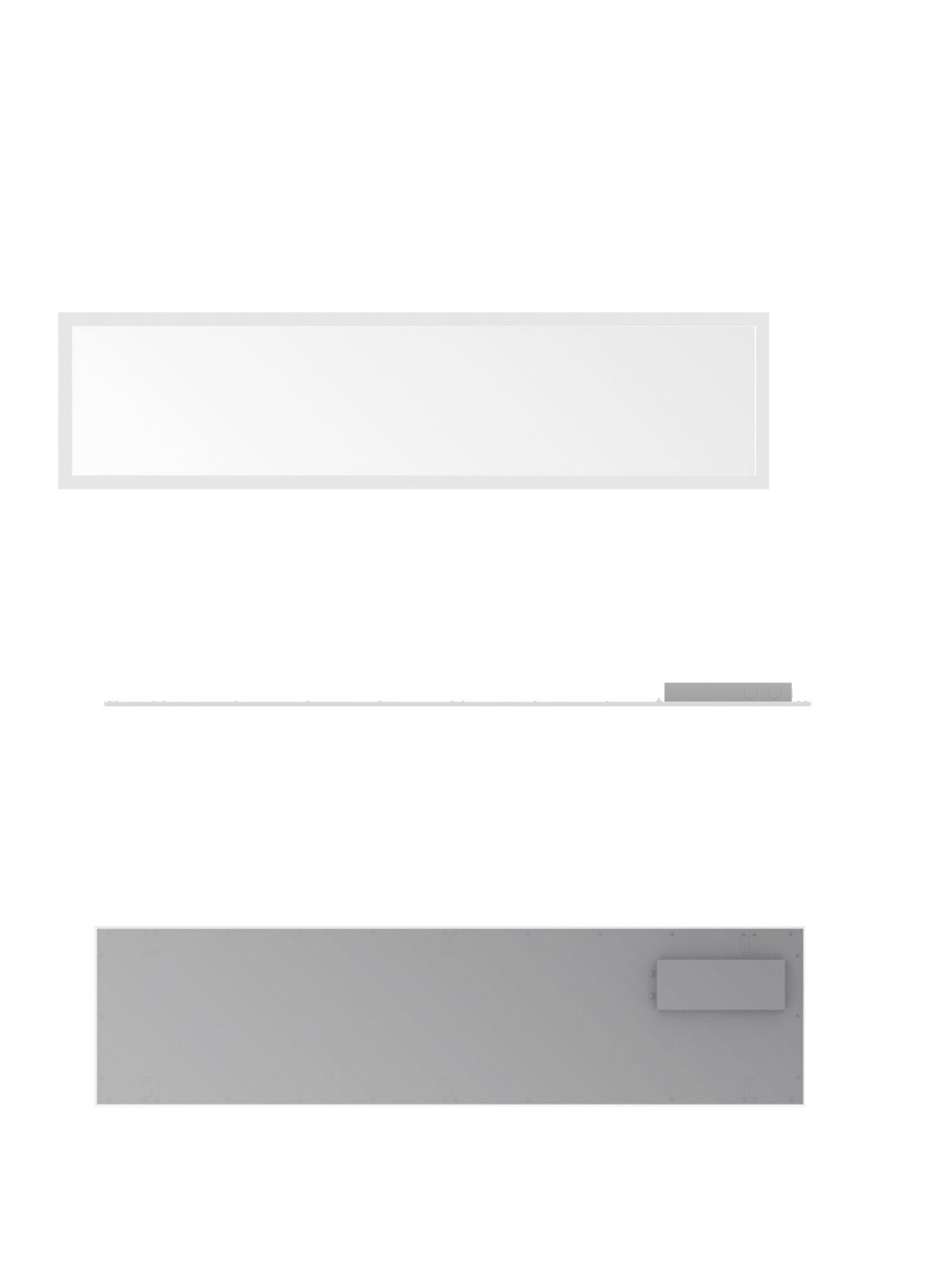

EZPAN 1x4 Weights
Standard: 8 lbs
SmartShiftt: 6.2 lbs
Mounting Accessory Kits
Surface
SMKEZPAN2X2 - 2'X2' Surface Mount Kit
SMKEZPAN2X4 - 2'X4' Surface Mount Kit
SMKEZPAN1X4 - 1'X4' Surface Mount Kit
Pendant
PMKEZPAN2X2 - 2'X2' Pendant Mount Kit
PMKEZPAN2X4 - 2'X4' Pendant Mount Kit
PMKEZPAN1X4 - 1'X4' Pendant Mount Kit
Recessed Drywall
RMKPANEL2X2 - 2'X2' Recessed Mount Kit
RMKPANEL2X4 - 2'X4' Recessed Mount Kit
RMKPANEL1X4 - 1'X4' Recessed Mount Kit
