Orb Downlights

Light without borders…The ORB.

Eliminate visible edges with 180° of trimless light.

Product CSV Sell Sheet Folleto (Español) Family Spec Sheet Instructions

180° Illumination.

Unlike a standard downlight, which only projects light downward, the ORB’s unique design delivers diffuse, uniform light both down and outward an entire 180°, creating a “borderless” lighting experience.

Install it anywhere!

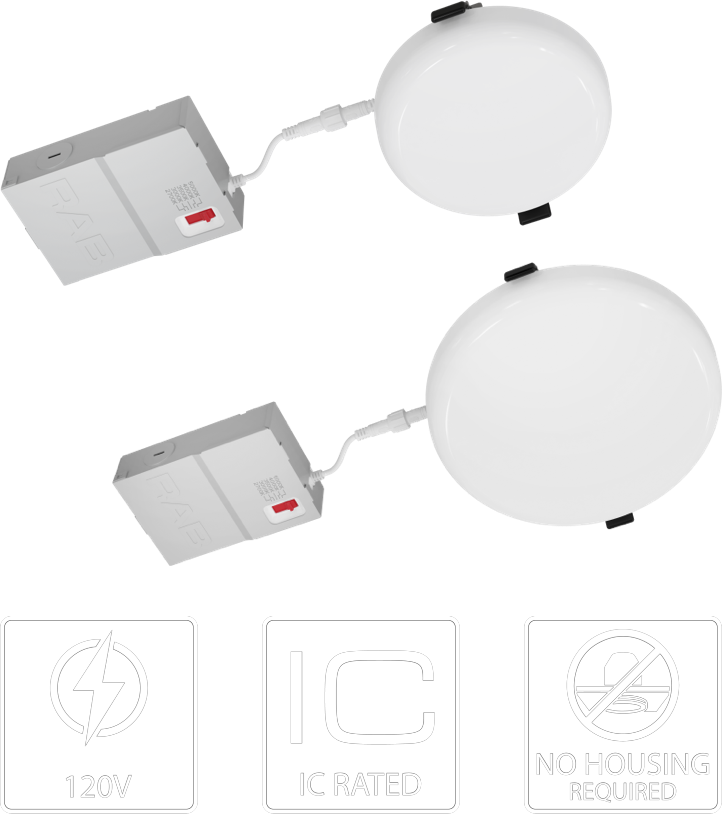

The ORB is flexible enough for retrofit, remodeling, or new construction applications and is IC rated for direct contact with insulation—no housing or j-box required! Just cut your hole, wire the driver, and secure the ORB with the torsion springs.

Available in 4” and 6” models, it’s designed for 120V use and includes TRIAC/ELV dimming down to 10%.

High performance without the high price.

All models of the ORB include 5 selectable CCTs and deliver 90 CRI for accurate color rendering.

Additional Features

5-Year, no-compromise warranty.

The RAB 5-Year, no-compromise warranty covers light output, driver performance, paint finish and labor. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

50,000-Hour LED lifespan.

At 10 hours daily use, RAB LEDs are rated to last 13 years, dramatically reducing maintenance and relamping costs.

Title 24.

Can be used to comply with 2022 Title 24 Part 6 high-efficacy LED light source requirements.

Airtight.

Housing certified AirTight as per ASTM E283.

Color rendering index.

90 CRI provides accurate color rendering making them ideal for applications where color is critical.

Voltage.

Designed for residential use.

Dimming compatibility.

Dimmable down to 10% on compatibile dimmers.

IC rated.

Suitable for direct contact with insulation.

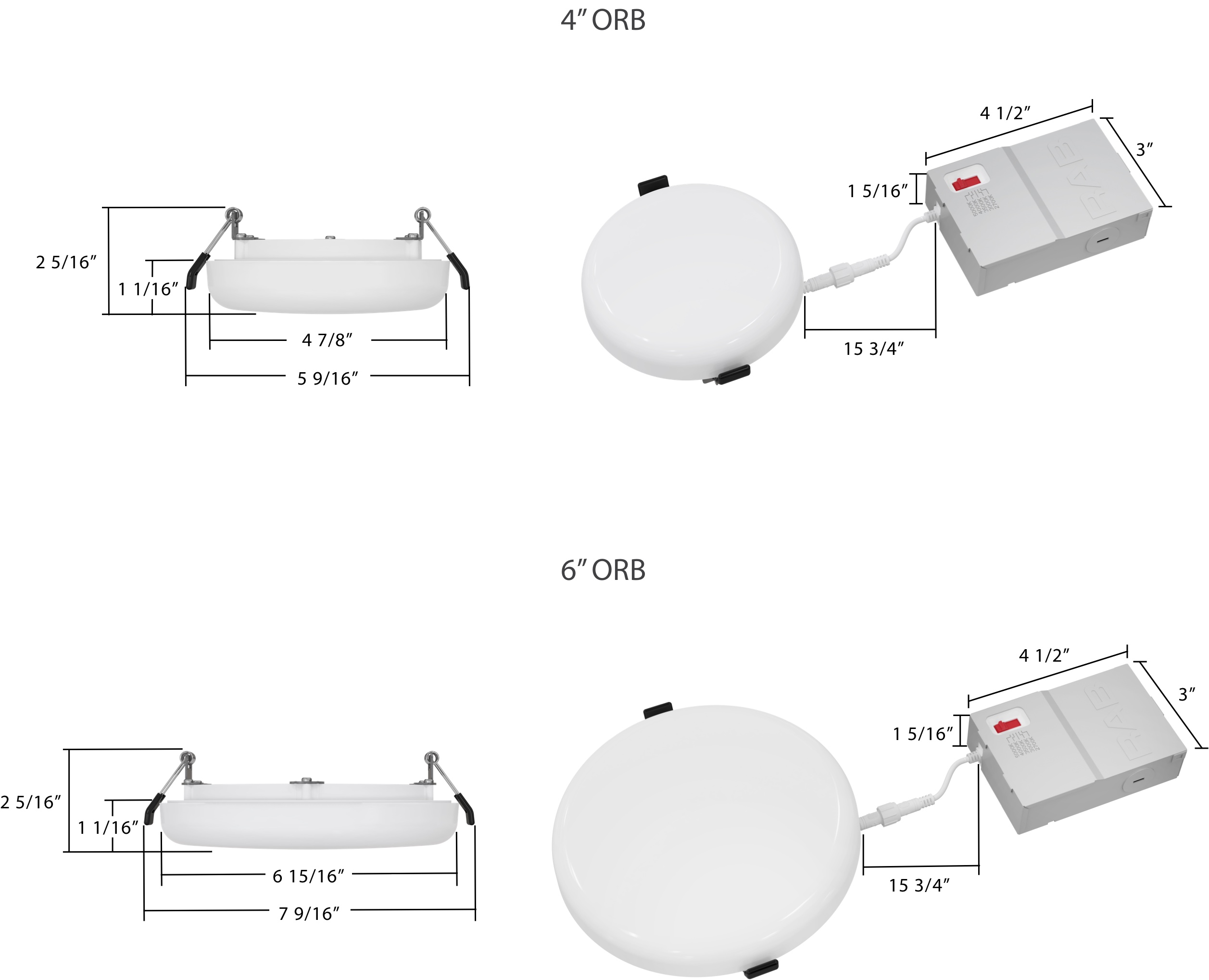

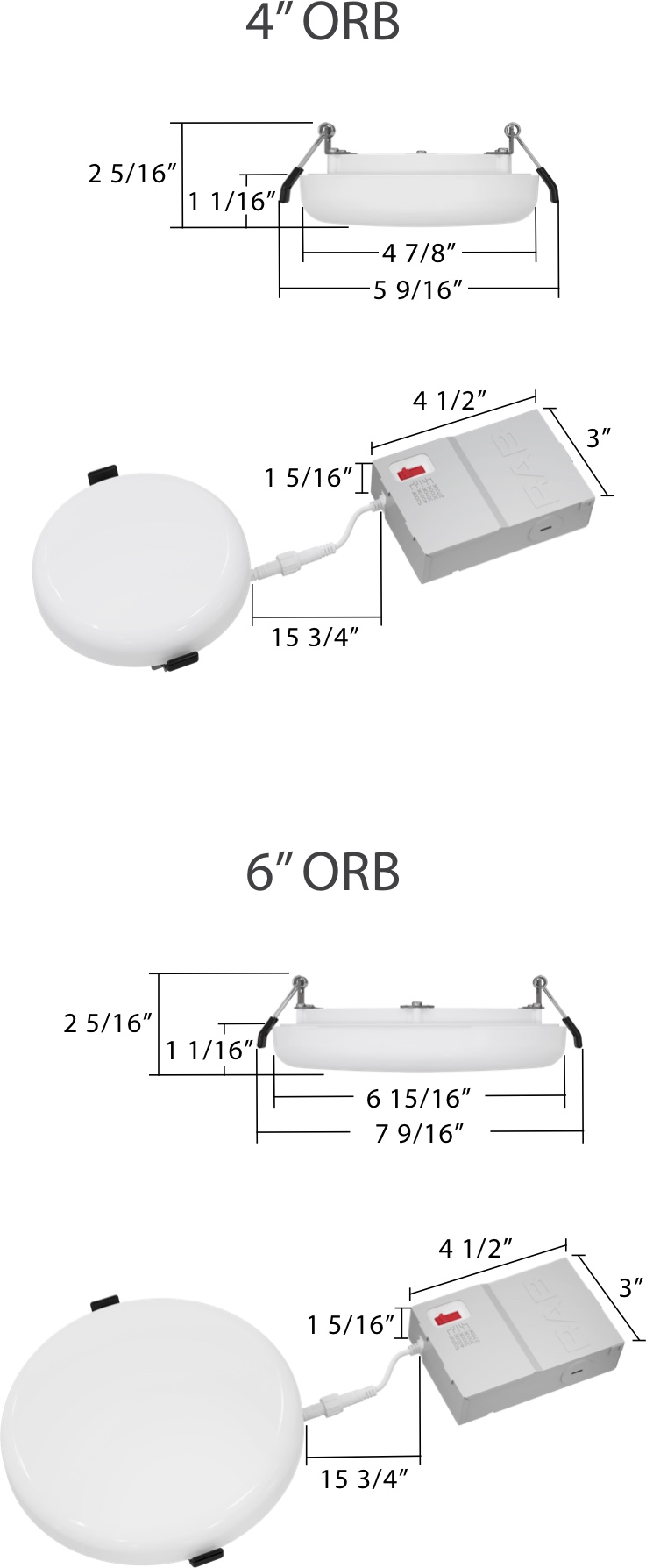

Dimensions

180° Illumination.

Install it anywhere!

High performance without the high price.

All models of the ORB include 5 selectable CCTs and deliver 90 CRI for accurate color rendering.
