Plug in to upgrade and save.

Smart lamp sensors control lighting and energy savings.


The tradition continues.

It has never been easier to upgrade outdated HID applications. RAB smart sensors let you customize and control LED lighting, while reducing energy bills and qualifying you for additional rebate dollars. Simply plug in the sensor to the top of the lamp and watch the savings roll in.

The WHAT of smart sensing.

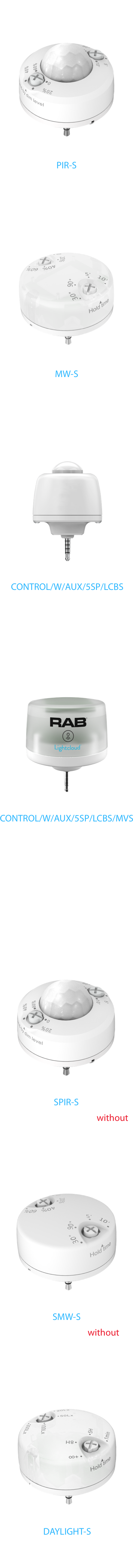

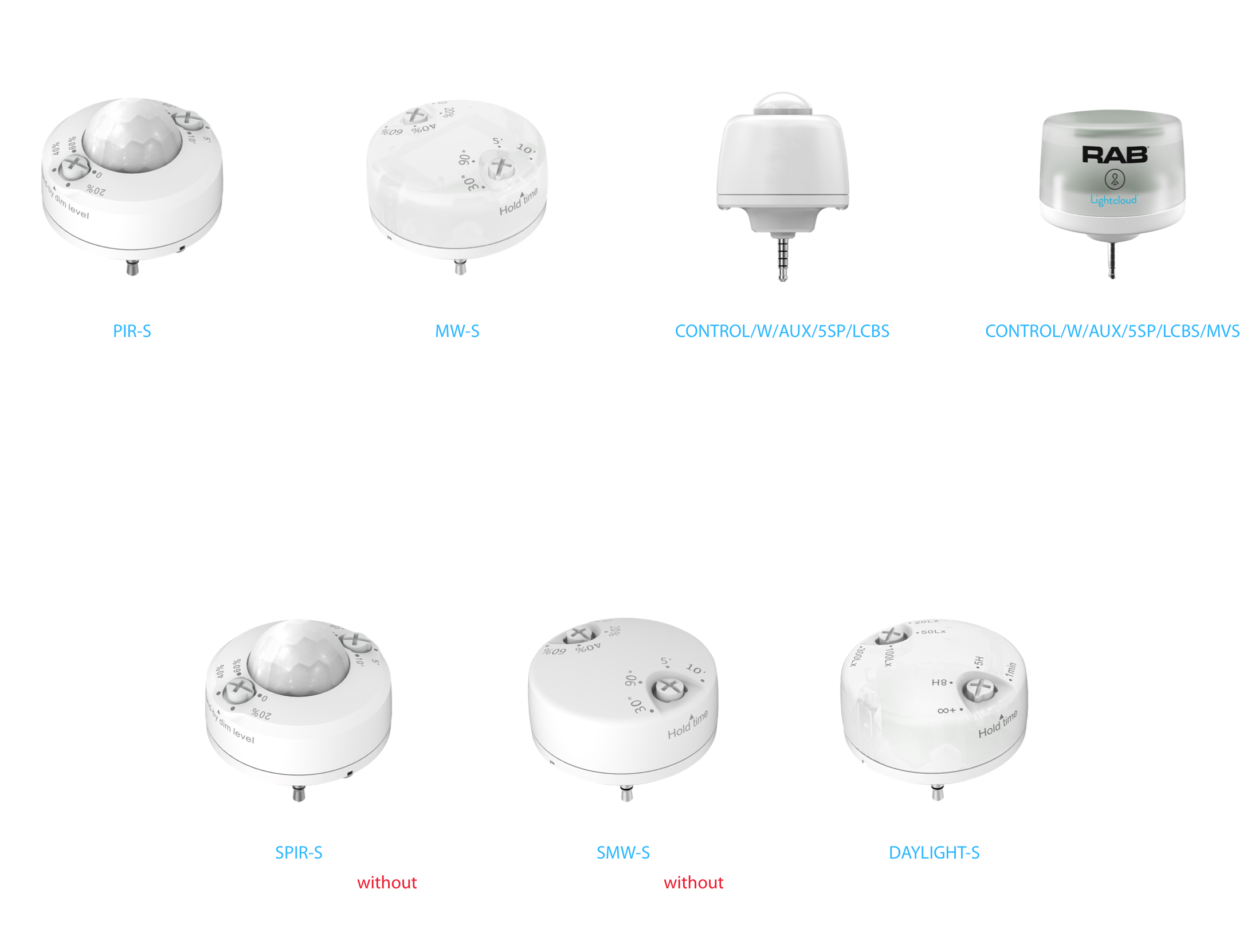

RAB carries 5 different smart sensors that can be used with select HID replacement lamps. Whether you need occupancy sensing, daylight harvesting, or both, we have a solution.

Occupancy sensing

RAB carries both microwave and PIR (passive infrared) occupancy sensors, to make smart choices a breeze. Regardless of your application, your detection needs or the size of your space...we've got it covered.

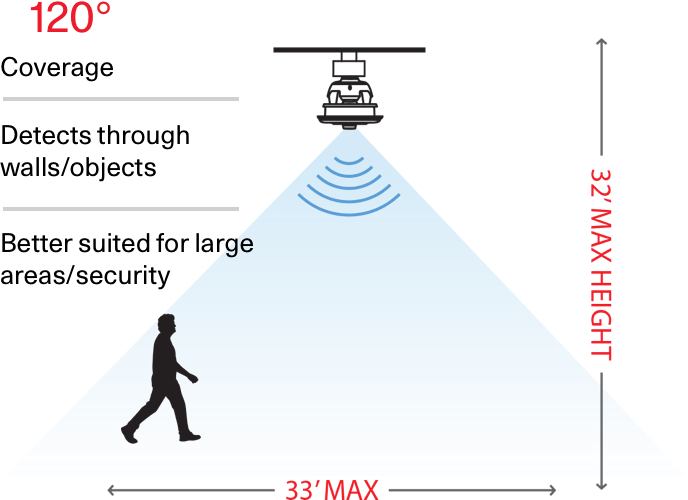

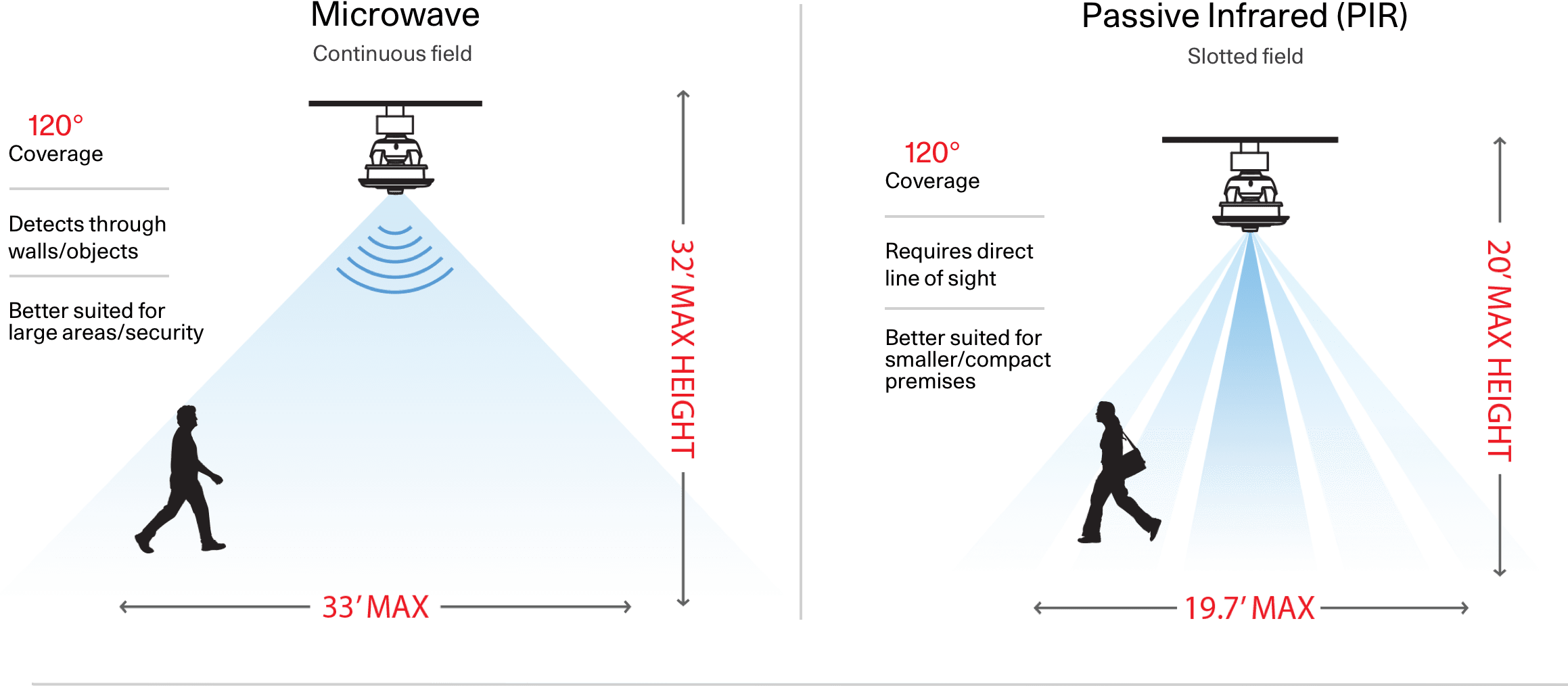

Mirowave

Continuous field

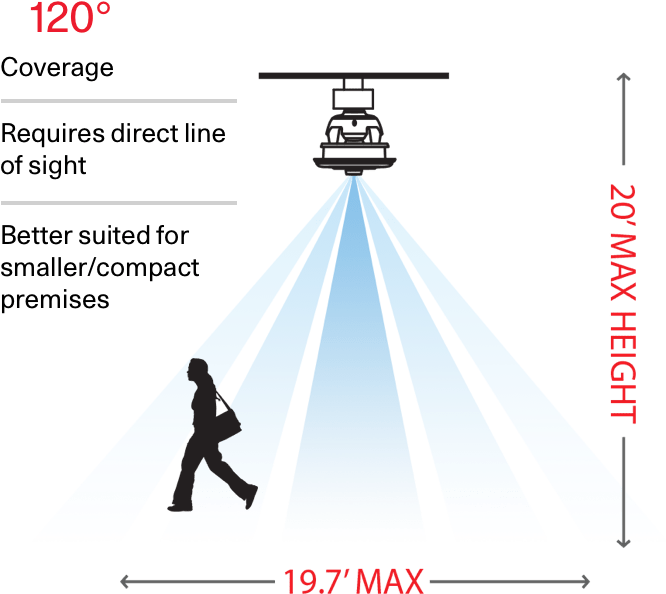

Passive Infrared (PIR)

Slotted field

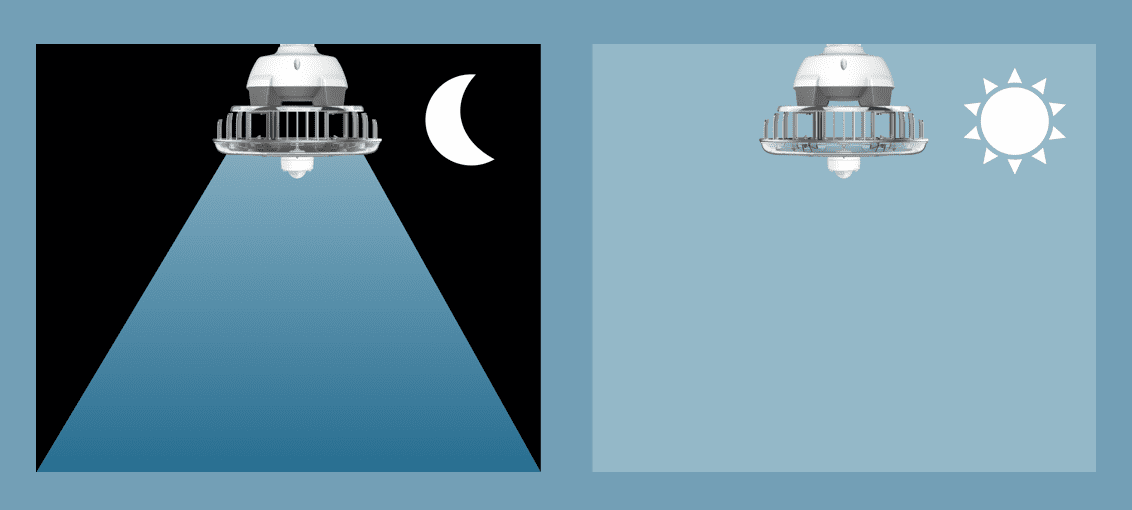

Daylight harvesting

Cut your utility bill with RAB's daylight harvesters. Sensors with this feature will dim or shut off electric lighting when there is sufficient sunlight available to achieve your desired lighting level.

Set it and forget it.

Did we mention that it’s easy? Simply adjust the knobs on the top of the sensor to your desired parameters, plug it into the lamp, install it, and you're done in minutes!

Occupancy sensors allow you to adjust brightness and hold time, and daylight sensors allow you to adjust the lux light detection level. Dual-purpose sensors have a fixed lux level detection setting.

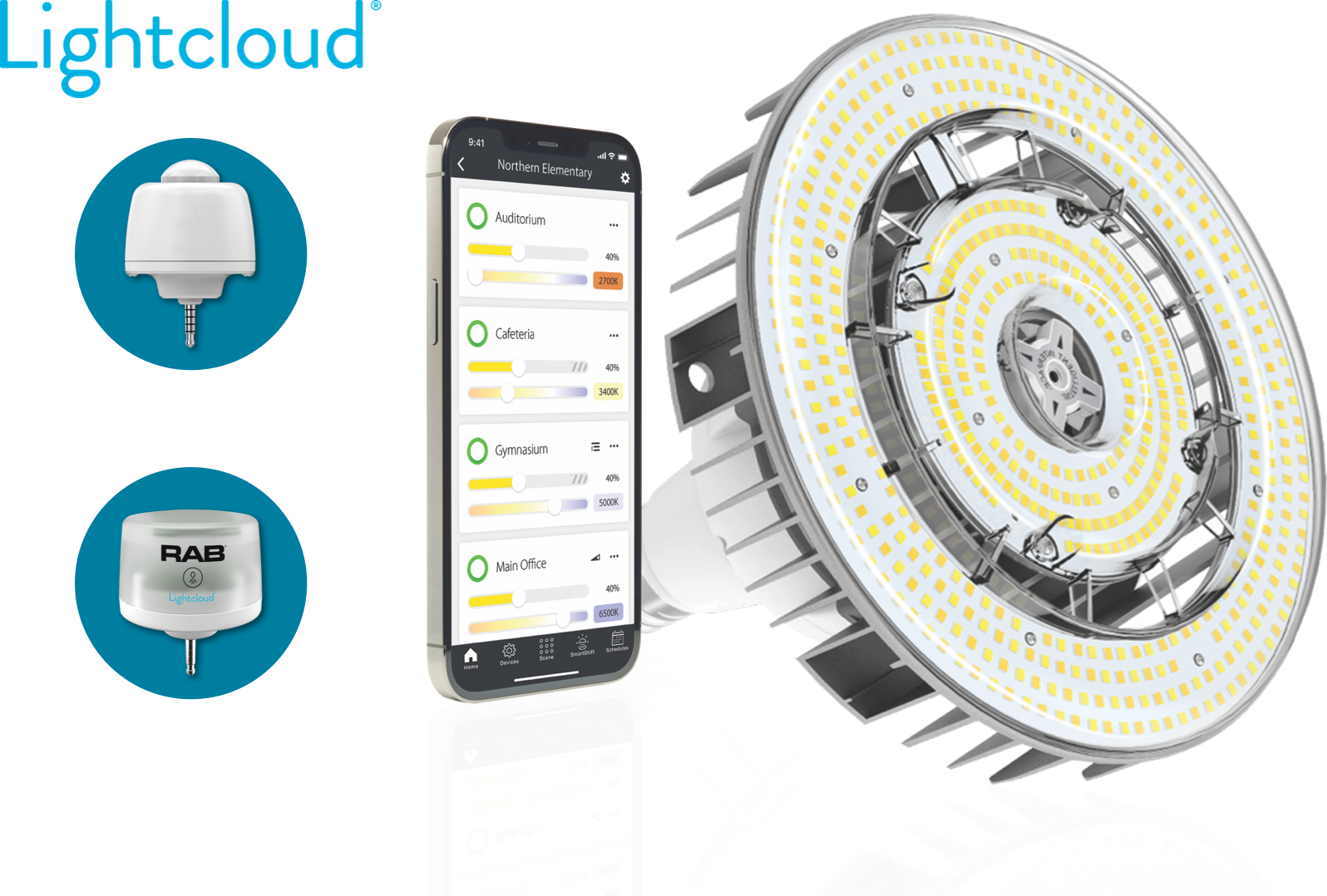

Compatible products


HID High Bay (G2)
______________________________________

400W MH
HID-115-V-EX39-8XX-BYP-HB-G2

250W MH
HID-80-V-EX39-8XX-BYP-HB-G2

200W MH
HID-60-V-EX39-8XX-BYP-HB-G2

HID Post Top (G2)
______________________________________

600W MH
HID-120-EX39-8XX-BYP-PT-G2

400W MH
HID-100-EX39-8XX-BYP-PT-G2

320W MH
HID-80-EX39-8XX-BYP-PT-G2

5 year no-compromise warranty.

The RAB 5-year, no-compromise warranty covers light output, color stability, driver performance and paint finish. RAB’s warranty is subject to all terms and conditions found at rablighting.com/warranty.

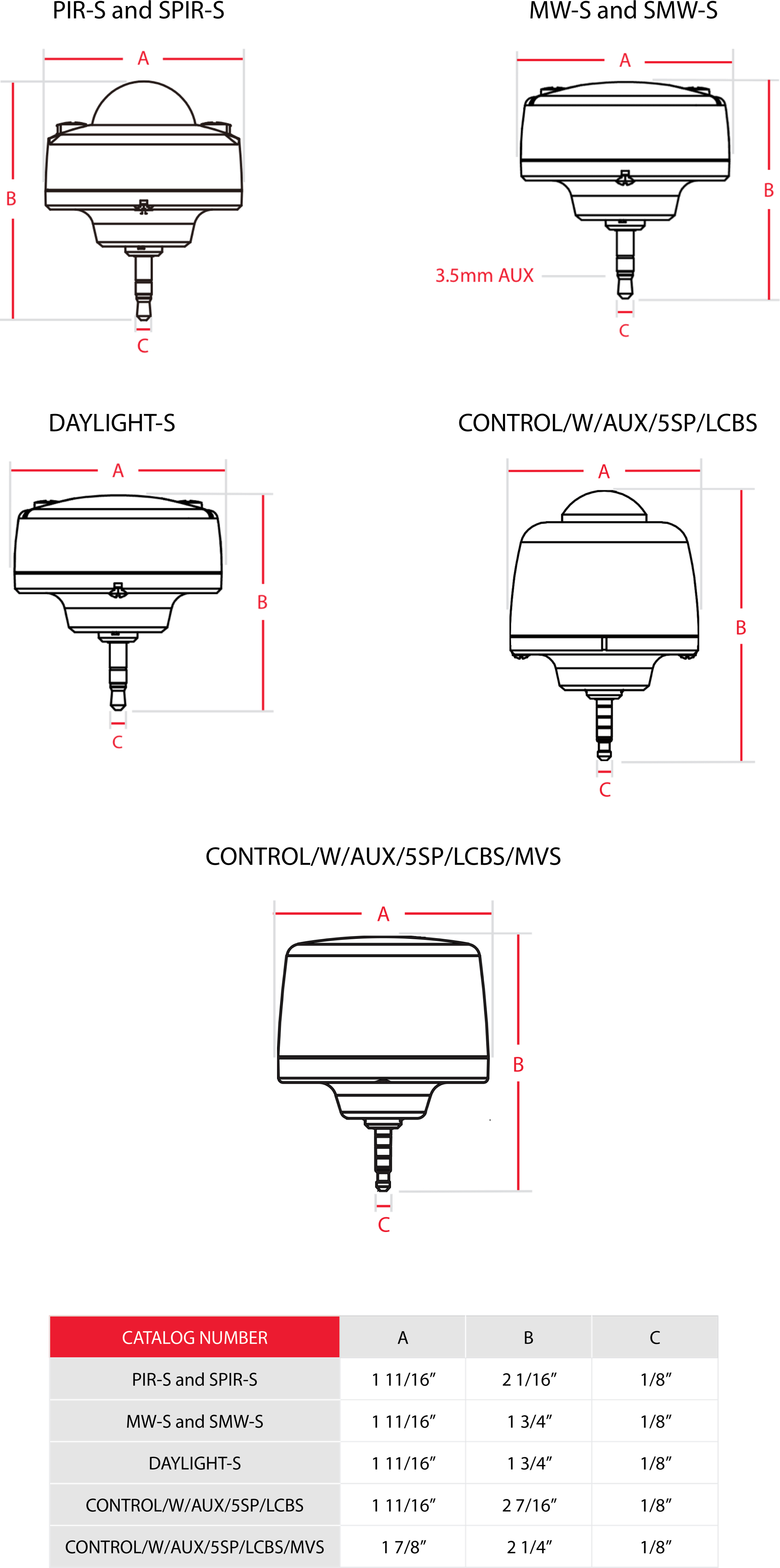

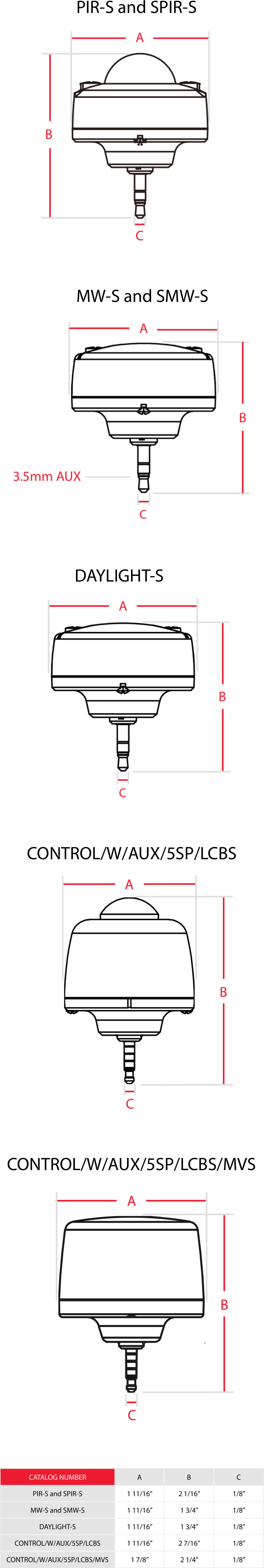

Dimensions


PIR-S & SPIR-S


MW-S & SMW-S


DAYLIGHT-S
