T34, now with tunable CCT and SmartShift!
Ultra-economy, backlit panels with circadian control.
T34, now with tunable CCT and SmartShift!
Ultra-economy, backlit panels with circadian control.
We’ve brought circadian lighting to our ultra-economy panels!
The T34 FA is available in three formats, all with tunable CCT and SmartShift capability. Once installed alongside a Lightcloud Blue control system, it can automatically tune the CCT and intensity of your lights throughout the day, syncing with the natural cycles of daylight.
Take energy savings to the next level.
The T34 FA is also available in high-efficacy models for additional cost savings. With efficacies of up to 148 lm/W, the T34 FAHE exceeds DLC Premium requirements for LED panels.
Tight spaces?
No problem.
The T34 FA's low-profile design is IC rated for direct contact with ceiling insulation, and is also Chicago Plenum (CCEA) compliant. Integral earthquake clips secure the panel to T-bars and won't get lost during installation.
Seeing is believing.
A lightweight, frosted, polystyrene lens diffuses light, making the T34 FA and T34 FAHE ideal for areas that require uniform, glare-free distribution.
Versatile mounting.
The T34 FA and FAHE are designed for use in recessed ceilings but can also be mounted directly to drywall with one of our surface mounting kits.
Maximized energy savings.
The T34 is available with an integrated, LCB-enabled microwave or passive infrared occupancy sensor, both of which also include closed-loop daylight harvesting. Models with either of these sensors can serve as Luminaire Level Lighting Controls (LLLC), qualifying the T34 for more significant utility rebates.
Additional Features
5-year limited warranty.
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Dimmable.
Driver includes dimming control wiring for 0-10V dimming systems.
50,000-hour LED lifespan.
At 10 hours daily use, RAB LEDs are rated to last 13 years, dramatically reducing maintenance and re-lamping costs.
CCEA compliant.
All models are compliant with electrical code specification for the city of Chicago.
Big rebates.
The T34 FA is available in DLC approved models and T34 FAHE is available in DLC Premium models.
Battery backup.
Available with emergency battery backup.

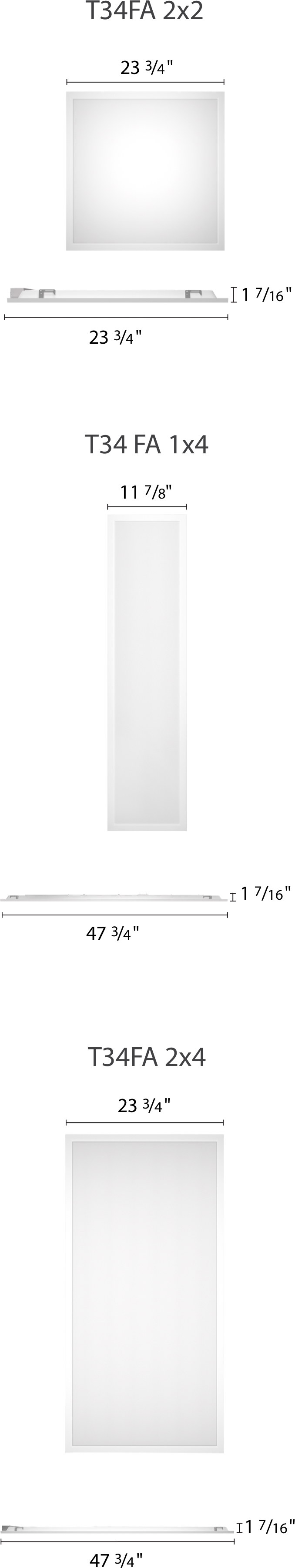

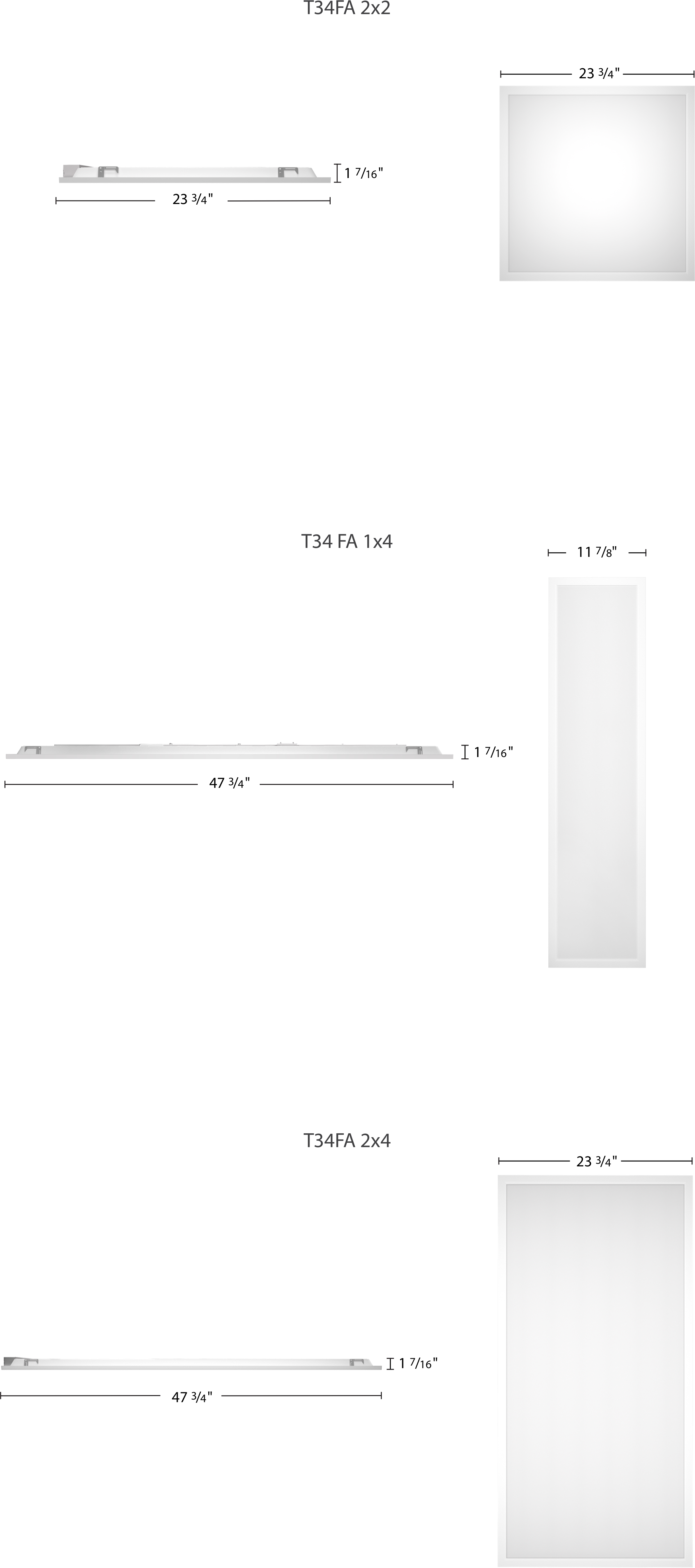

Dimensions
