High mast output with precision, rotatable optics.

The field-adjustable TOTEM high mast light.

Ordering Matrix View Price & Availability Utility Rebate Finder Product CSV Sell Sheet Family Spec Sheet

Product CSV Sell Sheet Family Spec Sheet

Eight levels of power, one simple dial.

TOTEM puts the power in your hands—literally. A dial inside the driver box lets you select between 8 different wattages without climbing a pole. Dial it down for off-peak hours or crank it up for maximum coverage.

Aim it exactly where you need it.

TOTEM's housing flange rotates 165° left and right, and the fixture tilts from 0 to 5° in 1° increments, so you can put the light precisely where the application demands.

Built for the long haul.

IP66 rated, 3G vibration resistant, and backed by a 20kV surge protector, TOTEM is built to perform in the most demanding conditions, and a 1,000-hour salt spray test assures you it can stand up to corrosive environments.

Match the light
to the site.

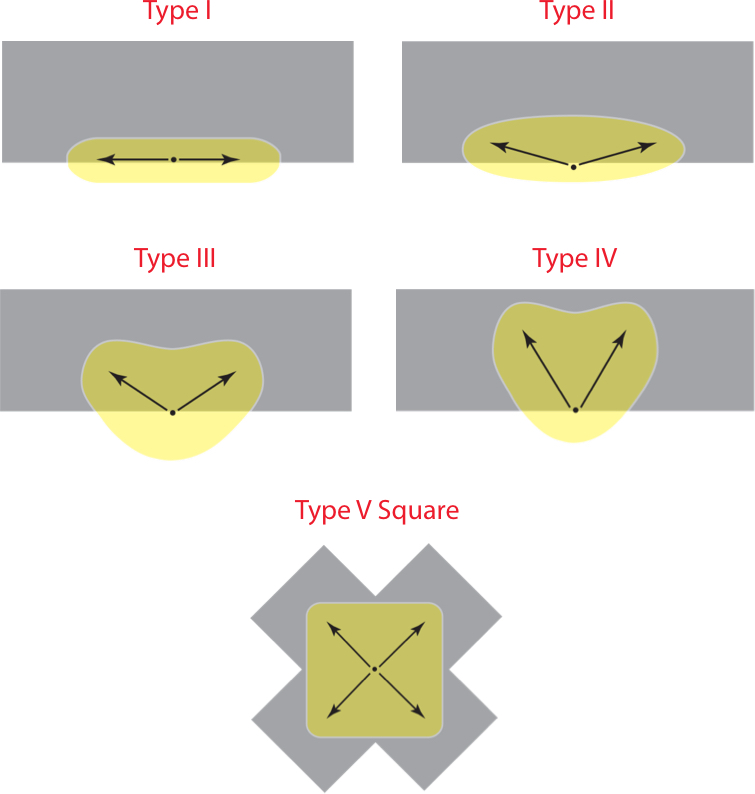

TOTEM comes in five IES distribution types—Type I through Type V Square—so you get the right pattern for roadways, parking lots, or open yards without fighting spill or dark spots.

Fits the infrastructure you already have.

TOTEM mounts to 1-5/8" to 2-3/8" pipe arms and on pole heights from 50 to 130 ft, so it integrates into standard high mast systems without custom hardware or extra engineering.

Control options
built in.

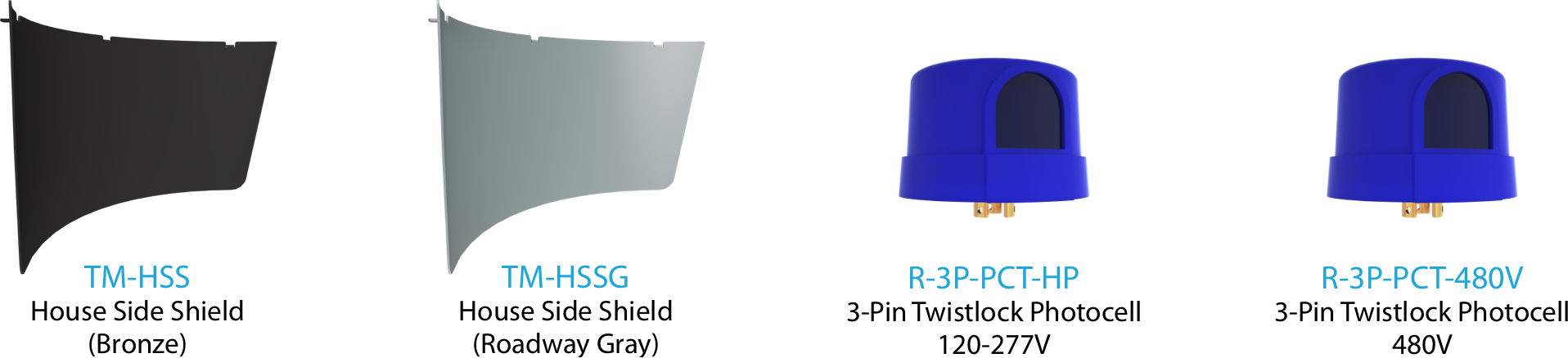

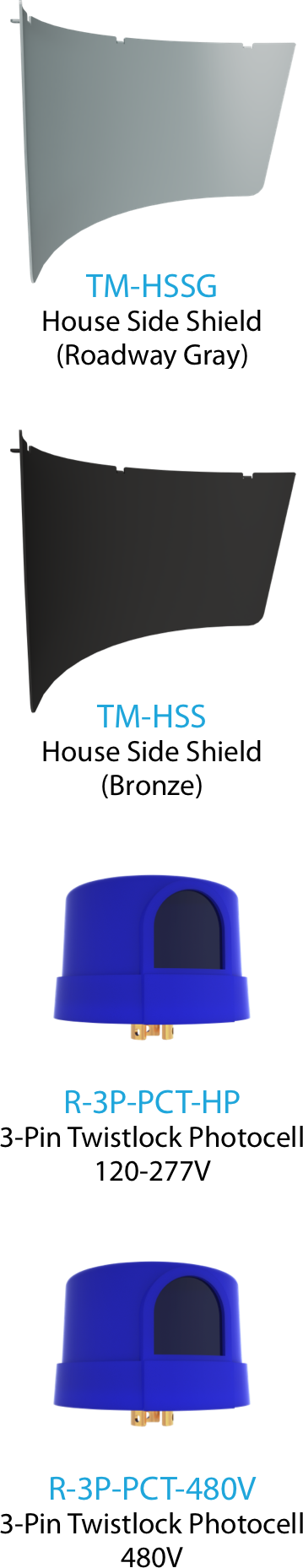

A 7-pin receptacle with shorting cap is included as standard, making TOTEM ready for photocell and control integration right out of the box. Optional house side shields install in 8 directions to direct light exactly where it belongs and minimize spill.

Additional Features

Industry-leading warranty.

The RAB 5-year, no-compromise warranty covers light output, color stability, driver performance, and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

100,000-Hour LED lifespan.

At 10 hours daily use, RAB LEDs are rated to last 27 years, dramatically reducing maintenance and relamping costs.

Big rebates.

This family of products is available in DLC Premium listed models.

Universal Voltage.

This family is available with options for use on 120-277V circuit for residential, commercial, and industrial installations.

High voltage.

This family is available with options for use on 480V circuit for commercial and industrial installations.

Dimming.

Dimmable using compatible 0-10V dimmers.

Ingress protection rating.

This family of products has options available with IP66 rating for protection against dust and powerful jets of water.

3G Vibration.

This family carries a 3G vibration rating, withstanding vibrations in high-movement environments such as bridges to protect electronic components from damage.

Surge protection.

This family of products is available with built-in surge protection for regions with lighting strikes.

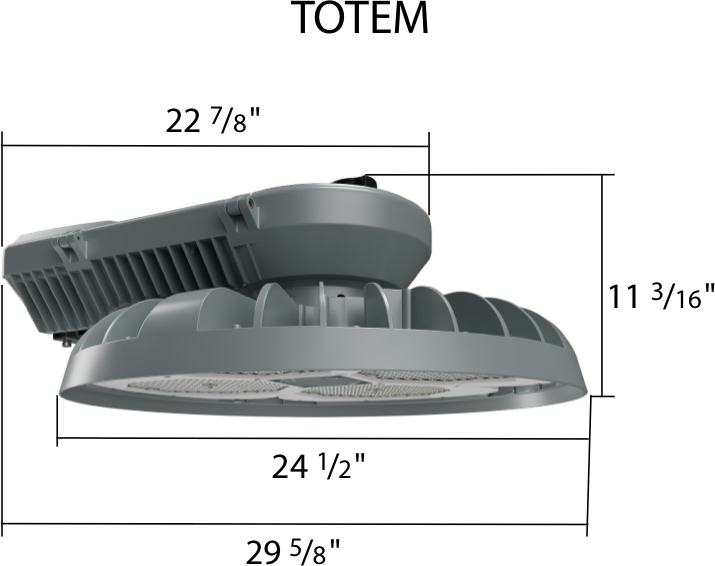

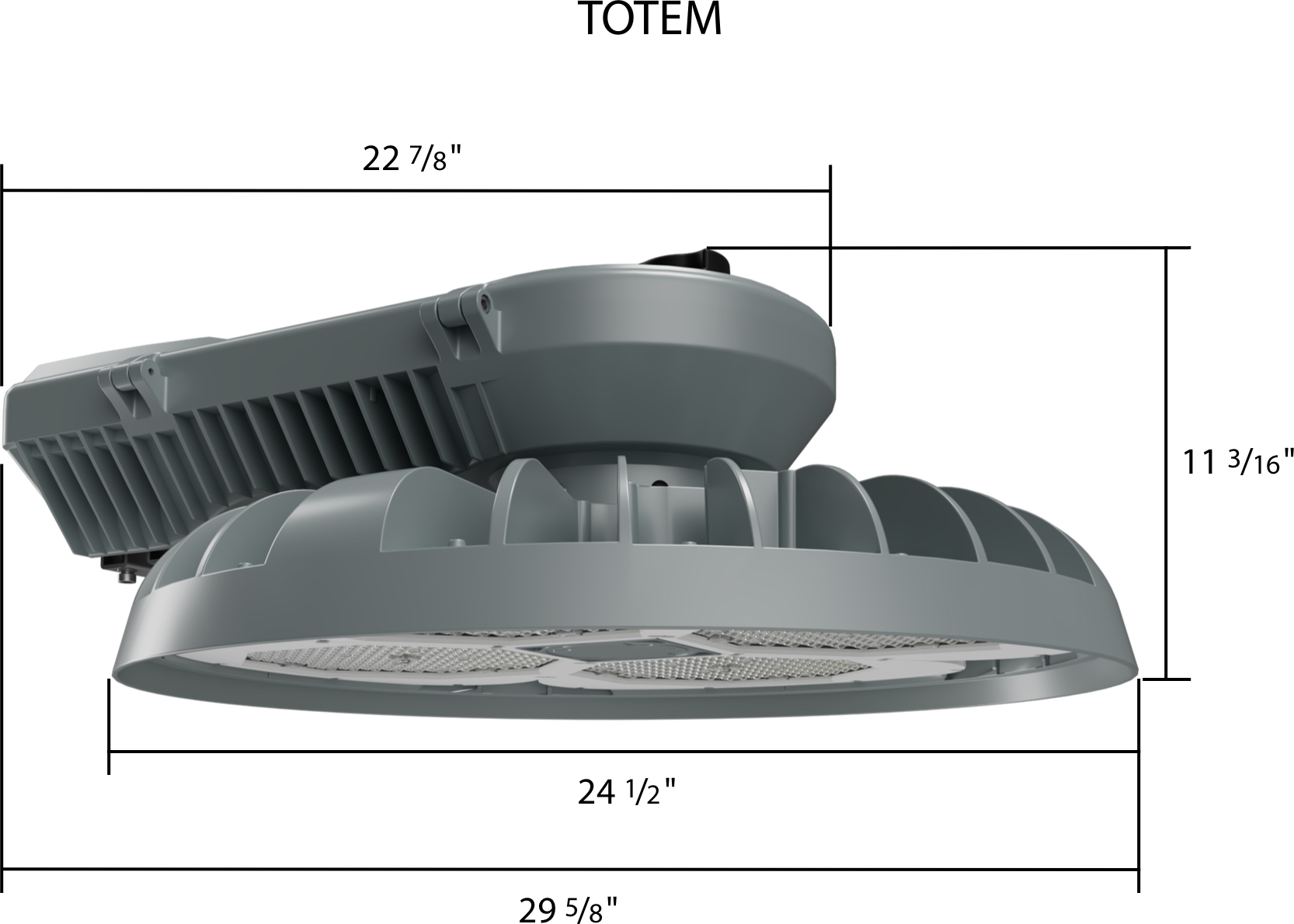

Dimensions
