Always one step ahead…

TSLED field-adjustable stairwell lighting.

Ordering Matrix View Price & Availability Utility Rebate Finder Product CSV Sell Sheet Folleto (Español) Family Spec Sheet Instructions

Ordering Matrix

View Price & Availability

Product CSV Sell Sheet Folleto (Español) Family Spec Sheet Instructions

Ultrasonic sensing.

The new generation of Treadsafe lighting is available with an integrated ultrasonic (US) sensor that can be wired to control additional stairwell lighting. Ultrasonic sensing is best suited for stairwell applications where there is often no direct line of sight.

Level up energy savings.

Transform stairwells from energy drains to efficient spaces. Bi-level dimming can quickly be set to meet code, 0-10V dimming will save you even more, and Lightcloud® Blue models let you set high-end trim for maximum savings!

We’ve got your back.

All models are available with battery backup to ensure that stairwells stay safely lit when the building loses power.

Adaptable lighting.

The all-new Treadsafe features field-adjustable power and CCT for on-site customization that ensures perfect lighting without having to order multiple SKUs.

Smooth operator.

The Treadsafe features a frosted polycarbonate lens that drastically reduces glare and eliminates striations, delivering optimized, reliable light distribution for every step you take.

Easy installation.

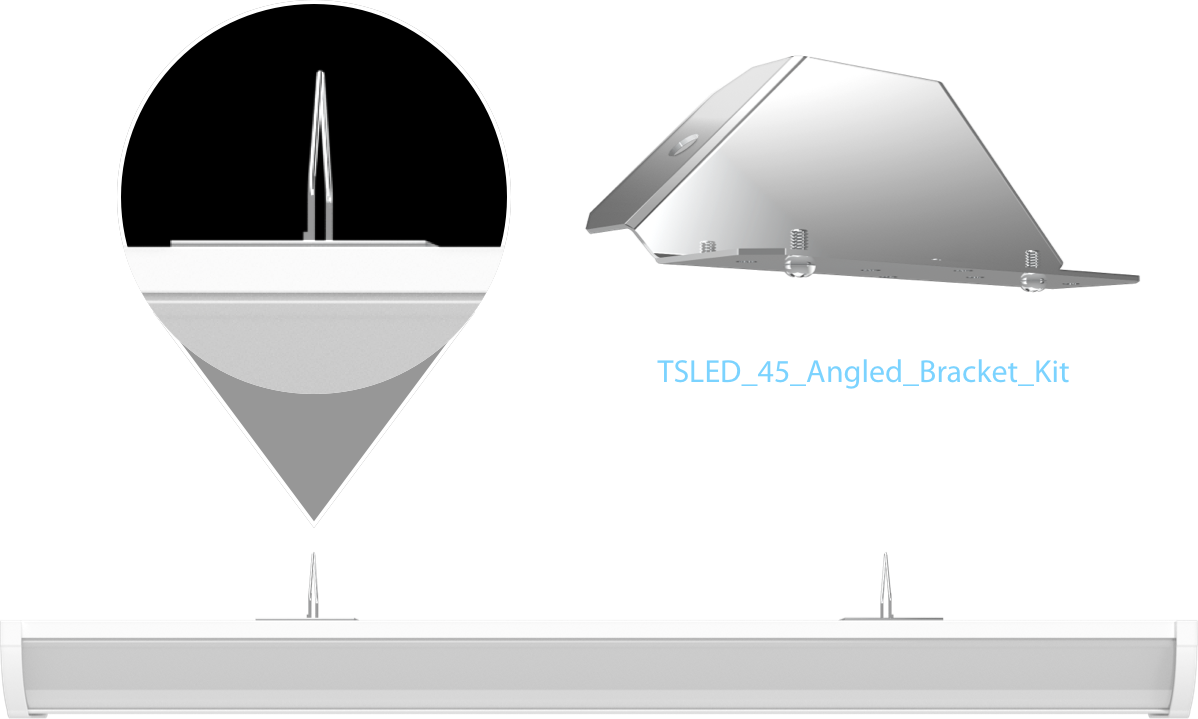

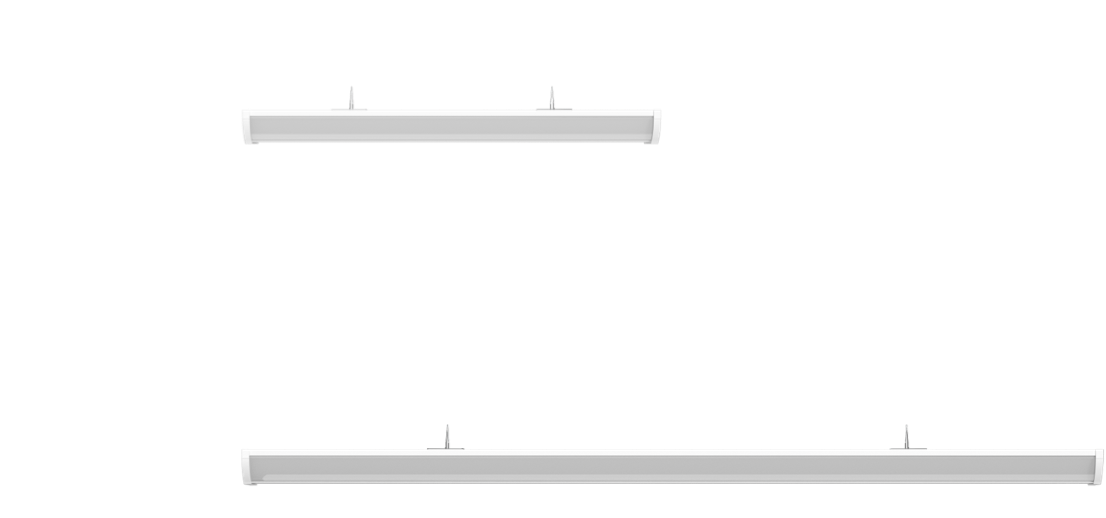

Multiple mounting options provide installation versatility for the Treadsafe. All models come standard with surface mount hardware and V-hooks for suspended mounts, but a bracket accessory kit is also available for 45° corner mounting.

Additional Features

Industry-leading warranty.

The RAB 5-Year, no-compromise warranty covers light output, color stability, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

100,000-Hour LED lifespan.

At 10 hours daily use, RAB LEDs are rated to last 27 years, dramatically reducing maintenance and relamping costs.

Big rebates.

This family of products is available in DLC Premium listed models.

Universal Voltage.

This family is available with options for use on 120-277V circuit for residential, commercial, and industrial installations.

Dimming.

Dimmable using compatible 0-10V dimmers.

Bi-level.

For low traffic areas and further energy reductions, bi-level configuration allows 50% output and 100% output modes.

Emergency battery.

Models with battery backup supply power for 90 minutes.

Wireless networked control.

Select models are compatible with Lightcloud and/or Lightcloud Blue wireless lighting control systems.

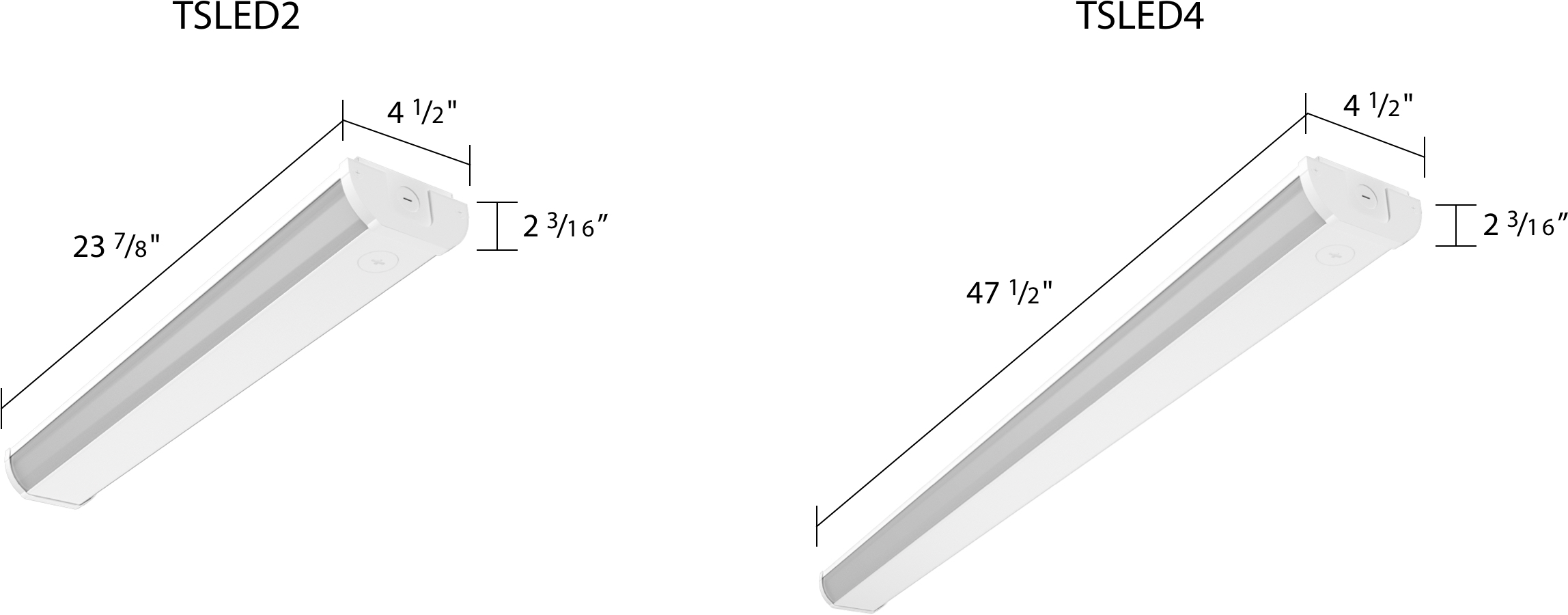

Dimensions
