BACKDRAFT4
BACKDRAFT4
- Complies with UL 263, tested and certified for 2 hours
- 5 color temperatures in 1 SKU (2700K, 3000K, 3500K, 4000K, 5000K)
- Super slim, edge-lit fixture
- No recessed housing or J-box required
- New construction or retrofit applications
Performance
| Watts | 11W |
| Color Temp | 2700/3000/3500/4000/5000K |
| Lumens | 957 lm |
| Efficacy | 87 |
| Color Accuracy | >90 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current, Class 2 |
| 120V | 0.11A |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 11W |
Dimensions
Weight: 1.0 lbs
Technical Specifications
Performance
Product Type
Edge-Lit Wafer
Description

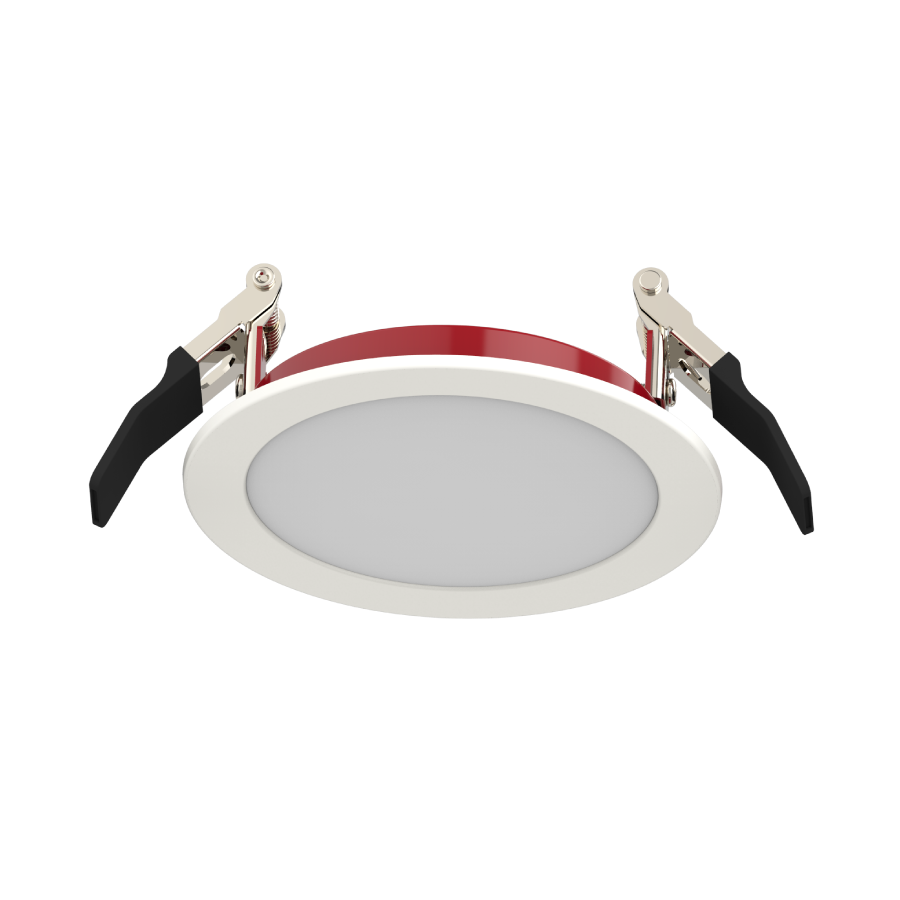

Fire-resistant edge-lit wafer offered in 4" and 6" models with 5 selectable color temperatures in one wafer. The remote driver makes these ideal for new construction and retrofit applications.
Wattage Equivalency
60W Incandescent
Input Wattage
11W
Lumens
2700K @ 919lm; 3000K @ 957lm; 3500K @ 991lm; 4000K 988lm; 5000K 929lm
Efficacy
2700K @ 84lm/W; 3000K @ 87lm/W; 3500K @ 90lm/W; 4000K @ 90lm/W; 5000K @ 84lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Compliance
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
