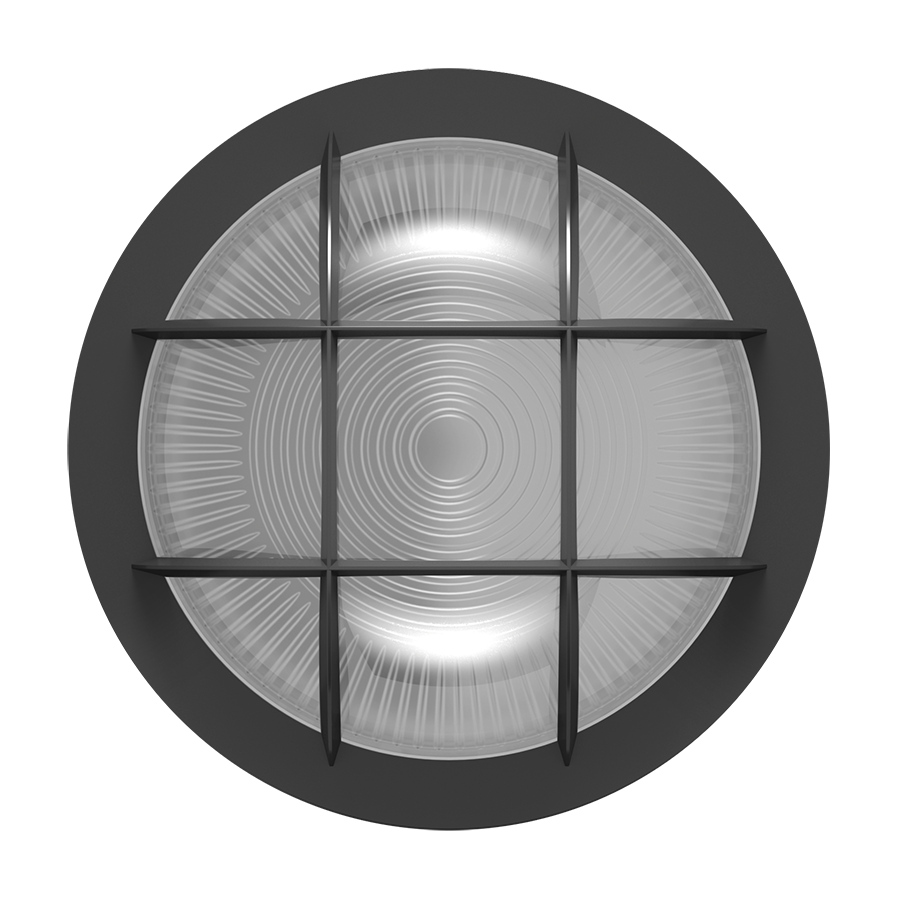

BULKH15R
BULKH15R
15W 3000/4000/5000K
- 100,000-hour LED Life
- On/Off photocell
- 5-Year, limited warranty
Performance
| Watts | 15/12/9W |
| Color Temp | 3000/4000/5000K |
| Lumens | 1,018-1,684 lm |
| Efficacy | 107.8-119.7 lm/W |
| Color Accuracy | 83-86 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.13A/0.10A/0.08A |
| 208V | 0.07A/0.06A/0.05A |
| 240V | 0.06A/0.05A/0.04A |
| 277V | 0.06A/0.05A/0.04 |
| Input Watts | 9.1-14.6W |
Dimensions
Weight: 3.3 lbs
Technical Specifications
Field Adjustability
Field Adjustable
Field Adjustable Light Output:
15W/12W/9W (factory default 15W)
Color Temperature Selectable:
3000K, 4000K and 5000K (factory default 5000K)
On/Off Photocell (factory default "On")
15W/12W/9W (factory default 15W)
Color Temperature Selectable:
3000K, 4000K and 5000K (factory default 5000K)
On/Off Photocell (factory default "On")
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
LED Characteristics
LEDs
Long-life, high-efficacy, discrete, surface-mount LEDs
Electrical
Driver
Constant Current, Class 1, 120-277V, 50/60 Hz:
15W: 0.13A, 208V: 0.07A, 240V: 0.06A, 277V: 0.06A
12W: 120V: 0.10A, 208V: 0.06A, 240V: 0.05A, 277V: 0.05A
9W: 120V: 0.08A, 208V: 0.05A, 240V: 0.04A, 277V: 0.04A
15W: 0.13A, 208V: 0.07A, 240V: 0.06A, 277V: 0.06A
12W: 120V: 0.10A, 208V: 0.06A, 240V: 0.05A, 277V: 0.05A
9W: 120V: 0.08A, 208V: 0.05A, 240V: 0.04A, 277V: 0.04A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
Power Factor
15W: 98.1% at 120V, 92.5% at 277V
12W: 97.9% at 120V, 91.1% at 277V
9W: 97.1% at 120V, 86.5% at 277V
12W: 97.9% at 120V, 91.1% at 277V
9W: 97.1% at 120V, 86.5% at 277V
Aux Power Supply
No
Dim to Off
No
Photocell
120-277V selectable photocell that can be turned on and off.
Surge Protection
2 kV
Construction
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Maximum Ambient Temperature
Suitable for use in up to 113°F (45°C)
Housing
Die-cast aluminum
Lens
Glass
Gaskets
High-temperature silicone
Green Technology
Mercury and UV free. RoHS-compliant components.
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
IP Rating
Ingress protection rating of IP65 for dust and water
Installation
Mounting
Wall mount
Other
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
