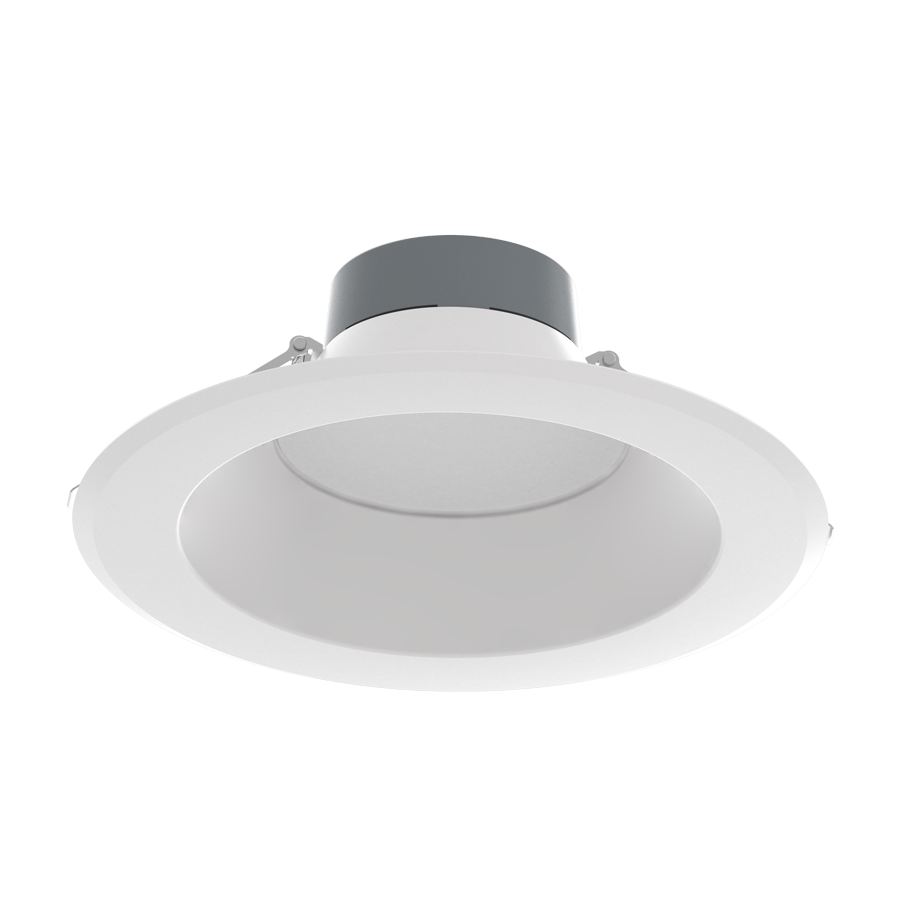

CRLEDFA-10R-43S-9CCT-UNV-WS
CRLEDFA-10R-43S-9CCT-UNV-WS
- Mounts directly into ceiling, no housing required
- Field-adjustable "set and forget" color temperature
- High-performance LEDs for commercial applications
- Meets air-tight requirements
- 0-10V dimming, see Dimmer Compatibility List
- Suitable for wet and damp locations
- Replacement for traditional compact fluorescent recessed downlights
Performance
| Watts | 43/37/32W |
| Color Temp | 3000/3500/4000/5000K |
| Lumens | 3,000 lm |
| Efficacy | 93.8 |
| Color Accuracy | 90 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current |
| 120V | .39A |
| 208V | .22A |
| 240V | .19A |
| 277V | .17A |
| Input Watts | 43/37/32W |
Dimensions
Weight: 2.2 lbs
Technical Specifications
Performance
Product Type
Commercial Downlight
Description
Wattage and CCT selectable commercial downlights for new construction and retrofit applications.
Wattage Equivalency
2x27W CFL/2x24W CFL/2x23W CFL
Input Wattage
43/37/32W
Lumens
43W: 3000K @ 4,000lm; 3500K @ 4,100lm; 4000K @ 4,100lm; 5000K @ 4,050lm
37W: 3000K @ 3,500lm; 3500K @ 3,580lm; 4000K @ 3,580lm; 5000K @ 3,540lm
32W: 3000K @ 3,000lm; 3500K @ 3,080lm; 4000K @ 3,080lm; 5000K @ 3,040lm
37W: 3000K @ 3,500lm; 3500K @ 3,580lm; 4000K @ 3,580lm; 5000K @ 3,540lm
32W: 3000K @ 3,000lm; 3500K @ 3,080lm; 4000K @ 3,080lm; 5000K @ 3,040lm
Efficacy
43W: 3000K @ 93lm/W; 3500K @ 95lm/W; 4000K @ 95lm/W; 5000K @ 94lm/W
37W: 3000K @ 95lm/W; 3500K @ 97lm/W; 4000K @ 97lm/W; 5000K @ 96lm/W
32W: 3000K @ 94lm/W; 3500K @ 96lm/W; 4000K @ 96lm/W; 5000K @ 95lm'W
37W: 3000K @ 95lm/W; 3500K @ 97lm/W; 4000K @ 97lm/W; 5000K @ 96lm/W
32W: 3000K @ 94lm/W; 3500K @ 96lm/W; 4000K @ 96lm/W; 5000K @ 95lm'W
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Electrical
Driver
Constant Current, Class 2, 60 Hz, 120V-277V, 120V: 0.39A, 277V: 0.17A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
≤20%
Power Factor
≥0.9
Dimmable
Yes, 0-10V dims down to 10%. See Dimmer Compatibility List.
Input Voltage
120-277V
Operating Frequency
50/60Hz
Input Current @ 120V (mA)
390mA
Input Current @ 208V (mA)
215mA
Input Current @ 240V (mA)
187mA
Input Current @ 277V (mA)
165mA
Operating Temperature
-4°F to 104°F (-20°C to 40°C)
Flicker
≤30%
Color Temperature
Field Adjustable via dip switch 3000/3500/4000/5000K
LED Characteristics
Color Accuracy (CRI)
>90 CRI
R9 Value
High color performance with R9 greater than or equal to 50
Color Consistency
4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Installation
Mounting
Recessed
Construction
Size
10"
Shape
Round
Finish
White
Enclosure Material
Metal
Trim Style
Smooth
Lens
Polycarbonate light diffuser distributes light evenly and smoothly for general lighting applications
Compliance
Listings
UL Listed, UL Classified
Environment
Suitable for use in dry, damp, and wet environments.
IC Rated
No
Air Tight
Housing certified Air Tight as per ASTM-E283
Energy Star Approved
This product is ENERGY STAR® Version 2.2 Certified.
DLC Listed
No.
There is no product category on the Design Lights Consortium (DLC) Qualified Products List for this lamp to qualify under.
There is no product category on the Design Lights Consortium (DLC) Qualified Products List for this lamp to qualify under.
Certification Model Number
DLC0057(CRLEDFA-10R-43S-9CCT-UNV-WS)
T20 Compliant
Not compliant
California Title 24 JA8 Compliant
Can be used to conform with the requirements of California Title 24 Part 6
California Energy Commission (CEC) Status
Lawful for Sales in California
NEC Compliant
Suitable for use in closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C3).
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
Energy Star ID
3557088
Other
Accessories
DLPLATE/C3468R/NB
DLPLATE/WFR3468/NB
Mounting Plate w/nailer bar
DL10-12GOOF/R/P/CRLEDFA
Commercial Downlight 10"-12" Goof Ring
DLTRIM/CRLEDFA10R-BNS
10" Smooth Brushed Nickel Color Trim
DLTRIM/CRLEDFA10R-BRS
10" Smooth Bronze Color Trim
DLTRIM/CRLEDFA10R-BS
10" Smooth Black Color Trim
DRI-21-EMGR-DC-D10
Emergency backup driver
DLPLATE/WFR3468/NB
Mounting Plate w/nailer bar
DL10-12GOOF/R/P/CRLEDFA
Commercial Downlight 10"-12" Goof Ring
DLTRIM/CRLEDFA10R-BNS
10" Smooth Brushed Nickel Color Trim
DLTRIM/CRLEDFA10R-BRS
10" Smooth Bronze Color Trim
DLTRIM/CRLEDFA10R-BS
10" Smooth Black Color Trim
DRI-21-EMGR-DC-D10
Emergency backup driver
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
