DISK17-6/BP
DISK17-6/BP
10W 2700/3000/3500/4000/5000K

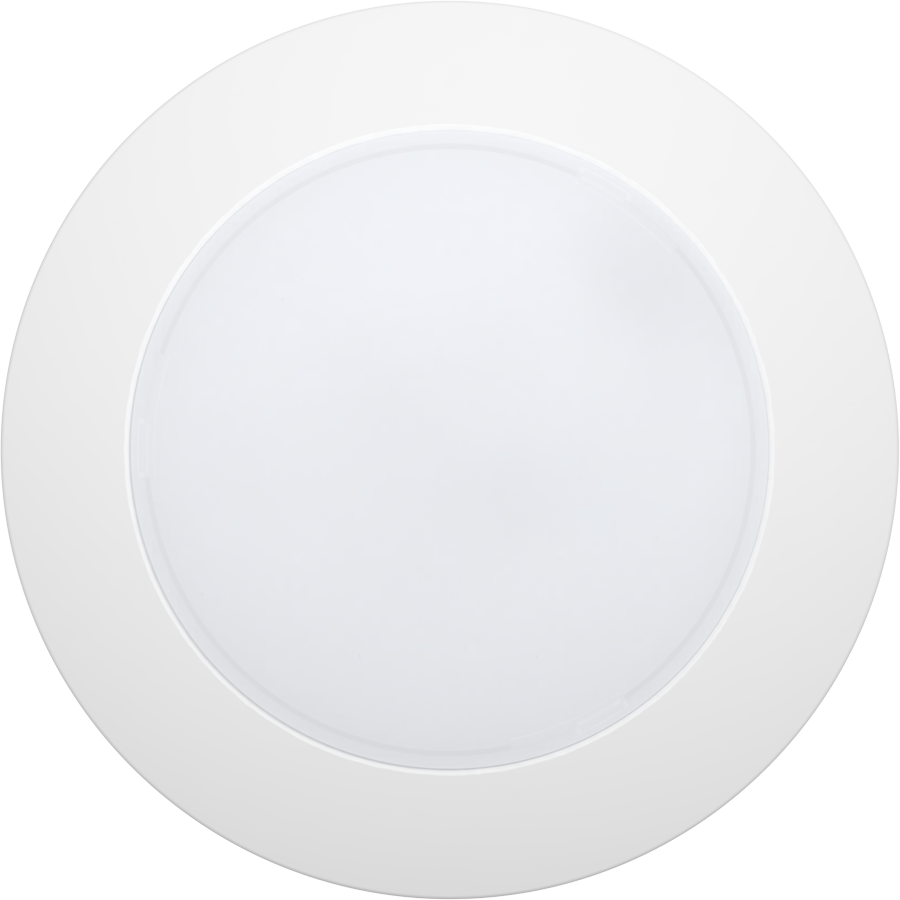

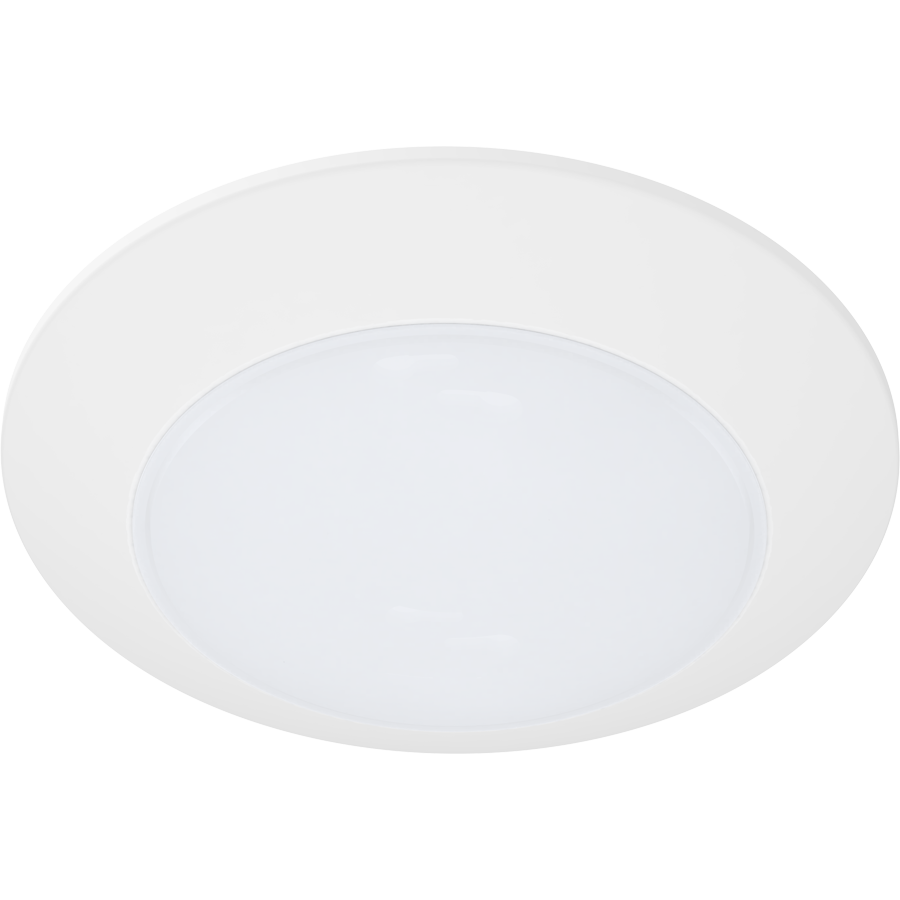

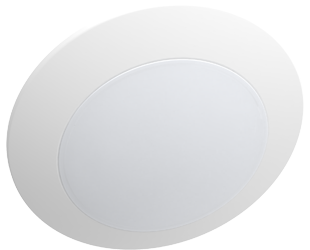

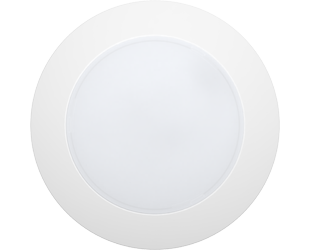

- Ultra low-profile, back-lit design made of durable thermoplastic with frosted lens
- Five selectable color temperatures in each fixture. (2700-3000-3500-4000-5000K)

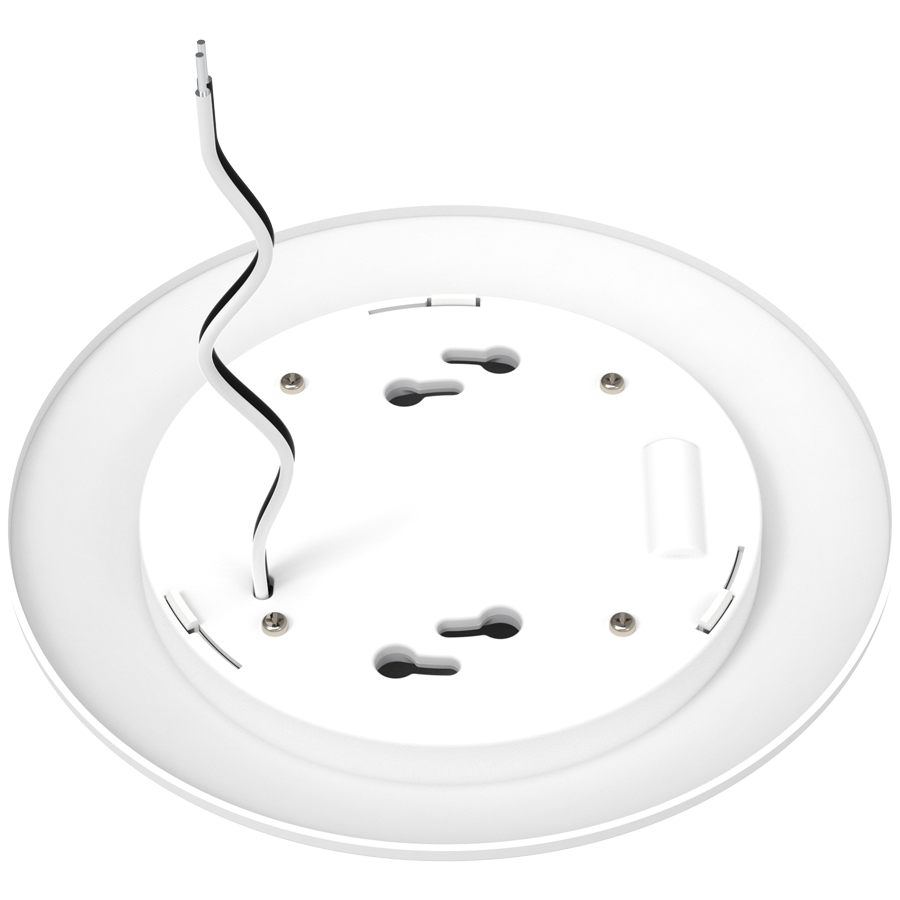

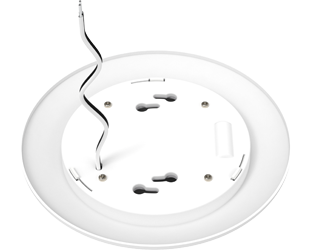

- Easy surface mount installation with included keyholes and compatible with 3/0 & 4/0 junction boxes
- Designed and Certified to Comply with NEC Code 410.16(A)(1) and NEC Code 410.16(C)(1) for Installation in Closet Storage Space
- Wet Location, Title 24, & Energy Star rated. 5-year warranty
- Packaged in bulk case quantities of 12
Performance
| Watts | 10W |
| Color Temp | 2700/3000/3500/4000/5000K |
| Lumens | 891-958 lm |
| Efficacy | 93.2-98.5 lm/W |
| Color Accuracy | 90 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current |
| 120V | 0.09A |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 9.6-9.7W |

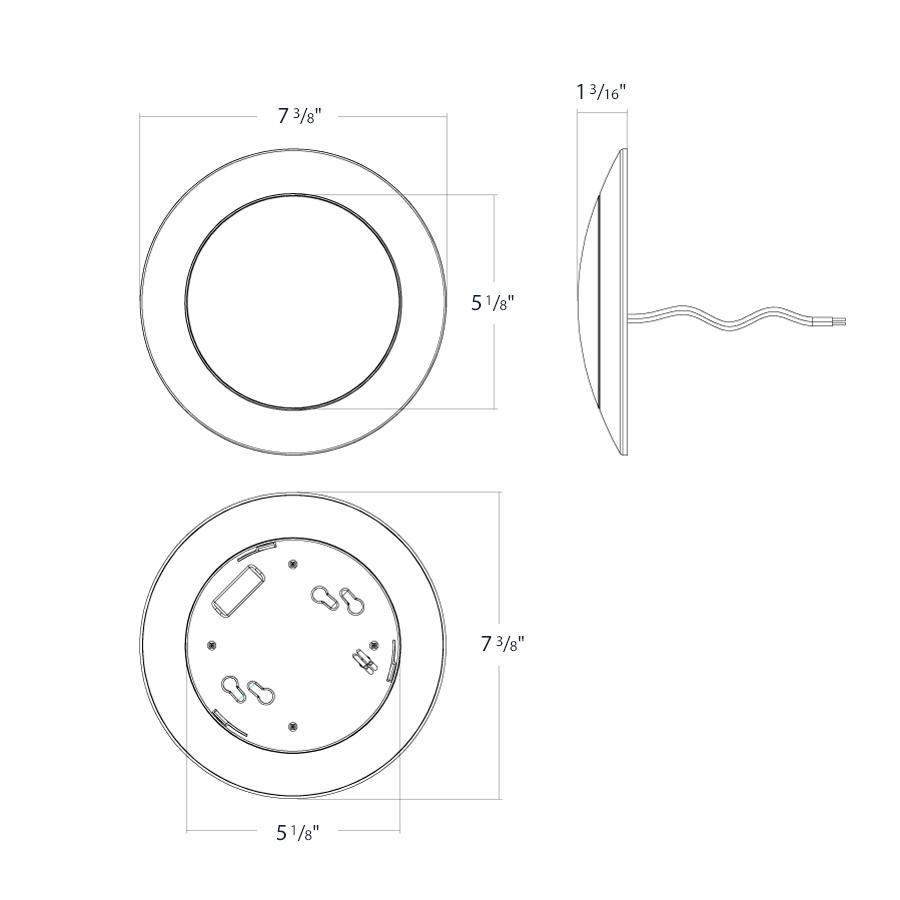

Dimensions
Weight: 0.4 lbs
Technical Specifications
Performance
Product Type
Surface Mount
Description
Contractor bulk pac, ultra-economy, CCT-adjustable surface mount disk lights
Wattage Equivalency
75W Incandescent
Input Wattage
10W
Lumens
900lm
Efficacy
90lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Electrical
Driver
Constant Current, 120V, 60 Hz; @ 120V: 100mA
Power Factor
≥0.9
Dimmable
Yes, dimmable down to 10% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.
Input Voltage
120V
Operating Frequency
60 Hz
Operating Temperature
-4°F to 104°F (-20°C to 40°C)
Flicker
<30%
LED Characteristics
Beam Angle
90°
Color Temperature
Field adjustable via dip switch 2700/3000/3500/4000/5000K
Color Accuracy (CRI)
90 CRI
Natural Spectrum
No
R9 Value
High color performance with R9 greater than 50
Color Consistency
<4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Installation
Mounting
Surface Mount
Construction
Size
6"
Shape
Round
Finish
White
Enclosure Material
Plastic
Trim Style
Smooth
Lens Finish
Frosted
Lens
Twist-lock lens makes it easy to remove and attach during installation with UV resistant polycarbonate diffuser
Compliance
Listings
UL Listed
Environment
Suitable for use indoors and outdoors in dry, damp, or wet environments.
IC Rated
No
Air Tight
No
Energy Star Approved
This product is ENERGY STAR® Certified.
Certification Model Number
DLS0191(DISK17-6/BP)
California Title 20 Compliant
No
California Title 24 JA8 Compliant
Can be used to conform with the requirements of California Title 24 Part 6
California Energy Commission (CEC) Status
Lawful for Sales in California
NEC Compliant
Suitable for use in closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C1).
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
Other
Compatible Products
DISK36-TRIM-6-BLK
6" Color trim for DISK round black
DISK36-TRIM-6-BN
6" Color trim for DISK round brushed nickel
DISK36-TRIM-6-BRZ
6" Color trim for DISK round bronze
6" Color trim for DISK round black
DISK36-TRIM-6-BN
6" Color trim for DISK round brushed nickel
DISK36-TRIM-6-BRZ
6" Color trim for DISK round bronze
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
