Dimensions
Link to Dimension Drawing

Weight: 0.1 lbs

Technical Specifications
Performance
Description

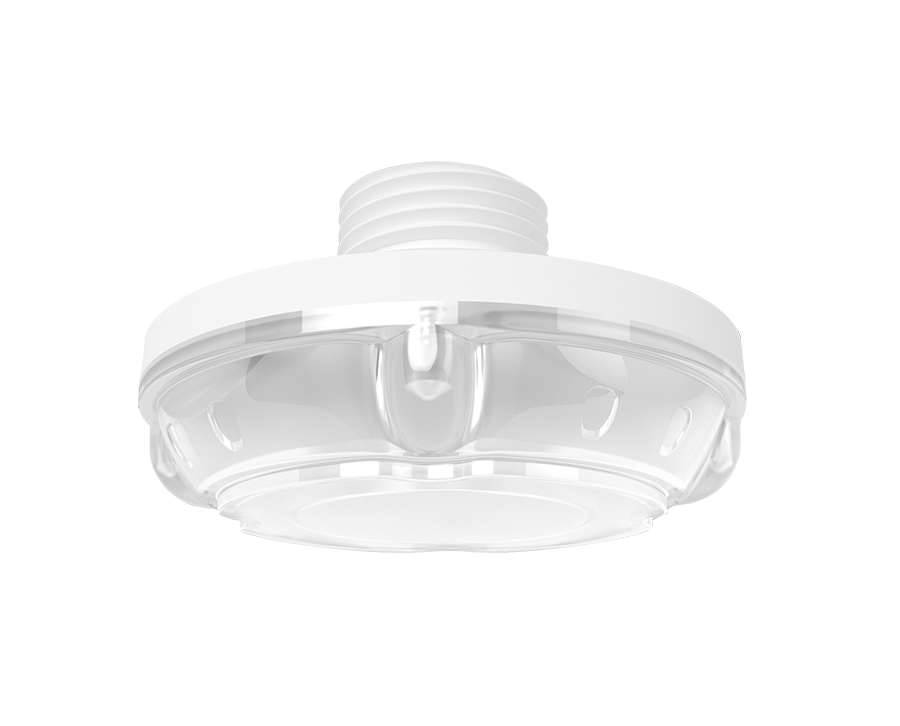

Microwave ocuppancy sensor kit
Other
Compatibility
H17 and H17 XL
Sensor Settings
Operating Voltage
12 ± 2V DC
Operating Current
30mA
Output
DIM 0-10V
Stand-By Power
<0.5W
Brightness
0%-100%/Quick setting: 70%/80%/90%/100%
Hold Time
10s/1min/10min/30min
Daylight Threshold
10Lux/30Lux/50Lux/100Lux/Disable
Lux On-Off
Adopted dual PD technology. H17-PIR is able to differenciate artificial light brightness from natural light after installed inside.
Stand-By Time
1min/30min/60min/+∞
Stand-By Dimming Level
10%/20%/30%/50%
Detection Angle
≤120° (wall mounted) 360° (ceiling mounted)
Control Line
Black White 12V+ ; Purple: DIM+ ; Pink GND/DIM-
Mounting Height
Max 6M (ceiling mounted)
Detection Range
Max 15M
Operating Temperature
-30°C to 60°C (-22°F to 140°F)
Construction
Finish
Formulated for high durability and long-lasting color
