PAR30S-11-940-40D-DIM
PAR30S-11-940-40D-DIM
- Produces rich and vibrant colors >90CRI
- Energy efficient replacement for incandescent and halogen PAR lamps
- Constructed from durable materials which lowers risk of breakage
- Rated for use in enclosed and open fixtures in dry and damp locations*
- Single optic and full face lens for precise beam angle control
- Longer lifespan compared to legacy equivalents minimizes replacement and maintenance costs
- Title 20 Compliant, UL Listed
- Dimmable down to 10% (check dimmer compatibility list)
- *PAR38 is wet rated
Performance
| Watts | 11W |
| Color Temp | 4000K (Cool White) |
| Lumens | 915 lm |
| Efficacy | 83.2 lm/W |
| Color Accuracy | 90 CRI |
| L70 Lifespan | 25,000 Hours |
| Input Voltage | 120V |
| Power Factor | 0.9 |
| Flicker | <30% |
| THDi | N/A |
| R9 | 50 |

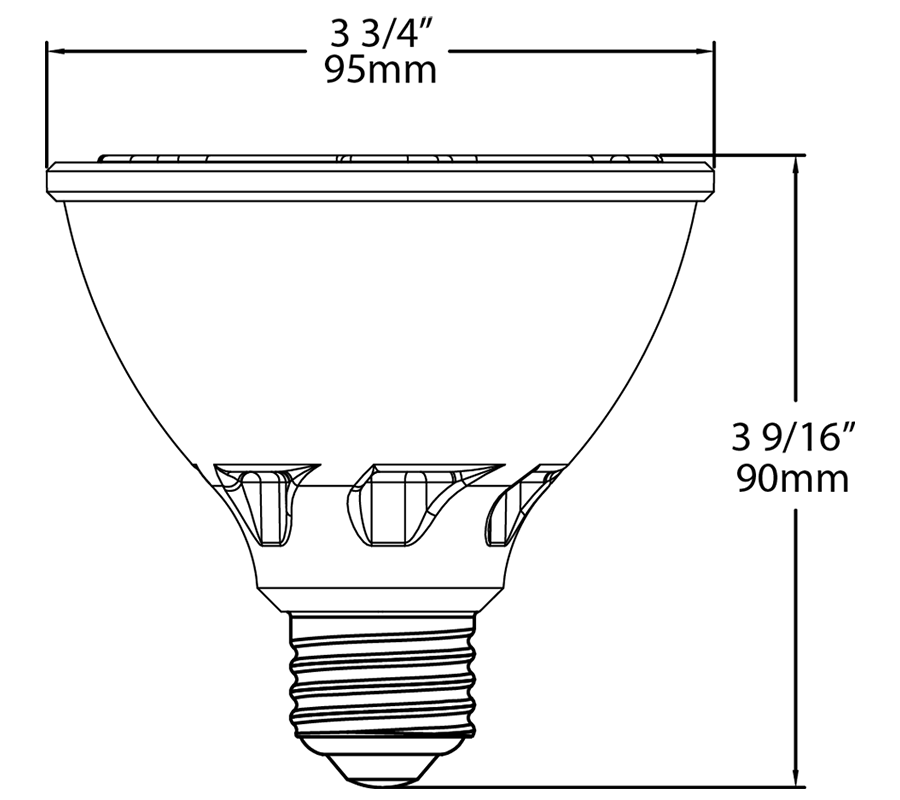

Dimensions
Weight: 0.3 lbs
Technical Specifications
Performance
Product Type
PAR
Input Wattage
11W
Lumens
900lm
Efficacy
82lm/W
L70 Lifespan
25,000-Hour LED lifespan based on IES LM-70 results
Wattage Equivalency
75W
LED Characteristics
Color Accuracy (CRI)
90 CRI
Color Temperature
4000K
Electrical
Power Factor
>0.9
Dimmable
Yes, down to 10%
Input Voltage
120V
Operating Temperature
-20°C to 40°C
Construction
Bulb Shape
PAR30S
Enclosure Material
Plastic
Housing Finish
White
Base Type
E26 Edison
Optical
Beam Angle
40°
MBCP
1315
Other
Technology EQ
Halogen
Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of three (3) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Compliance
UL Listed
Yes
Environment
Damp / Enclosed
T20 Compliant
Yes, Title 20 Tier 2
T24 JA8 Compliant
Complies with Title 24 Appendix JA8
Rohs
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15B of the FCC Rules
Certification Model Number
P10013(PAR30S-11-940-40D-DIM)
