PLT-16-V-850-DIR

Spec Sheet LM79 Compatibility List Instructions FCC Caution Spec Sheet

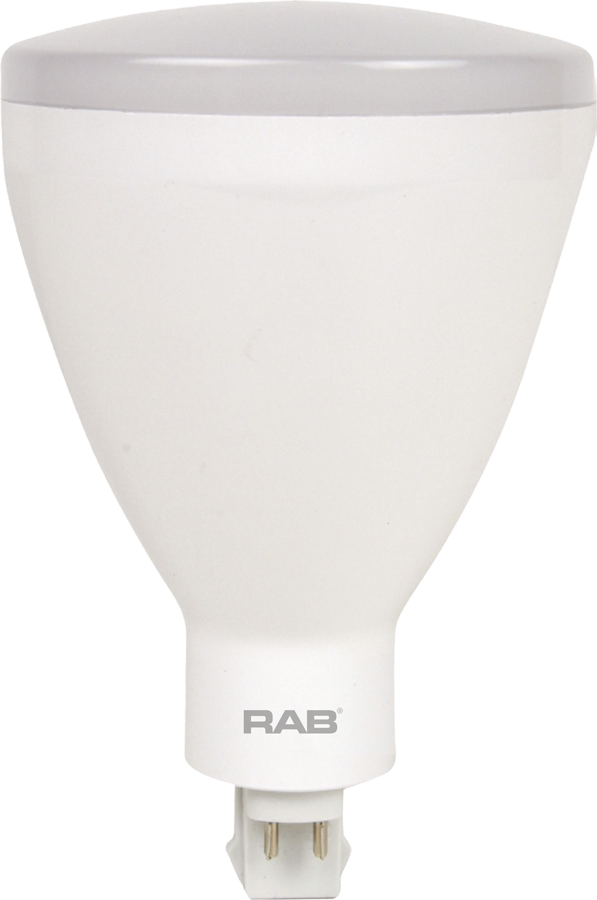

PLT-16-V-850-DIR

Replaces 42W G24q Lamps

Ballast Compatible. Directly Compatible with Most Existing CFL Ballasts.

Compatible with G24q / GX24q (4-pin CFL) installations

50,000 hour Lifespan

Environmentally friendly, no mercury used

UL Listed, DLC Listed

Rated for use in enclosed and open fixtures in dry or damp locations

5 Year No Compromise Warranty

View Technical Specs

View Price & Availability

Performance

Watts	16W
Color Temp	5000K (Daylight)
Lumens	1,850 lm
Efficacy	115.6 lm/W
Color Accuracy	82 CRI
L70 Lifespan	50,000 Hours

Input Voltage	Ballast Dependent
Power Factor	Ballast Dependent
Flicker	N/A
THDi	N/A

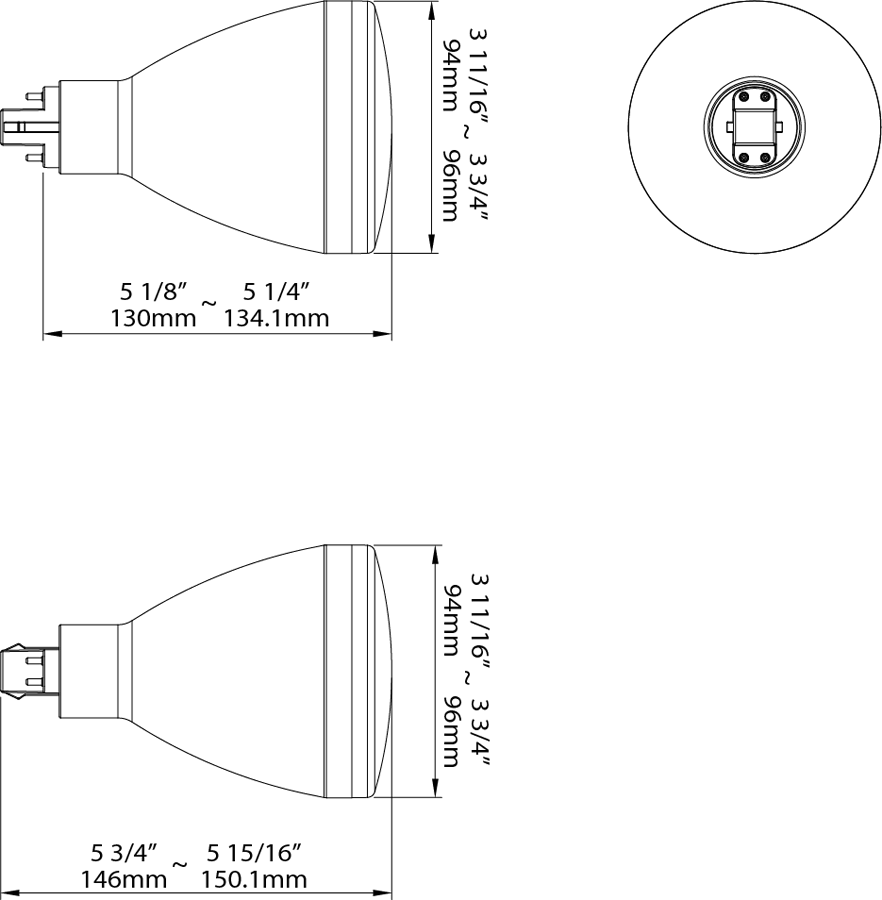

Dimensions

Weight: 0.3 lbs

Technical Specifications

Performance

Product Type

Compact

Input Wattage

16W

Wattage Equivalency

42W Fluorescent

Lumens (Nominal)

1,850lm

Efficacy

115lm/W

L70 Lifespan

50,000 Hours

Dimming

Compatible with RAB specified 0-10V dimming system. Dimming capabilities were tested and verified on 0-10V ballast Philips-Advance IZT-2S26-M5-LDand 0-10V dimming system.

Construction

Shape

PLT-Vertical

Finish

Frosted

For Use Outdoors in Open Fixtures

LED Characteristics

Color Temperature

5000K Daylight

Color Accuracy (CRI)

82 CRI

Beam Angle

100°

Installation

Base Type

GX24q

Installation Type

Type A, Plug and Play

Installation Orientation

Vertical

Electrical

Power Factor

Ballast Dependent

Operating Temperature

-20°C to 45°C (-4°F to 113°F)

Input Voltage

Ballast Dependent

Operating Frequency

Ballast Dependent

Input Current @ 120V

Ballast Dependent

Input Current @ 277V

Ballast Dependent

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Compliance

UL Listed

Yes

California Energy Commission (CEC) Status

Lawful for Sales in California

Application

Suitable for damp locations and totally enclosed fixtures.

Certification Model Number

T10099

DLC Listed

This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
