RTLED1X4/LCBS/MVS
Performance
| Watts | 30/25/18W |
| Color Temp | 3500/4000/5000K |
| Lumens | 2,438-4,156 lm |
| Efficacy | 127.98-144.5 lm/W |
| Color Accuracy | 85 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant |
| 120V | 0.25A/0.21A/0.15A |
| 208V | 0.15A/0.12A/0.09A |
| 240V | 0.13A/0.10A/0.08A |
| 277V | 0.11A/0.10A/0.07A |
| Input Watts | 17.9-30.1W |
Dimensions
Weight: 6.7 lbs
Technical Specifications
Compliance
UL Listed
Suitable for damp locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
Electrical
Driver
30W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.25A, 208V: 0.15A, 240V: 0.13A, 277V: 0.11A
25W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.21A, 208V: 0.12A, 240V: 0.10A, 277V: 0.10A
18W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.15A, 208V: 0.09A, 240V: 0.08A, 277V: 0.07A
25W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.21A, 208V: 0.12A, 240V: 0.10A, 277V: 0.10A
18W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.15A, 208V: 0.09A, 240V: 0.08A, 277V: 0.07A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
3.43% at 120V, 4.22% at 277V
Power Factor
99.72% at 120V, 96.03% at 277V
Battery Backup
Battery backup will operate the fixture for 90 minutes if power fails. Wired for 120.
Surge Protection
2.5 kV
Construction
Housing
Steel sheet metal
Cold Weather Starting
The minimum starting temperature is -4°F (-20°C)
Ambient Temperature
Suitable for use in up to 104°F (40°C)
Reflector
High-reflectance, powder-coated finish, optimized for uniform light distribution
Lens
Polycarbonate lens
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Stability
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Installation
Mounting
Retrofits into the existing housing
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Sensor Settings
Detection Angle
About 30 to 150 degrees
Lightcloud
Lightcloud Blue Low Voltage Controller and Related Sensor Installed
Occupancy,Vacancy, and closed loop daylight harvesting in oneVersatile sensor. In addition control any fixture in your Lightcloud Blue integrated/embedded networked lighting luminaire-level control system. LLLC - capable of switching, 0-10V dimming, power/energy monitoring. Can also be used to extend the range of the Lightcloud Blue utilizing a "BLE Mesh" network communication protocols. The Lightcloud Blue sensor can be attached to the fixture provided an unobstructedView of the coverage area is available.
DLC system - N1XMLOEATBA
Learn more at www.lightcloud.com
DLC system - N1XMLOEATBA
Learn more at www.lightcloud.com
Technology
Microwave Sensor
Microwave Frequency
5.8GHz +/-7.5MHz
Maximum Mounting Height
13.1 ft
Maximum Detection Range
26.2 ft diameter at 13.1 ft height
Uncommissioned State Parameters
Motion Sensor Status: Enabled
Motion Sensitivity: High (100% range)
Brightness when triggered: 100%
Hold Time: 1 minute
Daylight: Disabled by default
Motion Sensitivity: High (100% range)
Brightness when triggered: 100%
Hold Time: 1 minute
Daylight: Disabled by default
Commissioned State Parameters (Once paired to Lightcloud Blue App)
Motion Sensor Status: Disabled (can be enabled via app)
Motion Sensitivity: High (100% range, can be adjusted to medium and low)
Brightness when triggered: Last on status (can also be adjusted to certain dim level)
Hold Time: 20 minutes (can be adjusted from 1 minute to 240 minutes)
When Vacant: Off (can be adjusted to certain dim level)
Daylight: Disabled by default
Motion Sensitivity: High (100% range, can be adjusted to medium and low)
Brightness when triggered: Last on status (can also be adjusted to certain dim level)
Hold Time: 20 minutes (can be adjusted from 1 minute to 240 minutes)
When Vacant: Off (can be adjusted to certain dim level)
Daylight: Disabled by default
Other
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Recently Viewed Products
SWISHFA2X4/D10
Panels & Troffers 3484-5882 Lumens Swish Field Adjustable2X4 29/39/49W 3500/4000/5000K 0-10V Dimming 120V-277V
NDLED4SD-80YYHC-W-B
Recessed Downlights 12 Lumens Ndled4Sd 4 Inch Square Universal Dimming 80 Degree Beam Spread 2700K 90Cri White Cone Black Trim
VXBRLED26/PCS2
Vaporproof 2004 Lumens Vxbr 13W Cool Wall Bracketled 277V Swivel Photocell No Globe No Guard
IVAT4-100LWM750WU/WS/LC
Arealights 11361 Lumens Ivelot T4 100W 10000L Wall 5000K Warm 70Cri White 120V-277V Dimmable Multi-Level Sensor With 10 Feet Lens Lightcloud

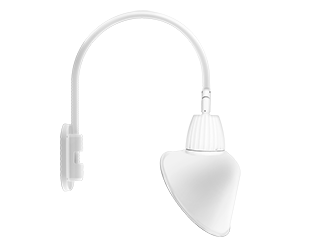

GN2LED26NSACI
