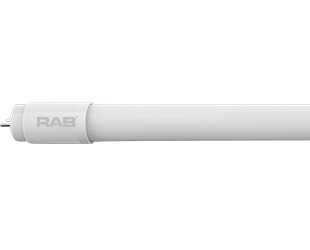

T8-9.5-48G-850-SD-BYP/2
T8-9.5-48G-850-SD-BYP/2
- Replacement for conventional fluorescent T8 and T12 linear tubes
- Integral Driver enables lamp to be wired directly to line voltage without need for an external driver or ballast
- Single ended and double ended wiring method
- Works with non-shunted sockets and shunted sockets.
- Approximately 50% more energy efficient when compared to Fluorescent T8 lamps
- 50,000 hour Lifespan.
- Rated for use in enclosed and open fixtures in dry or damp locations
- Diffused frosted lens will maintain the same light quality over time
- Instant on full brightness
- Environmentally friendly, no mercury used
- NSF Listed: NSF/ANSI Standard 2 - Food Equipment - Splash Zone (Not for Direct Food Zone without additional fixture considerations)
- Internal thermal fuse for added safety
Performance
| Watts | 9W |
| Color Temp | 5000K |
| Lumens | 1,650 lm |
| Efficacy | 174 |
| Color Accuracy | 83 CRI |
| L70 Lifespan | 50,000 Hours |
| Input Voltage | 120-277V |
| Power Factor | >0.9 |
| Flicker | 50%-70% |
| THDi | ≤25% |
Dimensions
Weight: 0.5 lbs
Technical Specifications
Performance
Product Type
Linear
Input Wattage
9.5W
Lumens
1,650lm
Efficacy
174lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Compliance
UL Listed
Suitable for damp locations
Enclosed Fixtures
Suitable for use in enclosed fixtures
Certification Model Number
T10312(T8-9.5-48G-850-SD-BYP/2)
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: PZY1LDJS
DLC Product Code: PZY1LDJS
LED Characteristics
Color Temperature
5000K
Color Accuracy (CRI)
83 CRI
Beam Angle
160°
Construction
Bulb Shape
T8
Endcap Material
Plastic
Enclosure Material
Glass
Installation
Base Type
G13
Electrical
THD
≤25%
Power Factor
>0.9
Flicker
50%-70%
Operating Temperature
-20°C to 45°C (-4°F to 113°F)
Input Voltage
120-277V
Operating Frequency
50/60Hz
Dimming
No
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
\
