Commercial Downlight Field Adjustable

Stay in control.

These field-adjustable, commercial downlights allow you to change both lumen output and color temperature with the flick of a switch, giving you the flexibility to customize various areas with one fixture! Available in 4", 6", 8", and 10" diameters, they're ideal for both new construction and retrofit applications.

Now with universal dimming!

RAB's CR downlight now allows for either 120V TRIAC/ELV or 0-10V dimming control, providing maximum flexibility while minimizing unexpected installation issues in the field. Whether your project is residential, commercial, mixed-use, new construction or remodel, we have you covered.

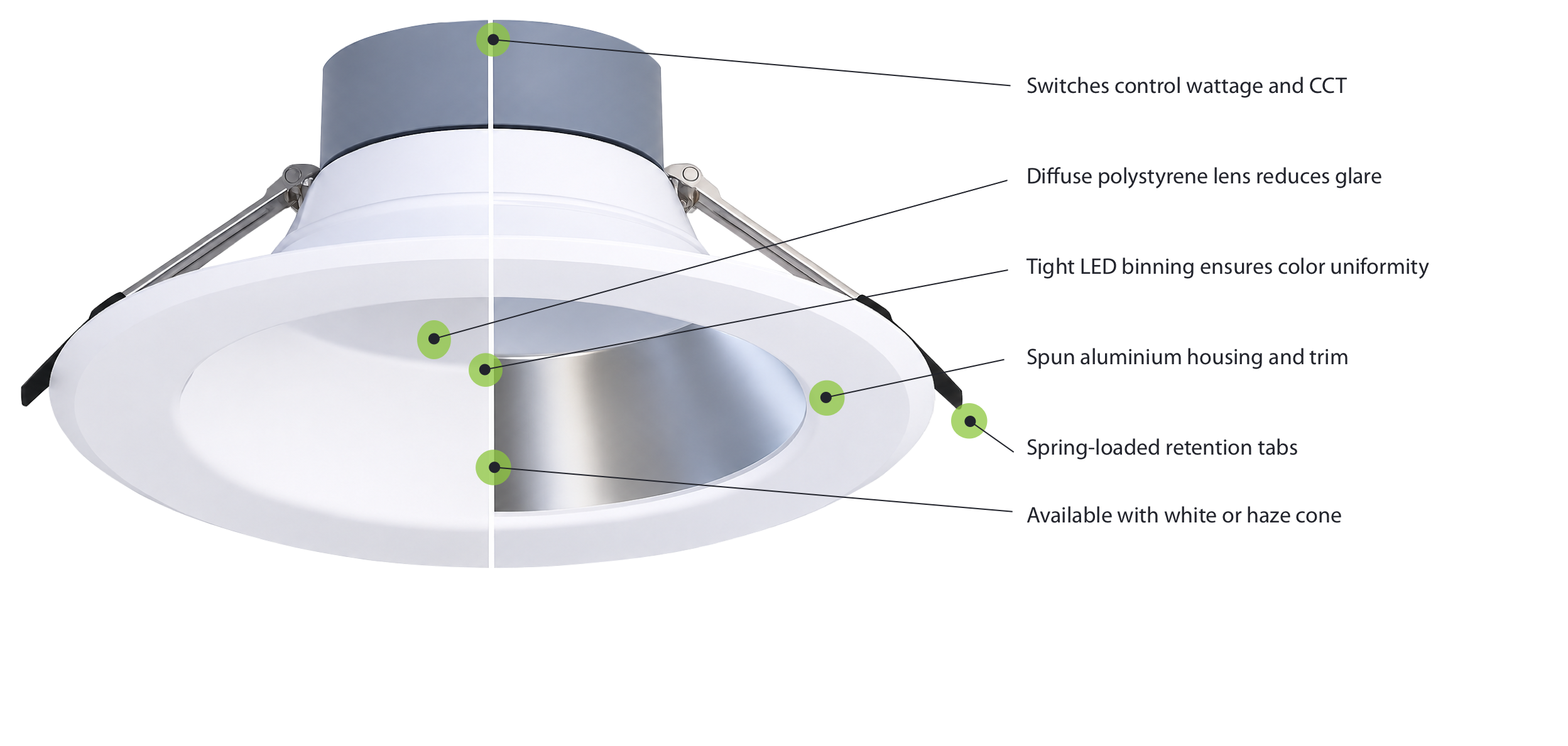

What's under the hood…

CR has a diffuse polystyrene lens that creates smooth, uniform  light and reduces glare without sacrificing lumen output. All models  use a 120-277V driver with universal dimming, and produce 90+ CRI  for the accurate color rendering often vital in commercial applications.

Anywhere you want it.

All models are suitable for use in dry, damp and wet locations, making them perfect for both indoor and outdoor use.

For life’s emergencies.

Emergency lighting is critical for offices, schools, and other applications that need safety measures in place to meet code requirements. All sizes of the CR are available with an offboard battery backup that includes a quick-connector for easy wiring.

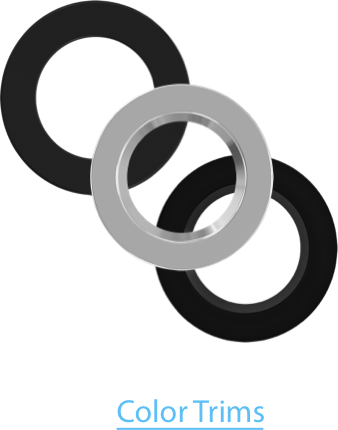

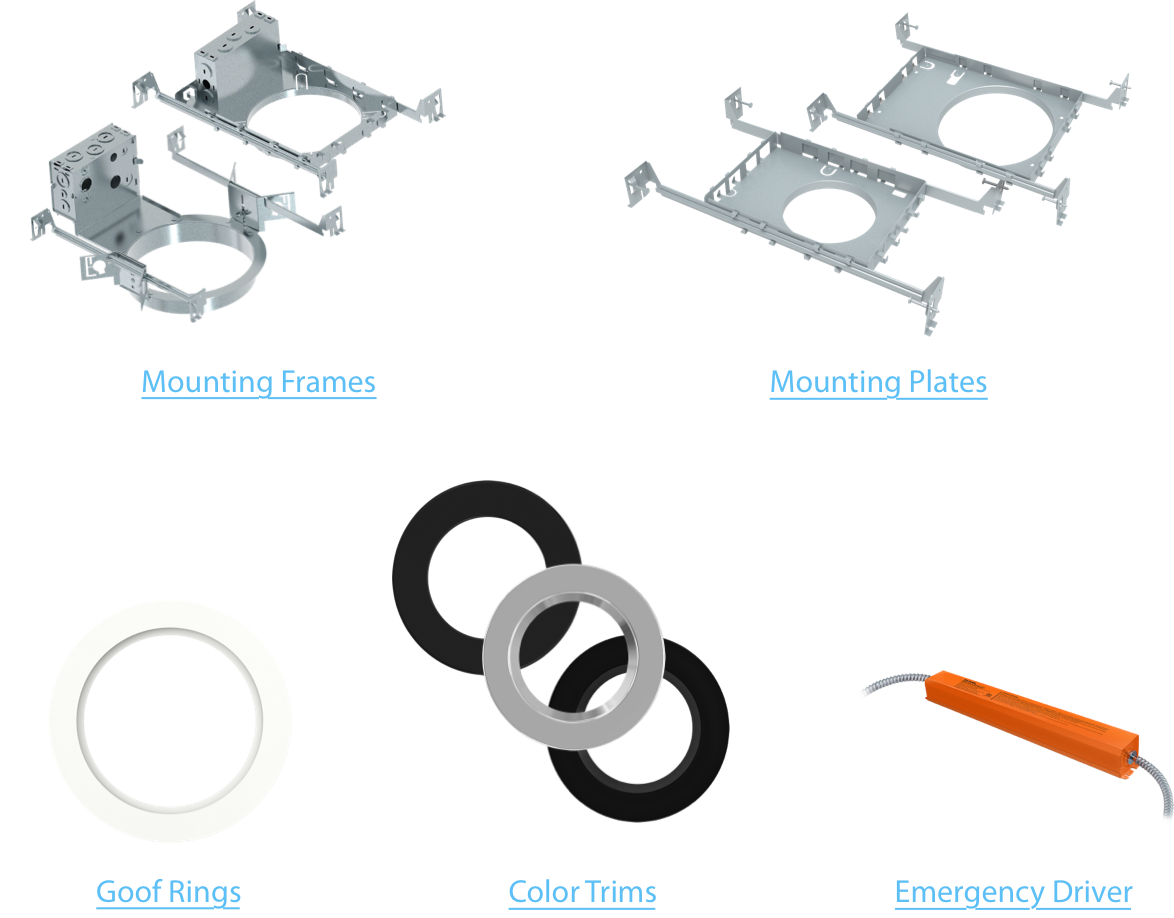

Additional Accessories.

Make it smart.

The Lightcloud Blue XDIM family of dimmers makes it easy to install with any TRIAC/ELV or 0-10V dimmable fixture. Quickly pair to your phone to enjoy wireless control — no hub required. Add the Nano to use voice commands and control your lights from anywhere.

Additional Features

Industry-leading warranty.

The RAB 5-year, no-compromise warranty covers light output, color stability, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

50,000-Hour LED lifespan.

At 10 hours daily use, RAB LEDs are rated to last 13 years, dramatically reducing maintenance and relamping costs.

Title 24.

Ensures lighting systems are properly designed and controlled to reduce energy use while maintaining safe, functional spaces.

Airtight.

Housing certified Air Tight as per ASTM E283.

Energy Star.

For even more savings CR is available in Energy Star models.

UL listed.

Suitable for wet locations.

IC Rated.

Suitable for direct contact with insulation.

Emergency battery.

Models with battery backup supply power for 90 minutes.

NEC compliant.

Suitable for use in closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C3).

Dimming.

Dimmable using compatible TRIAC/ELV dimmers.
