Downlights 3 In 1

Product CSV Sell Sheet Family Spec Sheet Dimmer Compatibility List Instructions

Sheet metal steel housing with durable plastic trim
Available in edge-lit and back-lit versions
Gasket added to meet air-tight requirement
3-in-1 installation options to choose from:
1. Surface mount
2. Ceiling
3. Recessed housing
Five selectable color temperatures

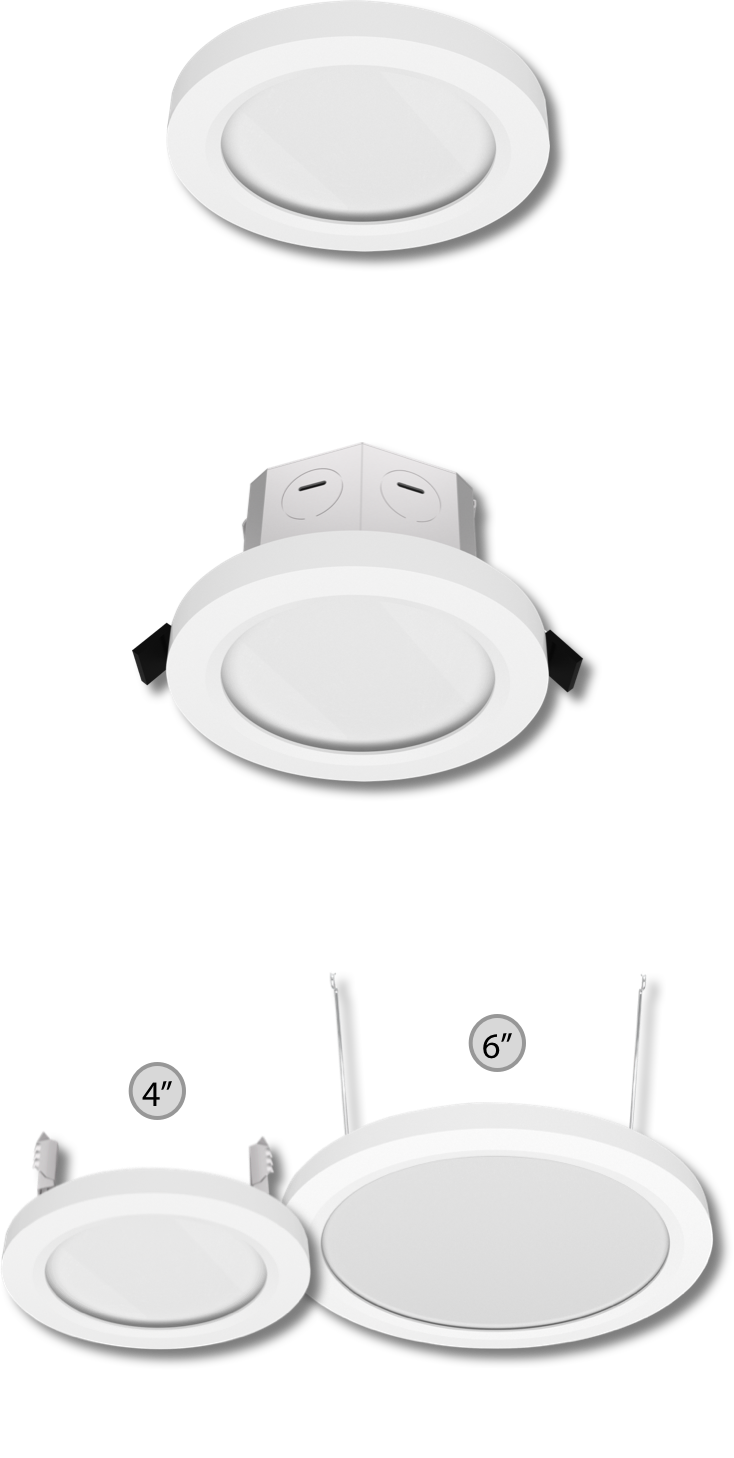

Multiple mounting options.

The SM3N1 offers three mounting options in one compact fixture. Easily mounts to junction boxes, into ceilings, or in recessed housings.

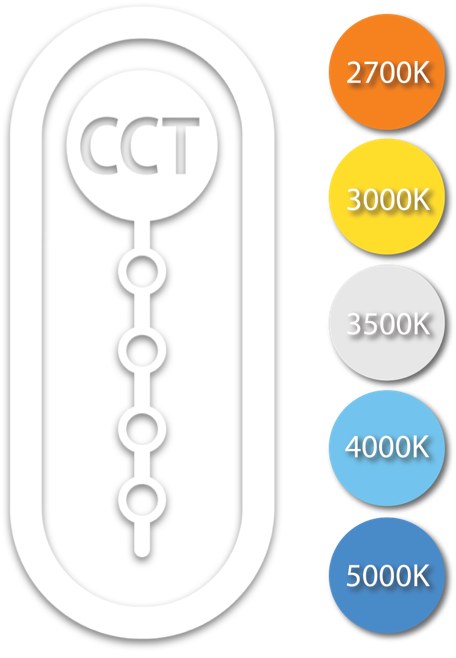

Selectable CCT.

All SM3N1 models have five field-adjustable color temperatures that maximize versatility with the flick of a switch.

Anywhere you want it.

All models are suitable for use in dry, damp, and wet locations, making it a cinch to add lighting to kitchens, hallways, stairways, bathrooms, porches, closets*… you name it!

*Compliant with NEC Sec. 410.16 (A)(1)  and 410.16 (C)(1).

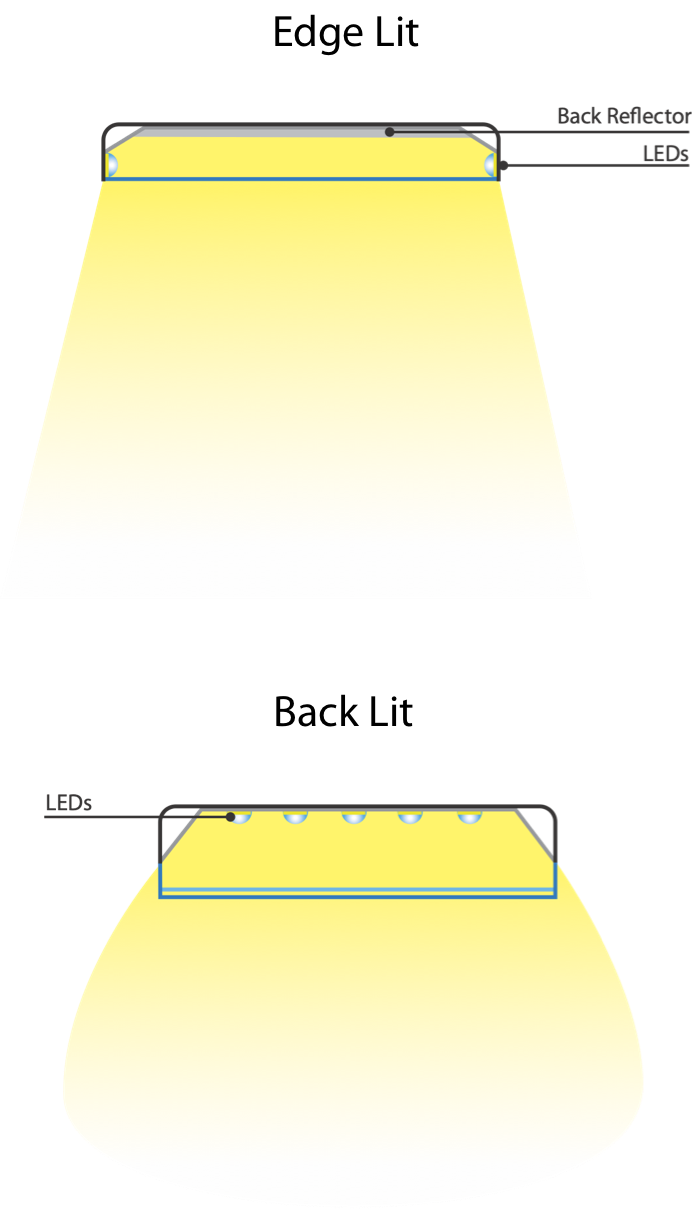

Two types of output.

This surface mount is available with two types of distribution. Back-lit models deliver light in a vertical pattern, putting more light directly on the work surface, while edge-lit models disperse a wider pattern that reduces glare.

50,000-Hour LED Lifespan.

Dramatically reduces maintenance and re-lamping costs

120V

120V models.

Dimming

Triac dimming down to 10%.

Wet Rated

Safe to use in wet locations.

90 CRI

Accurate color rendering.

IC Rated

Rated for direct contact with insulation.

Airtight

Improves energy efficiency with an air-tight seal.

Anti-UV Plastic

Prevents discoloration from prolonged sun exposure.

Additional Features

5-Year, no compromise warranty.

The RAB 5-year, no-compromise warranty covers light output, color stability, driver performance paint finish and labor. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

50,000-Hour LED lifespan.

At 10 hours daily use, RAB LEDs are rated to last 13 years, dramatically reducing maintenance and relamping costs.

UL listed.

Suitable for wet locations.

JA8 compliant.

Can be used to comply with 2019 Title 24 Part 6 high-efficacy LED light source requirements.

Title 20 compliant.

Energy Star.

For even more savings, Surface Mount 3 in 1 is available in Energy Star models.

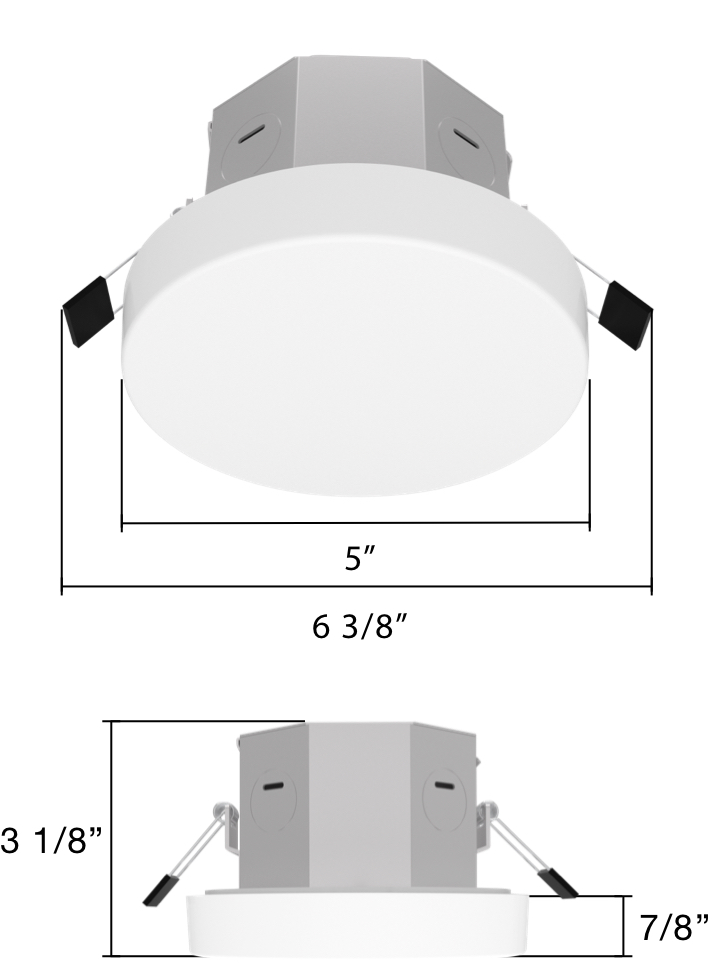

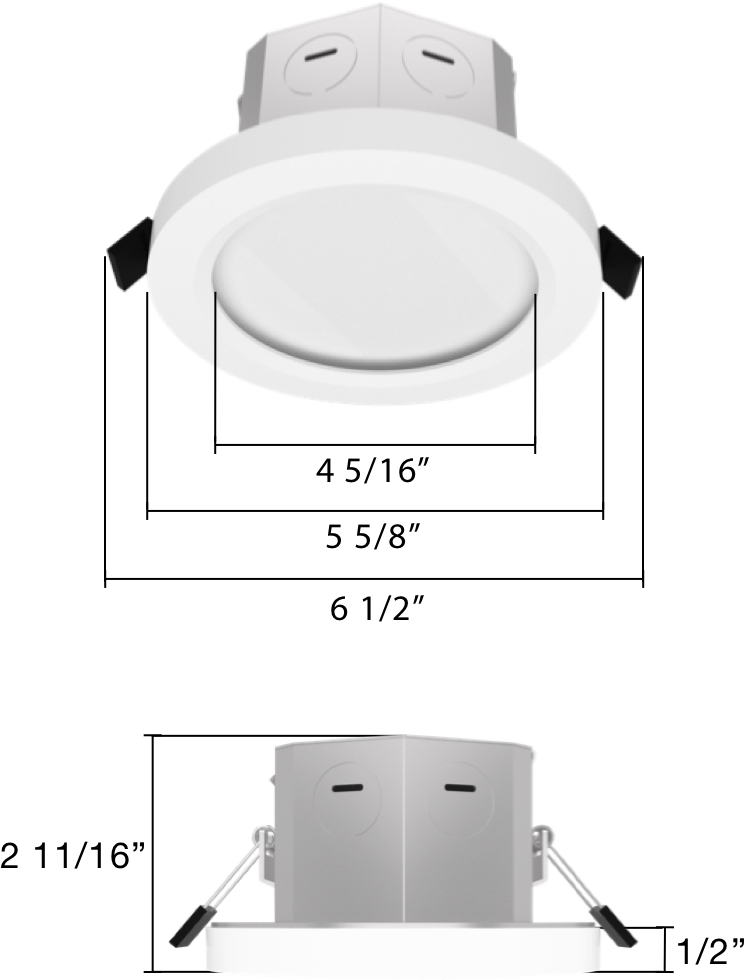

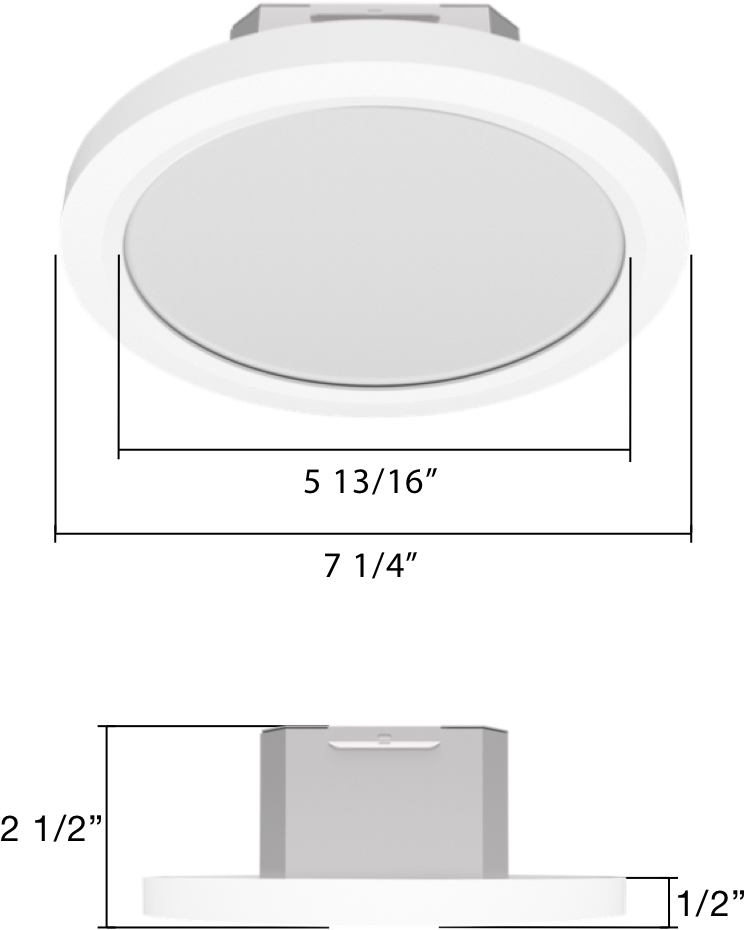

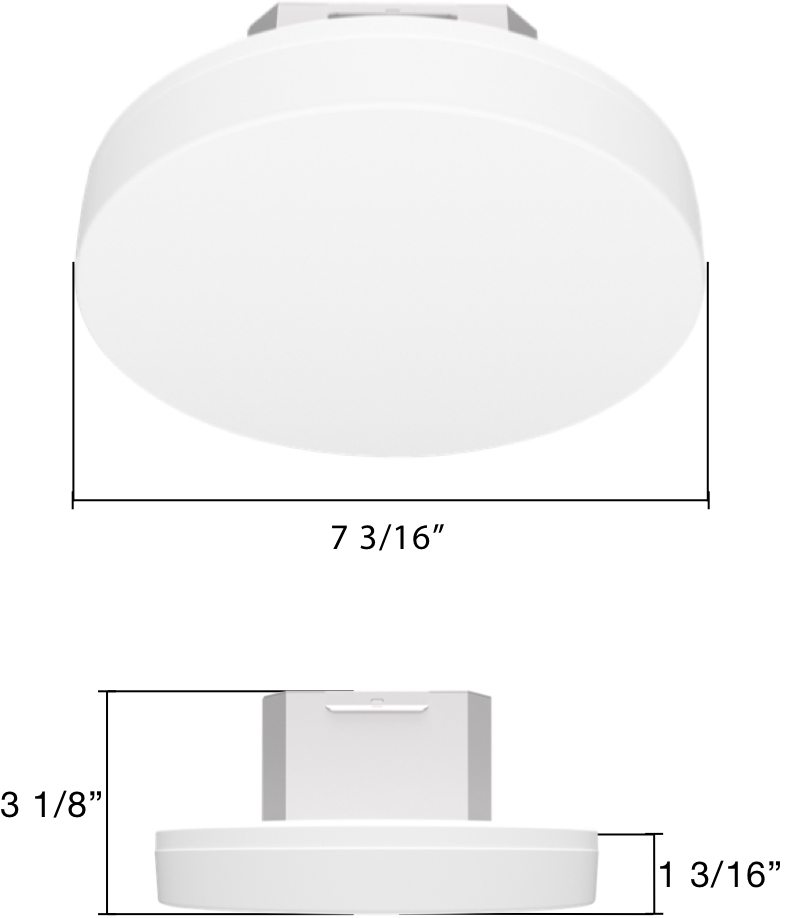

Dimensions

4” Downlight

SM3N1-4R-10-9CCT-120-W-BL

SM3N1-4R-10-9CCT-120-W-EL

6” Downlight

SM3N1-6R-12-9CCT-120-W-BL

SM3N1-6R-12-9CCT-120-W-EL

Sheet metal steel housing with durable plastic trim
Available in edge-lit and back-lit versions
Gasket added to meet air-tight requirement
3-in-1 installation options to choose from:
1. Surface mount
2. Ceiling
3. Recessed housing
Five selectable color temperatures
