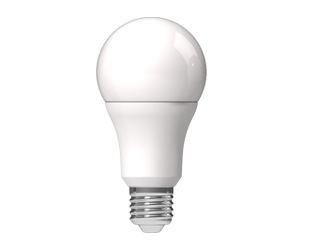

A19-11-E26-922/30-WGD

Spec Sheet IES File Dimmer Compatibility List LM79 FCC Caution Spec Sheet EZ Layout

Replacement for conventional decorative lamps

Filament LED construction gives a unique traditional look and feel for decorative and ambient applications

Rated for use in enclosed and open fixtures in dry and damp locations

Longer lifespan compared to legacy equivalents minimizes replacement and maintenance costs

ENERGY STAR Compliant, UL Listed

Smooth warm to dim transition between 2200K to 3000K color temperatures

Uniform dimming down to 10% (See Dimmer Compatibility List)

View Technical Specs

View Price & Availability

Performance

Watts	11W
Color Temp	2200/3000K
Lumens	1,100 lm
Efficacy	100
Color Accuracy	90 CRI
L70 Lifespan	15,000 Hours

Input Voltage	120V
Power Factor	0.7
Flicker	N/A
THDi	57.1

EZ-Layout

Create Custom Lighting Layout

Dimensions

Technical Specifications

Performance

Product Type

A-Line

Input Wattage

11W

Lumens

1,100lm

Efficacy

100lm/W

L70 Lifespan

15,000-Hour LED lifespan based on IES LM-70 results

Wattage Equivalency

75W Incandescent

Compliance

UL Listed

Suitable for damp locations

Enclosed Fixtures

Suitable for use in enclosed fixtures

LED Characteristics

Color Temperature

2200/3000K

Color Accuracy (CRI)

>90 CRI

Beam Angle

230°

Electrical

THD

57.10%

Power Factor

0.7

Dimmable

Yes

Operating Temperature

-20°C to 45°C (-4°F to 113°F)

Input Voltage

120V

Operating Frequency

60 Hz

Construction

Shape

A19

Endcap Material

Polycarbonate

Enclosure Material

Plastic

Installation

Base Type

E26 Edison

Other

3-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of three (3) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
