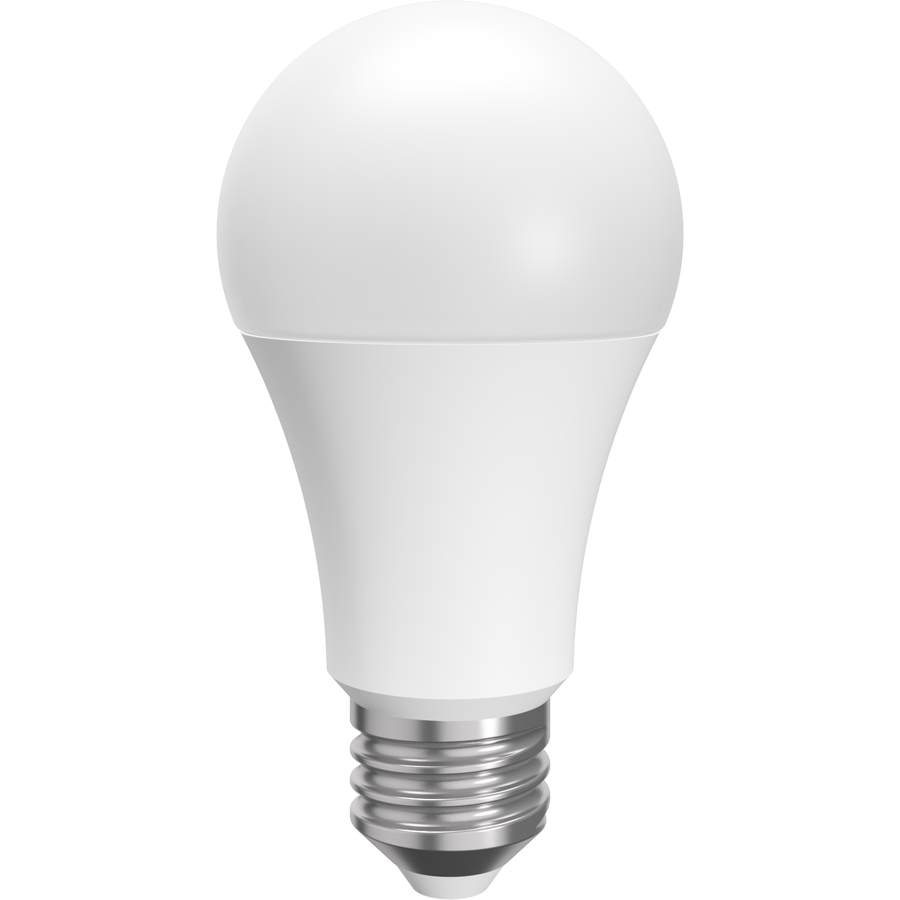

A19-12-E26-950-DIM
A19-12-E26-950-DIM
- Energy-efficient replacement for incandescent and halogen lamps
- Durable plastic construction reduces risk of breakage
- Rated for use in enclosed and open fixtures in dry or damp locations
- Frosted lens delivers smooth, diffuse light
- Longer lifespan compared to legacy equivalents minimizes replacement and maintenance costs
Performance
| Watts | 11W |
| Color Temp | |
| Lumens | 1,100 lm |
| Efficacy | 100 |
| Color Accuracy | 5000K CRI |
| L70 Lifespan |
| Type | |
| 120V | |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 11W |
Dimensions
Weight: 0.1 lbs
Technical Specifications
Performance
Product Type
A-line, 90CRI Dimmable Title 20 Compliant
Description
Exceptional color accuracy and smooth dimming come together in Title 20-compliant A-line LED lamps.
Wattage Equivalency
75W Incandescent
Input Wattage
11W
Lumens (Nominal)
1,100lm
Efficacy
100lm/W
L70 Lifespan
15,000-Hour LED lifespan based on IES LM-70 results
Electrical
Driver
Constant Current 120V 50/60 Hz; 120V: 95mA
THD
<30%
Power Factor
0.9
Dimmable
Yes, dimmable down to 10% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.
Input Voltage
120V
Flicker
<30%
Construction
Operating Temperature Range
-4°F - 104°F (-20°C - 40°C)
Shape
A19
Finish
White
Endcap Material
Nickel-plated aluminum
Enclosure Material
Constructed from frosted, shatter-resistant polycarbonate
Lens Finish
Frosted
LED Characteristics
Beam Angle
220°
Color Temperature
5000K
Color Accuracy (CRI)
≥90
R9 Value
High color performance with R9 greater than 50
Color Consistency
<4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Installation
Base Type
E26 Edison
Compliance
ETL Listed
This product has been tested by Intertek and found in compliance with accepted national standards.
Environment
Suitable for use indoors in dry and damp environments.
Fixture Rating
Suitable for use in enclosed fixtures
Energy Star Approved
No
DLC Listed
No
Certification Model Number
A30052(A19-12-E26-950-DIM)
California Title 20 Compliant
Can be used to conform with the requirements of California Title 20
California Title 24 JA8 Compliant
No
California Energy Commission (CEC) Status
Lawful for Sales in California
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Other
3-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of three (3) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
