• Replacement for High-output Incandescent or lower wattage metal halide and high pressure sodium lamps
  • Rated for use in enclosed and open fixtures in dry or damp locations
  • Ideal for post top, bollards, and outdoor corridor lighting
  • Suitable for use in a base-up or base-down position
View Technical Specs
Performance
Watts 5W
Color Temp 5000K
Lumens 480 lm
Efficacy 96
Color Accuracy 80 CRI
L70 Lifespan 15,000 Hours
Type Constant Current
120V 0.07A
208V
240V
277V
Input Watts 5W

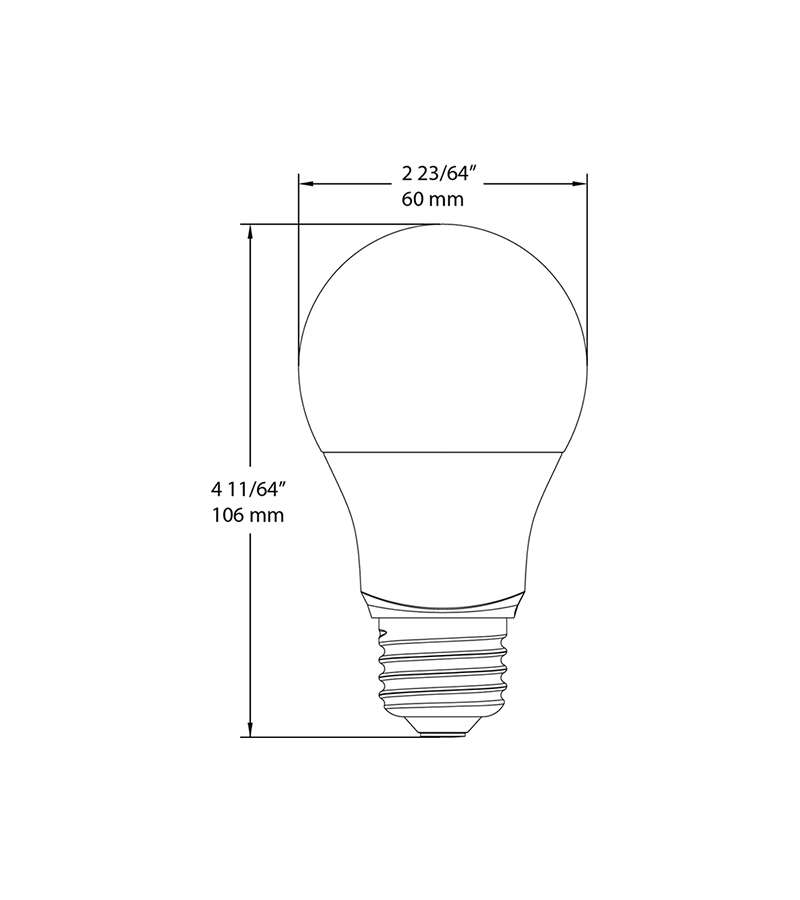

Dimensions
Link to Dimension Drawing
Technical Specifications
Performance
Product Type
A-Line
Input Wattage
5W
Lumens
480lm
Efficacy
96lm/W
L70 Lifespan
15,000-Hour LED lifespan based on IES LM-70 results
Wattage Equivalency
40W Incandescent
Compliance
UL Listed
Suitable for damp locations
Enclosed Fixtures
Suitable for use in enclosed fixtures
LED Characteristics
Color Temperature
5000K
Color Accuracy (CRI)
80 CRI
Beam Angle
230°
Electrical
Power Factor
0.7
Dimmable
Yes
Operating Temperature
-20°C to 45°C (-4°F to 113°F)
Input Voltage
120V
Operating Frequency
60 Hz
Construction
Bulb Shape
A19
Installation
Base Type
E26 Edison
Other
3-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of three (3) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
