A19-6-9CCT-DIM

Spec Sheet Dimmer Compatibility List FCC Caution Family Spec Sheet Spec Sheet

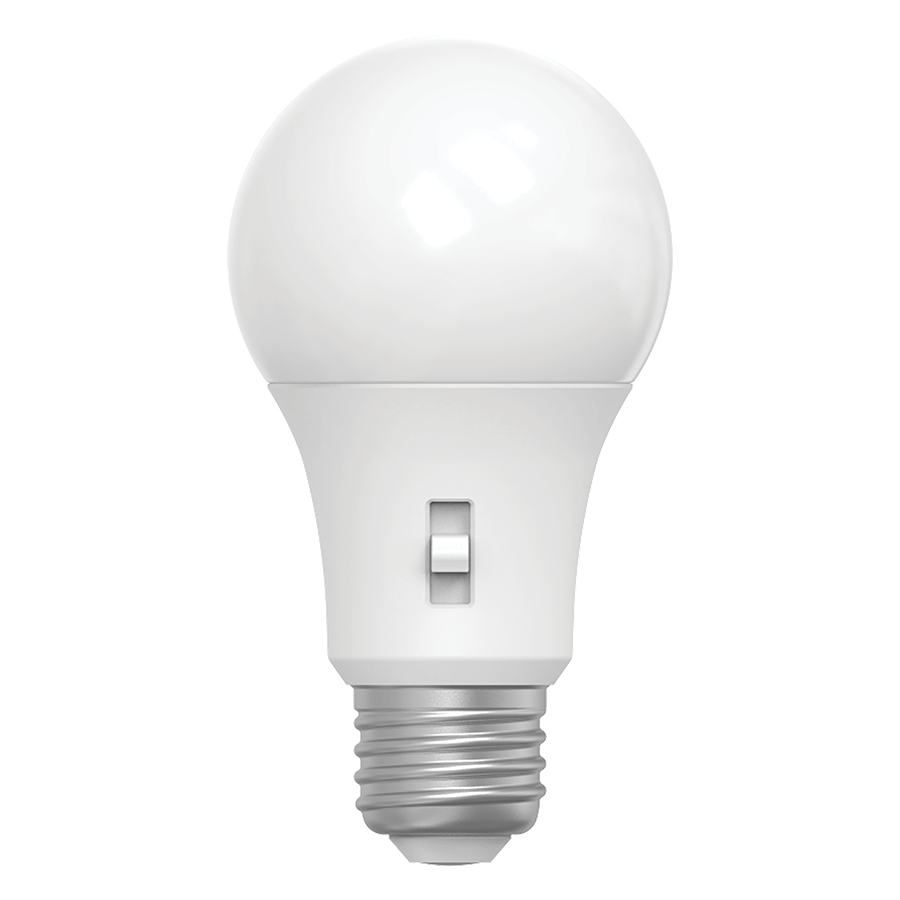

A19-6-9CCT-DIM

CCT- adjustable color temperature 2700/3000/3500/4000/5000K

Energy efficient replacement for incandescent and halogen lamps

Produces rich and vibrant colors >90CRI

Longer lifespan compared to legacy equivalents minimizes replacement and maintenance costs

Phase Dimmable down to 10%, see Dimmer Compatibility List

View Technical Specs

View Price & Availability

Performance

Watts	6W
Color Temp	2700/3000/3500/4000/5000K
Lumens	486-598 lm
Efficacy	97-106 lm/W
Color Accuracy	90 CRI
L70 Lifespan	25,000 Hours

Input Voltage	120V
Power Factor	0.7
Flicker	<30%
THDi	N/A

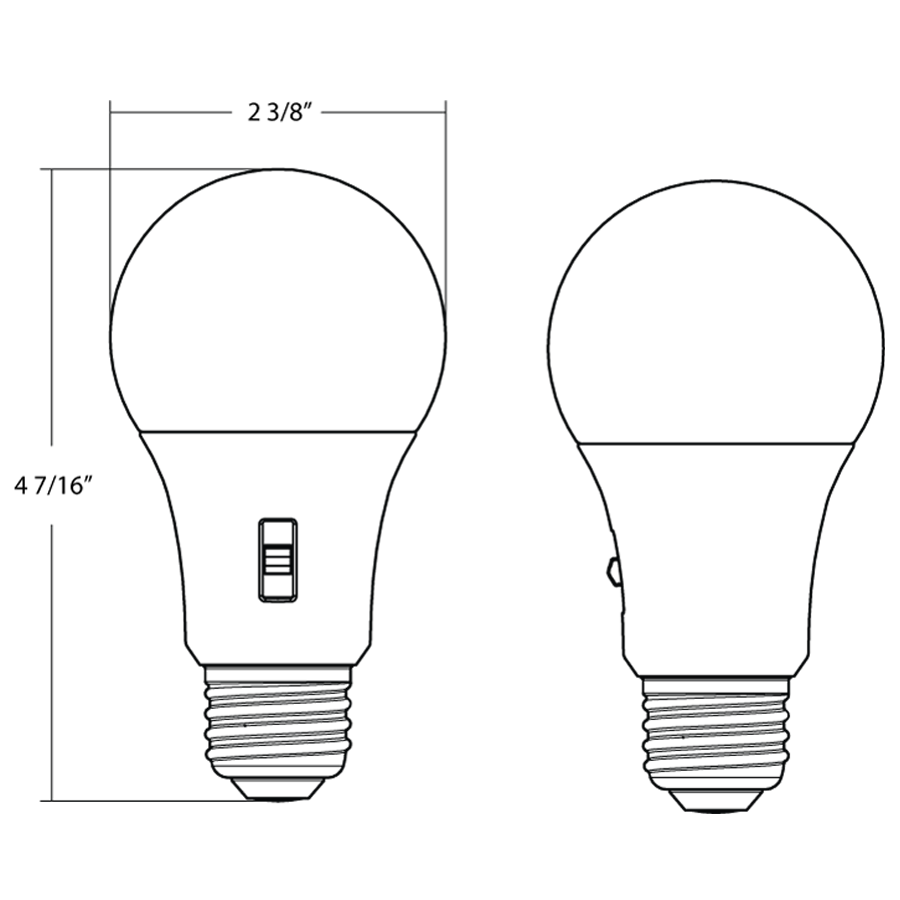

Dimensions

Weight: 0.1 lbs

Technical Specifications

Performance

Product Type

A-Line

Description

CCT-selectable lamps replace up to 100W conventional incandescent.

Wattage Equivalency

40W Incandescent

Input Wattage

Lumens

486lm @ 2700K
511lm @ 3000K
540lm @ 3500K
532lm @ 4000K
598lm @ 5000K

Efficacy

97lm/W @ 2700K
101lm/W @ 3000K
106lm/W @ 3500K
106lm/W @ 4000K
102lm/W @ 5000K

L70 Lifespan

25,000-Hour LED lifespan based on IES LM-70 results

Electrical

Power Factor

>0.7

Dimmable

Yes, dimmable down to 10% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.

Input Voltage

120V

Operating Frequency

60 Hz

Input Current @ 120V (mA)

60mA

Operating Temperature

-4°F to 113°F (-20°C to 45°C)

Flicker

<30%

LED Characteristics

Beam Angle

160°

Color Temperature

Field adjustable via dip switch 2700/3000/3500/4000/5000K
Default setting: 3000K

Color Accuracy (CRI)

≥90

R9 Value

High color performance with R9 no greater than 0

Color Consistency

<4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Installation

Base Type

E26 Edison

Construction

Shape

A19

Finish

White

Endcap Material

Aluminum

Lens Finish

Frosted

Compliance

Listings

UL Listed

Environment

Suitable for use indoors in dry and damp environments.

Fixture Rating

Suitable for use in enclosed fixtures

Energy Star Approved

Certification Model Number

A10121(A19-6-9CCT-DIM)

California Title 20 Compliant

Can be used to conform with the requirements of California Title 20

California Title 24 JA8 Compliant

California Energy Commission (CEC) Status

Lawful for Sales in California

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Other

3-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of three (3) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
