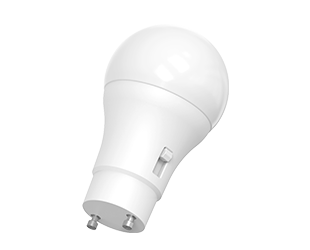

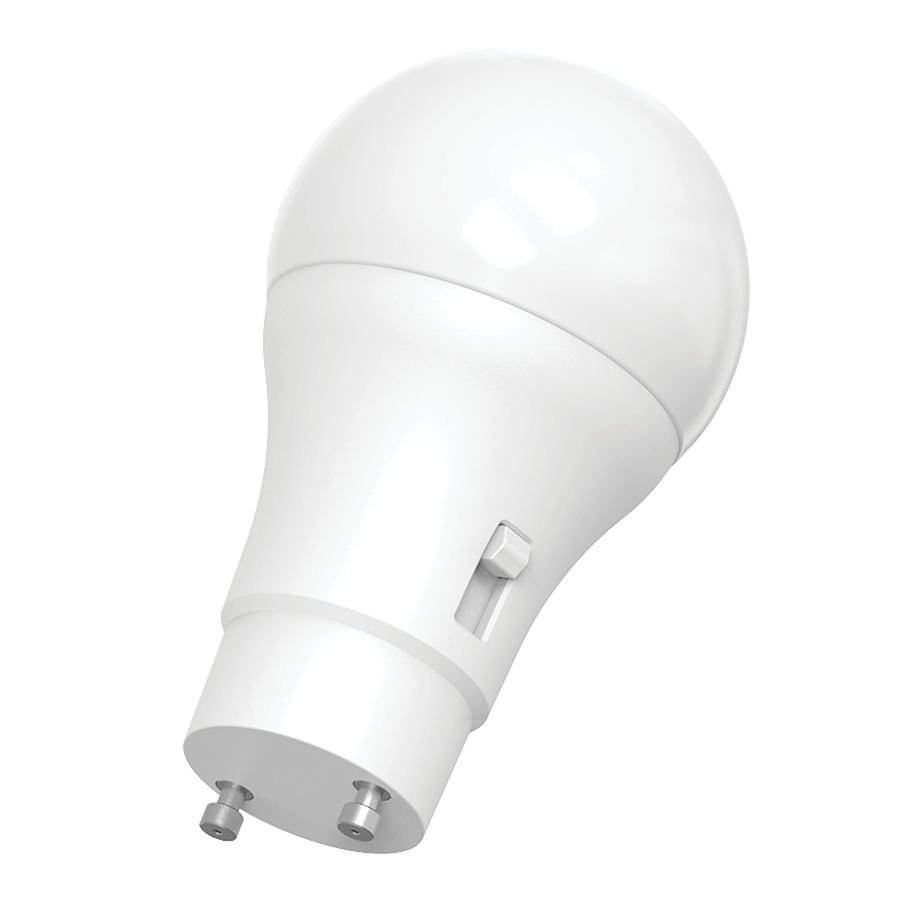

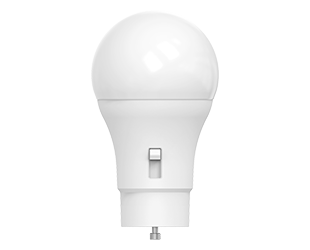

A19-8-GU24-9CCT-DIM
A19-8-GU24-9CCT-DIM
- CCT- adjustable color temperature 2700/3000/3500/4000/5000K
- Energy efficient replacement for incandescent and halogen lamps
- Produces rich and vibrant colors >90CRI
- Longer lifespan compared to legacy equivalents minimizes replacement and maintenance costs
- Phase Dimmable down to 10%, see Dimmer Compatibility List
Performance
| Watts | 8W |
| Color Temp | 2700/3000/3500/4000/5000K |
| Lumens | 914-1,024 lm |
| Efficacy | 117-128 lm/W |
| Color Accuracy | 90 CRI |
| L70 Lifespan | 25,000 Hours |
| Input Voltage | 120V |
| Power Factor | 0.7 |
| Flicker | <30% |
| THDi | N/A |
Dimensions
Weight: 0.1 lbs
Technical Specifications
Performance
Product Type
A-Line
Description
CCT-selectable lamps replace up to 100W conventional incandescent.
Wattage Equivalency
60W Incandescent
Input Wattage
8W
Lumens
914lm @ 2700K
967lm @ 3000K
1,008lm @ 3500K
1,024lm @ 4000K
924lm @ 5000K
967lm @ 3000K
1,008lm @ 3500K
1,024lm @ 4000K
924lm @ 5000K
Efficacy
117lm/W @ 2700K
123lm/W @ 3000K
127lm/W @ 3500K
128lm/W @ 4000K
120lm/W @ 5000K
123lm/W @ 3000K
127lm/W @ 3500K
128lm/W @ 4000K
120lm/W @ 5000K
L70 Lifespan
25,000-Hour LED lifespan based on IES LM-70 results
Electrical
Power Factor
>0.7
Dimmable
Yes, dimmable down to 10% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.
Input Voltage
120V
Operating Frequency
60 Hz
Input Current @ 120V (mA)
90mA
Operating Temperature
-4°F to 113°F (-20°C to 45°C)
Flicker
<30%
LED Characteristics
Beam Angle
160°
Color Temperature
Field adjustable via dip switch 2700/3000/3500/4000/5000K
Default setting: 3000K
Default setting: 3000K
Color Accuracy (CRI)
≥90
R9 Value
High color performance with R9 no greater than 0
Color Consistency
<4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Installation
Base Type
GU24
Construction
Shape
A19
Finish
White
Endcap Material
Aluminum
Lens Finish
Frosted
Compliance
Listings
UL Listed
Environment
Suitable for use indoors in dry and damp environments.
Fixture Rating
Suitable for use in enclosed fixtures
Energy Star Approved
No
Certification Model Number
A10125(A19-8-GU24-9CCT-DIM)
California Title 20 Compliant
Can be used to conform with the requirements of California Title 20
California Title 24 JA8 Compliant
No
California Energy Commission (CEC) Status
Lawful for Sales in California
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Other
3-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of three (3) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
