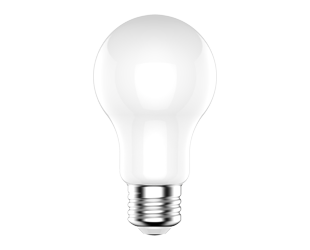

A19-9-E26-930-F-F

Replacement for conventional decorative lamps

Filament LED construction gives a unique traditional look and feel for decorative and ambient applications

Produces rich and vibrant colors, >90CRI

Rated for use in enclosed and open fixtures in dry and damp locations

Longer lifespan compared to legacy equivalents minimizes replacement and maintenance costs

Title 20 Compliant, ENERGY STAR Compliant, UL Listed

Smooth uniform dimming down to 10% (See Dimmer Compatibility List)

View Technical Specs

View Price & Availability

Performance

Watts	9W
Color Temp	3000K
Lumens	810 lm
Efficacy	90
Color Accuracy	90 CRI
L70 Lifespan	15,000 Hours

Type	Constant Current
120V	0.09A
208V
240V
277V
Input Watts	9W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 0.1 lbs

Technical Specifications

Performance

Product Type

Decorative

Input Wattage

Lumens

810lm

Efficacy

90lm/W

L70 Lifespan

15,000-Hour LED lifespan based on IES LM-70 results

Wattage Equivalency

60W Incandescent

Compliance

Enclosed Fixtures

Suitable for use in enclosed fixtures

LED Characteristics

Color Temperature

3000K

Color Accuracy (CRI)

>90 CRI

Beam Angle

360°

Electrical

Power Factor

>0.7

Dimmable

Yes, down to 10%

Flicker

<30%

Operating Temperature

-20°C to 45°C (-4°F to 113°F)

Input Voltage

120V

Operating Frequency

60 Hz

Construction

Bulb Shape

A19

Endcap Material

Aluminum

Enclosure Material

Glass

Installation

Base Type

E26 Edison

Other

3-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of three (3) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
