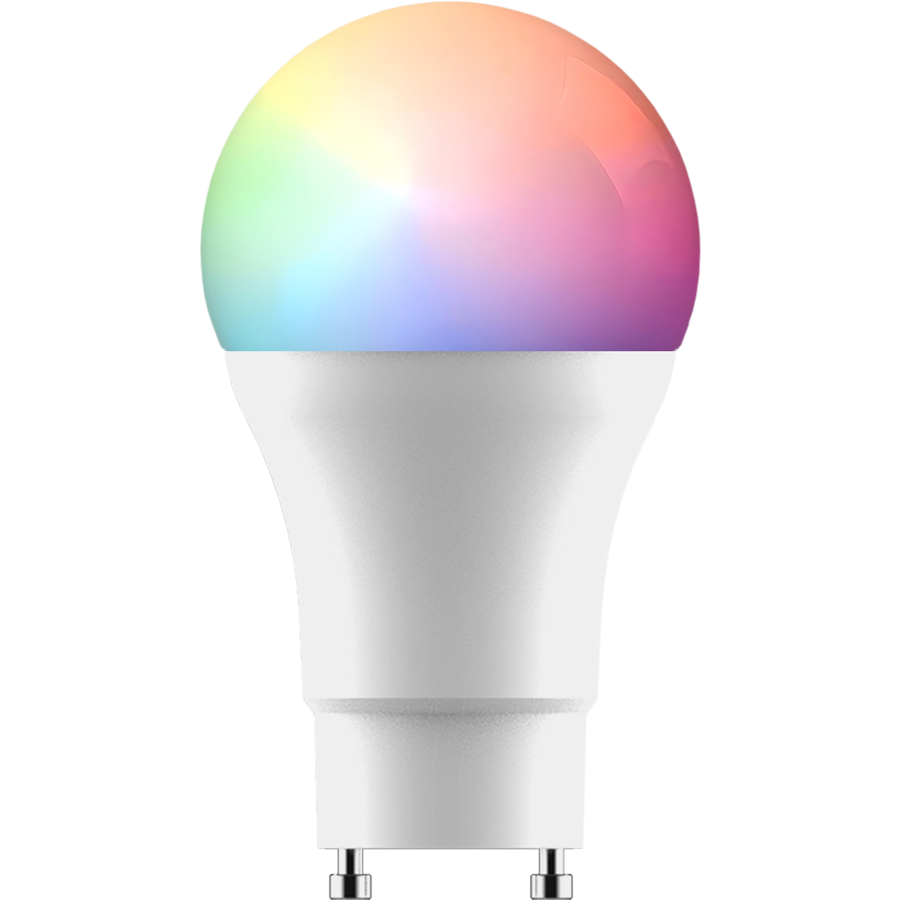

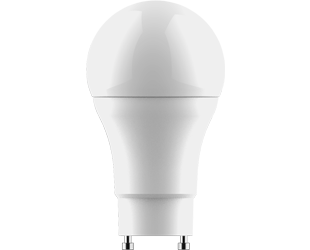

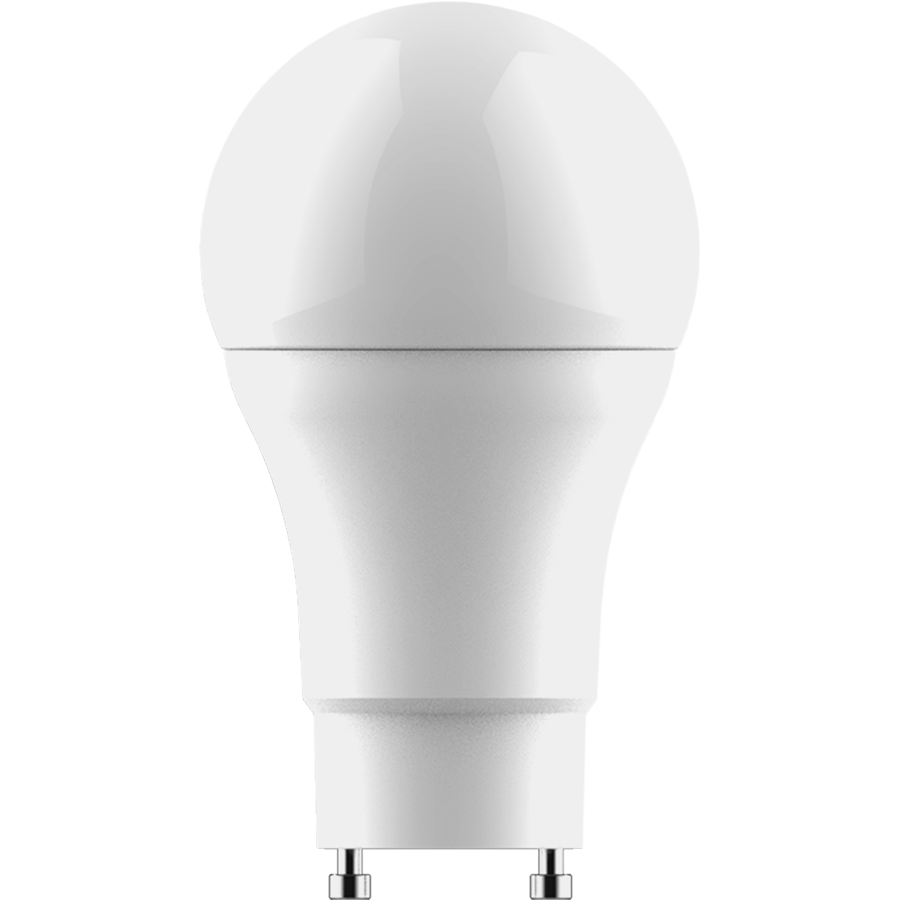

A19GU24/RGB

Spec Sheet IES File Instructions Sell Sheet Family Spec Sheet Spec Sheet EZ Layout

A19GU24/RGB

View Technical Specs

View Price & Availability

Performance

Watts	8W
Color Temp	Tunable White 2200K-6500K (16+ million colors)
Lumens	800 lm
Efficacy	100
Color Accuracy	90 CRI
L70 Lifespan	25,000 Hours

Type	Constant Current
120V	0.75A
208V
240V
277V
Input Watts	8W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 0.1 lbs

Technical Specifications

Lightcloud

Lightcloud Blue Installed

Lightcloud Blue is a Bluetooth Mesh wireless lighting control system that allows you to control RAB's various compatible devices. With RAB's patented Rapid Provisioning technology, devices can be quickly and easily commissioned for residential and large commercial applications using the Lightcloud Blue mobile app. Each device in a system can communicate with any other device, eliminating the need for a Gateway or Hub and maximizing the control system's reach.

DLC system - N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)

Learn more at www.rablighting.com/feature/new-lightcloud-blue.

Gateway Required

Communication Protocol

Bluetooth Mesh

SmartShift

SmartShift is the most advanced - yet easiest to use - circadian lighting system, which syncs white color tuning with the local sunrise and sunset.
Requires the NANO/LCB (sold separately)

Range

Indoor: Up to 60 feet between standard building materials. Building materials such as brick, concrete, and steel construction may require additional Lightcloud Blue devices to extend around an obstruction; Up to 200 feet clear line of sight.

Outdoor: Up to 200 feet clear line of sight; Up to 120 feet around corners

Spacing Criteria

Lightcloud Blue devices should be placed within the specified range to communicate within the Bluetooth Mesh network.

Factory Reset

Method 1: Delete from App
Open the app and access the device settings for the paired device. Be sure that the device is online and select 'Delete'. The device will flash on/off 5 times and return to full brightness.

Method 2: Manual
Power the device off and on 5x consecutively. Do not allow less than 4s to elapse from switching off to on. Do not allow more than 2s to elapse from switching on to off. The device will flash 3x, then reset to 100% brightness at default CCT.

Method 3: Rapid Reset Tool
The Rapid Reset process must be done by a professional electrician qualified by RAB. Reach out to your RAB sales manager to request a Rapid Reset Tool. The tool simply needs to be placed directly on the device for 2s or until the lamp/luminaire flashes 3x, then resets to 100% brightness at the default CCT. See the product instruction sheet for more details.

Product Overview

Product Type

A19 RGBW

Performance

Description

Color-changing smart lamps with Lightcloud Blue. Customizable scenes and schedules, and SmartShift circadian lighting.

Wattage Equivalency

60W Incandescent

Input Wattage

Lumens (Nominal)

800lm

Efficacy

100lm/W

L70 Lifespan

25,000-Hour LED lifespan based on IES LM-70 results

Electrical

Driver

Constant Current 120V 60Hz; 120V: 75mA

Power Factor

>0.5

Dimmable

Yes via the Lightcloud Blue mobile app and devices. This product will not operate properly when connected to a standard (incandescent) dimmer or dimming control.

Input Voltage

120V

Operating Temperature

-13°F to 113°F (-25°C to 45°C)

LED Characteristics

Beam Angle

220°

Color Temperature

Default: 3000K
Adjustable using the Lightcloud Blue mobile app
Tunable White 2200K - 6500K

Color Tuning

Yes, 16+ million colors using Lightcloud Blue

Color Accuracy (CRI)

90 CRI

Natural Spectrum

R9 Value

High color performance with R9 greater than 0

Color Consistency

<4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Installation

Base Type

GU24 Bi-pin

Construction

Shape

A19

Finish

White

Lens Finish

Frosted

Compliance

Listings

UL Listed

Environment

Suitable for use indoors in dry environments.

Fixture Rating

Suitable for use in open fixtures

DLC Listed

This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.

DLC NLC Listed

The Lightcloud control system is on the Design Lights Consortium (DLC) Network Lighting Controls (NLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.

DLC system - N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)

California Title 20 Compliant

Can be used to conform with the requirements of California Title 20

California Title 24 JA8 Compliant

California Energy Commission (CEC) Status

Lawful for Sales in California

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
