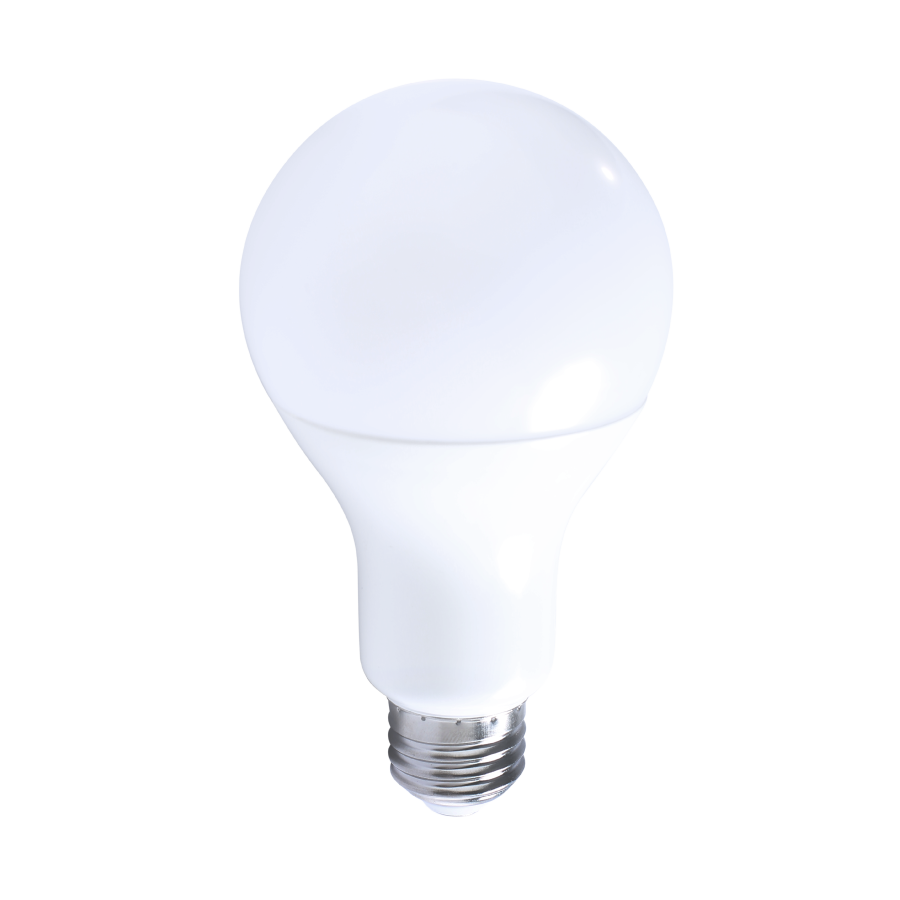

A21-16.5-E26-940-ND-UNV

Spec Sheet FCC Caution Family Spec Sheet Spec Sheet

Replacement for High output incandescent or Metal Halide and High Pressure Sodium HID Lamps

Commercial Grade

Large metal heatsink for optimal heat dissipation

In HID retrofit applications - Integral Driver enables lamp to be wired directly to line voltage. Must bypass ballast

Rated for use in enclosed and open fixtures in dry or damp locations

Ideal for post top, bollards, and outdoor corridor lighting

Environmentally friendly, no mercury used

UL Listed, ENERGY STAR Compliant

Non-Dimmable

Universal Voltage 120 through 277V

50,000 hour Lifespan

5 Year No Compromise Warranty

View Technical Specs

View Price & Availability

Performance

Watts	16W
Color Temp	4000K
Lumens	2,000 lm
Efficacy	121
Color Accuracy	90 CRI
L70 Lifespan	25,000 Hours

Type	Constant Current
120V	0.17A
208V
240V
277V
Input Watts

Dimensions

Weight: 0.2 lbs

Technical Specifications

Performance

Product Type

A-line Commercial Bulbs

Description

Ideal replacement for legacy HID or high output incandescent bulbs.

Wattage Equivalency

Equivalent to 125W Metal Halide

Input Wattage

16.5W

Lumens

2,000lm

Efficacy

121lm/W

L70 Lifespan

25,000-Hour LED lifespan based on IES LM-70 results

Electrical

Power Factor

>0.7

Dimmable

Dimming Type

Not suggested for dimming applications

Input Voltage

120-277V

Operating Frequency

50/60Hz

LED Characteristics

Color Temperature

4000K

Color Accuracy (CRI)

≥90

R9 Value

High color performance with R9 no less than 0

Color Consistency

<4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Construction

Base Type

E26 Edison

Finish

White

Bulb Shape

A21

Endcap Material

Aluminum

Enclosure Material

Polycarbonate

Lens Finish

Frosted

Compliance

Listings

UL Listed

Fixture Rating

Suitable for use in enclosed fixtures

Energy Star Approved

No.
There is no product category on Energy Star for this lamp to qualify under.

T20 Compliant

Can be used to conform with the requirements of California Title 20

California Title 24 JA8 Compliant

Not Compliant

California Energy Commission (CEC) Status

Lawful for Sales in California

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15B of the FCC Rules

Other

Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of three (3) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Note

All values are typical (tolerance +/- 10%)

Buy American Act Compliance

RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
