A21-17-E26-9CCT-DIM-UNV

Spec Sheet IES File Instructions Sell Sheet Family Spec Sheet Spec Sheet EZ Layout

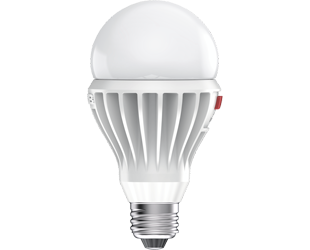

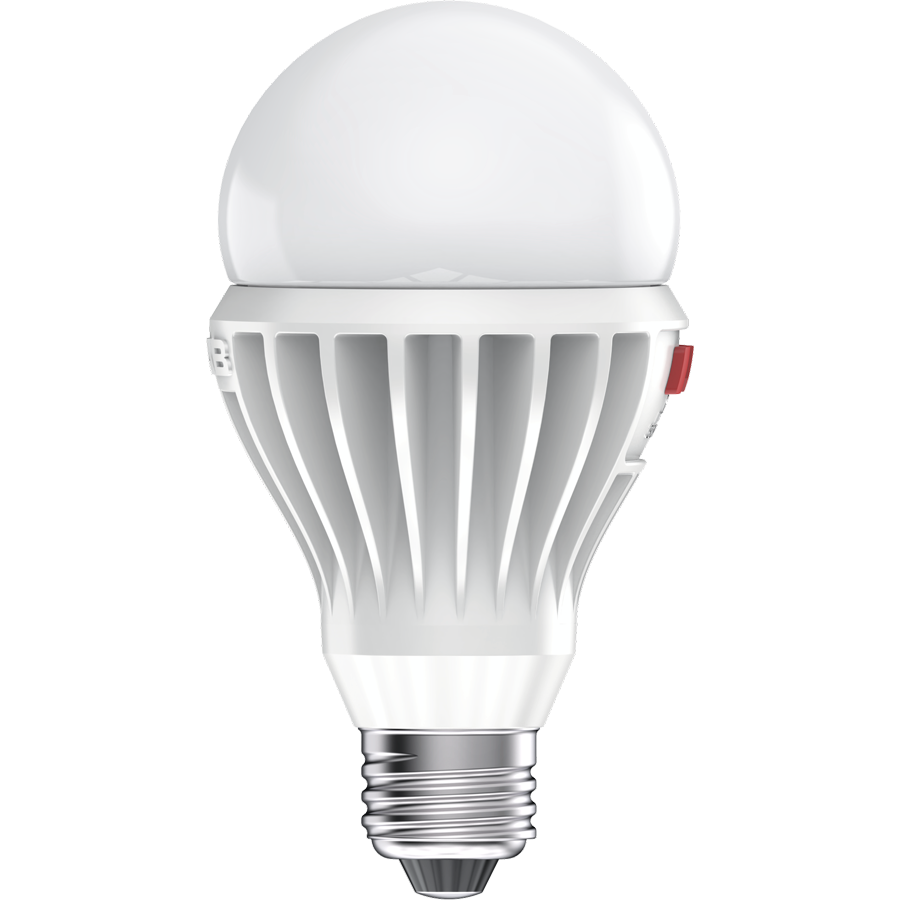

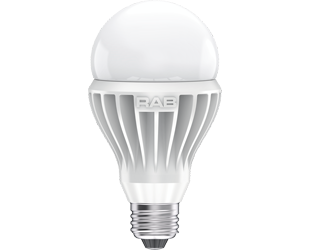

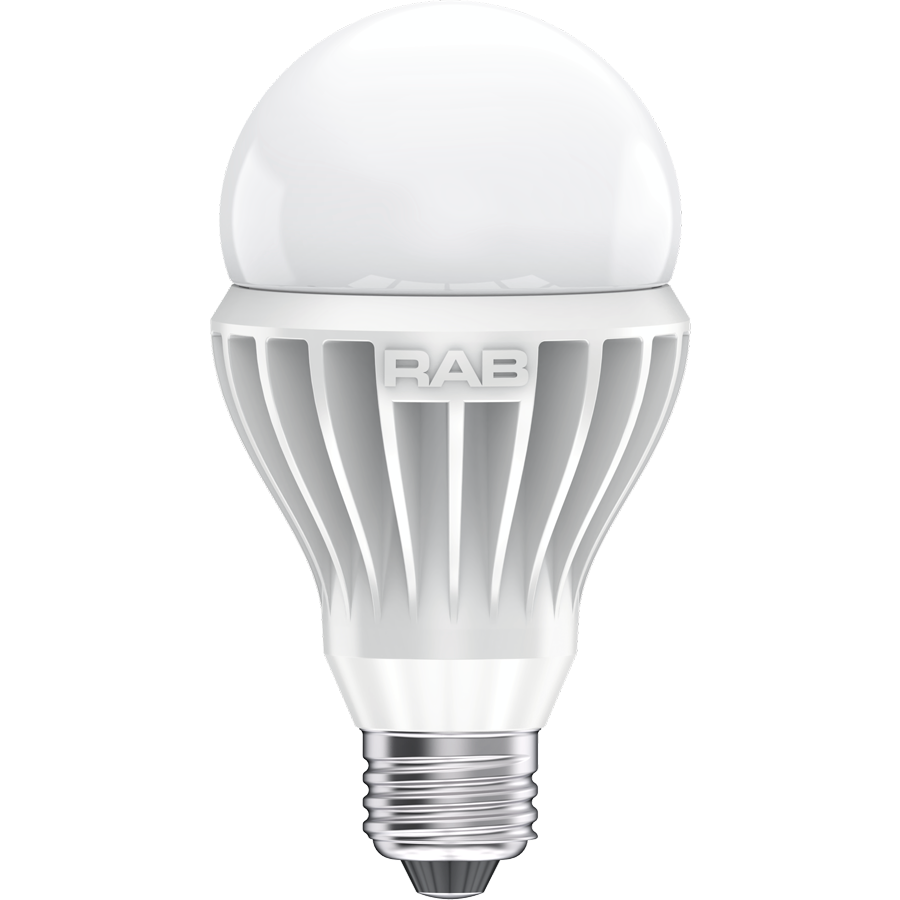

A21-17-E26-9CCT-DIM-UNV

17W 3000/4000/5000K

Wattage & CCT field-adjustable HID replacement lamps with omnidirectional light output

Die-cast housing with superior thermal management

120-277V Universal driver, internal surge protection, and suitable for use in totally enclosed fixtures

Integral driver enables lamp to be wired directly to line voltage without need for an external driver or ballast

3000/4000/5000K Selectable color temperature

View Technical Specs

View Price & Availability

Performance

Watts	17W
Color Temp	3000/4000/5000K
Lumens	2026-2173 lm
Efficacy	128.1-136.7 lm/W
Color Accuracy	94-97 CRI
L70 Lifespan	50,000 Hours

Type
120V	0.14A
208V	0.08A
240V	0.07A
277V	0.07A
Input Watts	16.6-17.2W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 0.6 lbs

Technical Specifications

Performance

Product Type

HID Repacement Bulb

Description

These HID replacement lamps provide smooth, diffuse, omnidirectional light, making them great for any HID retrofit installation

Wattage Equivalency

125W Incandescent

Input Wattage

17W

Lumens

2,200lm @3000K
2,350lm @4000K
2,300lm @5000K

Efficacy

128lm/W

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Electrical

THD

≤20%

Power Factor

≥0.9

Dimmable

Step Dimming: 75-100%
TRIAC Dimming:20-100%

Input Voltage

120-277V

Operating Frequency

50/60Hz

Input Current @ 120V (mA)

135mA

Input Current @ 208V (mA)

85mA

Input Current @ 240V (mA)

75mA

Input Current @ 277V (mA)

67mA

Operating Temperature

-40°F to 113°F (-40°C to 45°C)

Flicker

Step Dimming: 75-100%
TRIAC Dimming:20-100%

Surge Protection

4 kV

LED Characteristics

Beam Angle

230°

Color Temperature

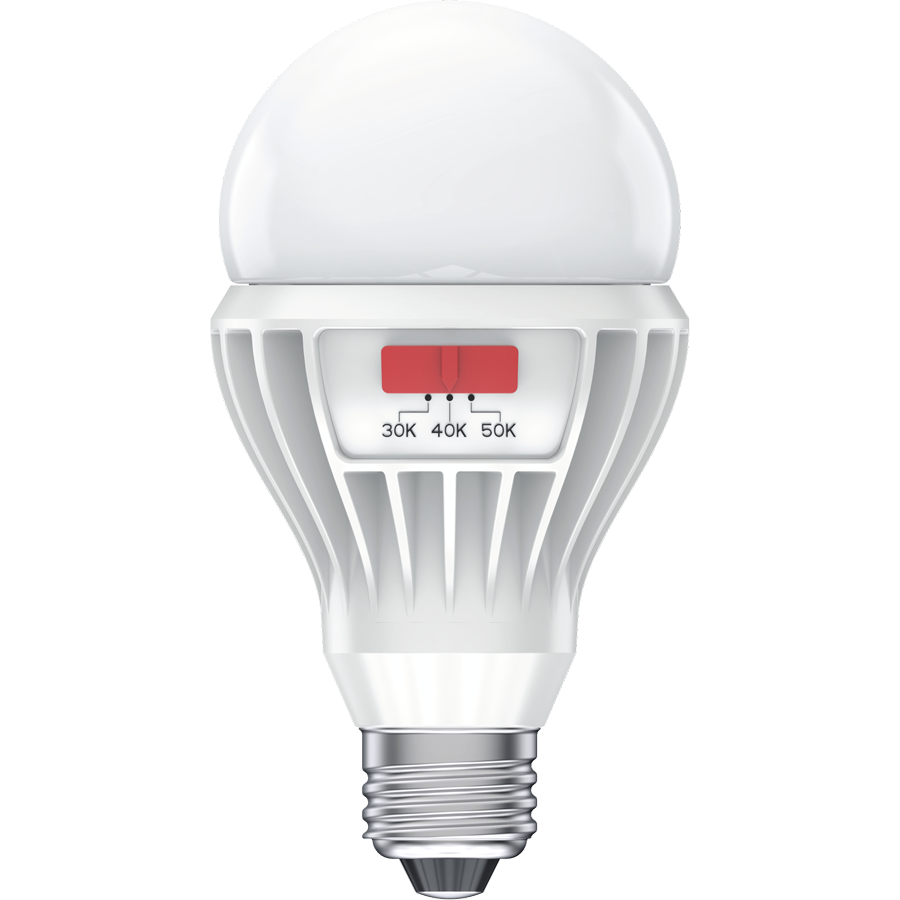

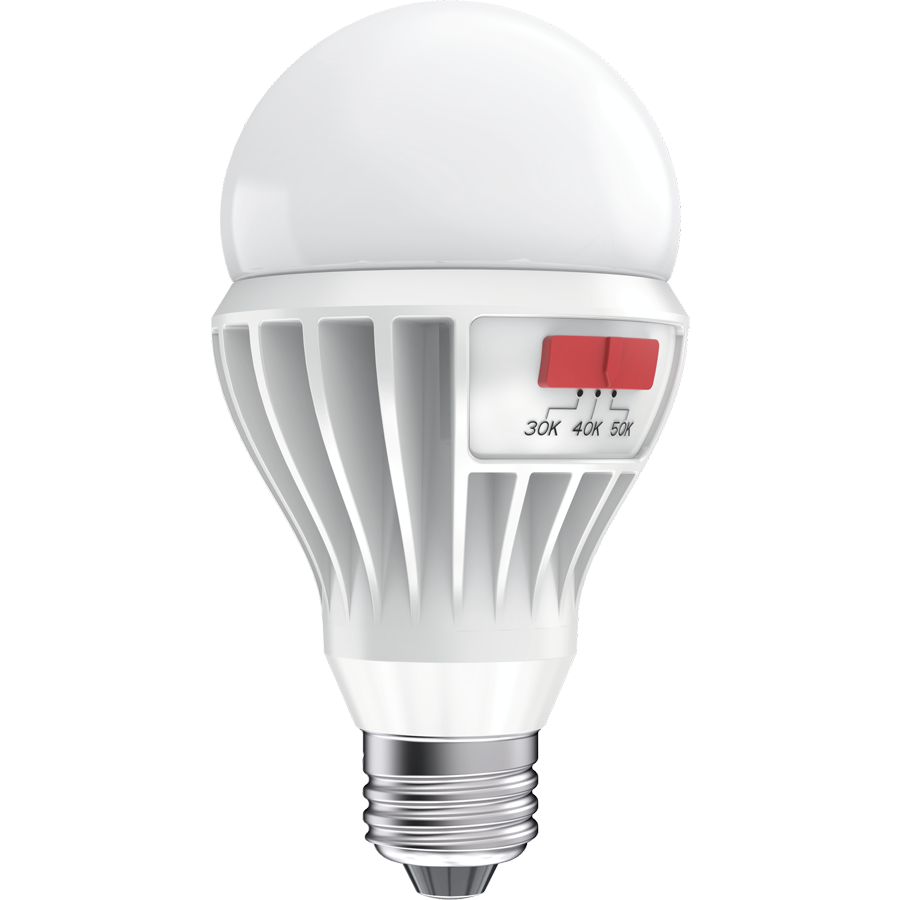

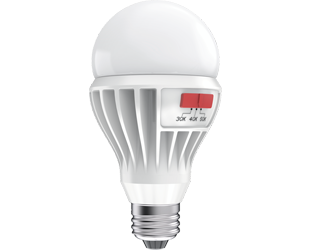

Field adjustable via dip switch 3000/4000/5000K

Color Accuracy (CRI)

90 CRI

R9 Value

High color performance with R9 greater than 6

Color Consistency

<7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Installation

Installation Method

UL Type B, Ballast Bypass

Installation Orientation

Universal Installation

Base Type

E26 Medium Base

Construction

Finish

White

Lens Material

Frosted polycarbonate lens diffuses light evenly and smoothly

Enclosure Material

Precision die-cast aluminum heat sink has superior thermal management

Lens Finish

Frosted Milky white

Compliance

Listings

UL Listed, UL Classified

Environment

Suitable for use indoors in dry and damp environments.

Fixture Rating

Suitable for use in enclosed fixtures

IP Rating

IP54

DLC Listed

Certification Model Number

H20046(HIDFA-80S-EX39-8CCT-BYP)

California Title 20 Compliant

Can be used to conform with the requirements of California Title 20

California Title 24 JA8 Compliant

Can be used to conform with the requirements of California Title 24 Part 6

California Energy Commission (CEC) Status

Lawful for Sales in California

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Other

Compatible Accessories

HID-ACC-EX39

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
