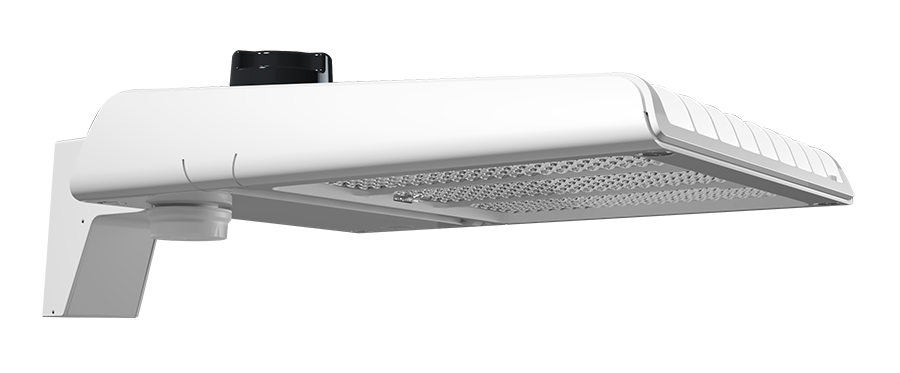

A22-200W/480/MVS

Spec Sheet IES File Instructions Sell Sheet Folleto (Español) Family Spec Sheet Spec Sheet EZ Layout

A22-200W/480/MVS

200W 3000/4000/5000K

DLC Premium listed

Adjustable Universal Pole Mount

7-Pin Receptacle with Shorting Cap

IP66 Rated

100,000-Hour LED lifespan

5-Year, limited warranty

View Technical Specs

View Price & Availability

Performance

Watts	200/180/160W
Color Temp	3000/4000/5000K
Lumens	22,391-28,507 lm
Efficacy	127.6-153.6 lm/W
Color Accuracy	80-84 CRI
L70 Lifespan	100,000 Hours

Type	Constant
120V
208V
240V
277V
Input Watts	160.8-200.8W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 13.0 lbs

Technical Specifications

Field Adjustability

Field Adjustable

Field Adjustable Light Output:
200W/180W/160W (factory default: 200W)
Color Temperature Selectable:
3000K, 4000K and 5000K (factory default:4000K)

Compliance

UL Listed

Suitable for wet locations. Suitable for mounting within 4 ft (1.2m) of the ground.

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

IP Rating

Ingress protection rating of IP66 for dust and water

DLC Listed

This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-C6FR7J

Performance

Lifespan

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Wattage Equivalency

200W: Replaces up to 750W Metal Halide (MH) or 400W High Pressure Sodium (HPS)
180W: Replaces up to 750W Metal Halide (MH) or 400W High Pressure Sodium (HPS)
160W: Replaces up to 750W Metal Halide (MH) or 400W High Pressure Sodium (HPS)

Electrical

Driver

Constant Current, Class 1, 480V, 50/60 Hz:
200W: 480V: 0.42A
180W: 480V: 0.38A
100W: 480V: 0.33A

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

THD

11.82% at 480V

Power Factor

94% at 480V

7-Pin Receptacle with Shorting Cap

ANSI C136.41 7-pin receptacle, compatible with wireless control systems

Surge Protection

6kV

Construction

IES Classification

The Type III distribution is ideal for roadway, general parking and other area lighting applications where a larger pool of lighting is required. It is intended to be located near the side of the area, allowing the light to project outward and fill the area.

Cold Weather Starting

The minimum starting temperature is -40°C (-40°F)

Maximum Ambient Temperature

Suitable for use in up to 40°C (104°F)

Lens

Polycarbonate lens

Housing

Die-cast aluminum

Effective Projected Area

1 Fixture: 0.4
2 Fixtures: 0.8
3 Fixtures: 1.4
4 Fixtures: 1.4

Finish

Formulated for high durability and long-lasting color

Gaskets

High-temperature silicone gaskets

Green Technology

Mercury and UV free. RoHS-compliant components.

LED Characteristics

LEDs

Long-life, high-efficacy, surface-mount LEDs

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Installation

Mounting

Adjustable universal pole mount (standard). Slipfitter and wall mount accessory available.

Optical

BUG Rating

Type 3
200W: B3 U0 G3
180W: B3 U0 G3
160W: B3 U0 G2

Sensor Settings

Voltage Input

12V DC Input, IC Solu;tion

Operating Voltage

10-15V

Control

On/Off control

Detection Area

25%/50%/75%/100% (Factory Setting: 100%)

Microwave Frequency

5.8GHz +/- 75MHz

Hold Time

5 sec/30 sec/1 min/10 min/20 min/30 min (Factory Setting: 5 sec)

Microwave Power

<0.3mW

Switching Capacity

<40mA

Daylight Threshold

2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/Disable (Factory Setting: Disable)

Mounting Height

2.5 - 4.5 m/8.2 - 14.76 ft

Operating Current

<30mA

Stand-by Period

0 sec/10 sec/30 sec/1 min/5 min/10 min/+∞ (Factory Setting: 0 sec)

Detection Range

9.84 - 22.96 ft (3 - 7 m )

Control Method

0-10V

Stand-by Dimming Level

10%/20%/30%/50% (Factory Setting: 10%)

Detection Angle

360° (ceiling mounted)

Operating Temperature

-35°C to +70°C (-31°F to + 158°F)

Remote Control

Adjust settings using remote control (catalog# MSR1). Only available with 0-10V dimming driver options. Remote control available here.

Other

5 Yr Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
