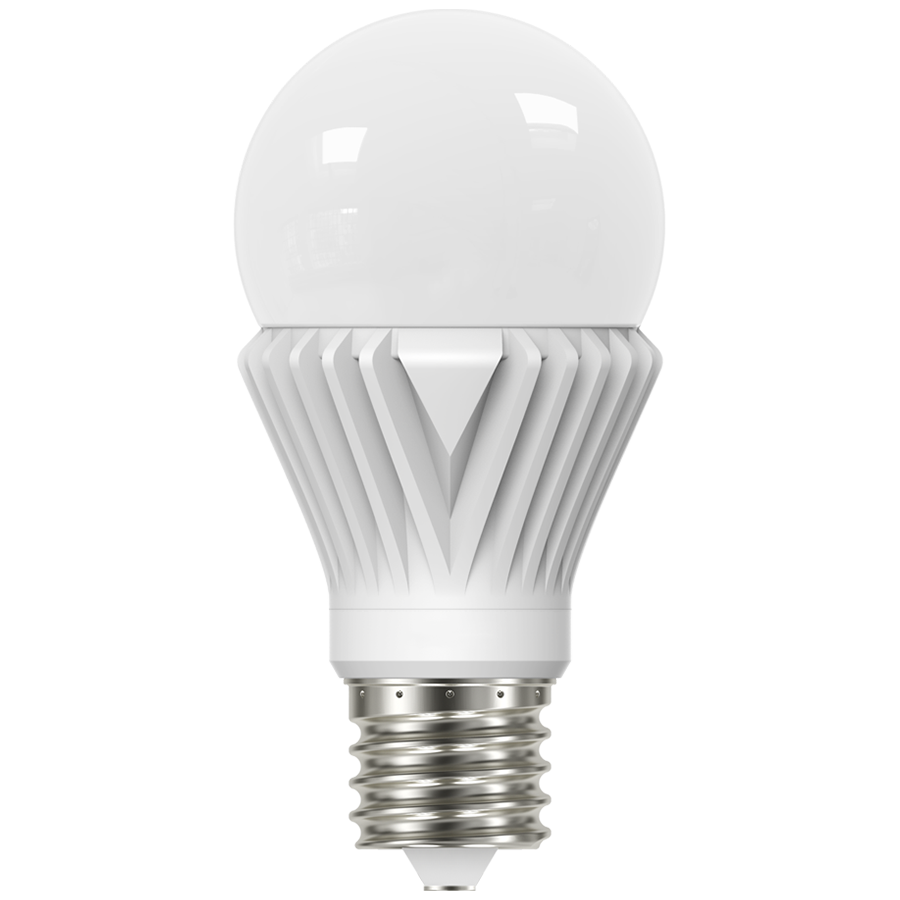

A23-24-EX39-840-ND 120-277V
A23-24-EX39-840-ND 120-277V
- Replacement for High output incandescent or Metal Halide and High Pressure Sodium HID Lamps
- Commercial Grade
- Large metal heatsink for optimal heat dissipation
- In HID retrofit applications - Integral Driver enables lamp to be wired directly to line voltage. Must bypass ballast.
- Rated for use in enclosed and open fixtures in dry or damp locations
- Ideal for post top, bollards, and outdoor corridor lighting
- 50,000 hour Lifespan
- Environmentally friendly, no mercury used
- UL Listed, DLC Listed
- Universal Voltage 120V through 277V
- 5 Year No Compromise Warranty
Performance
| Watts | 23W |
| Color Temp | 4000K |
| Lumens | 3,050 lm |
| Efficacy | 127 |
| Color Accuracy | 80 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | |
| 120V | |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 23.5W |
Dimensions
Weight: 0.8 lbs
Technical Specifications
Performance
Product Type
A-line Commercial Bulbs
Description
Ideal replacement for legacy HID or high output incandescent bulbs.
Wattage Equivalency
Equivalent to 200W Metal Halide
Input Wattage
24W
Lumens
3,050lm
Efficacy
127lm/W
Electrical
THD
≤25%
Power Factor
>0.9
Dimmable
No
Dimming Type
Not suggested for dimming applications
Input Voltage
120-277V
Operating Frequency
50/60Hz
Operating Temperature
-4°F to 113°F (-20°C to 45°C)
LED Characteristics
Color Temperature
4000K
Color Accuracy (CRI)
>80 CRI
R9 Value
High color performance with R9 no less than 0
Color Consistency
<7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Installation
Base Type
EX39
Construction
Finish
White
Bulb Shape
A23
Endcap Material
Die-casting
Enclosure Material
Polycarbonate & Metal heat sink
Lens Finish
Frosted
Compliance
Listings
UL Listed, UL Classified
Fixture Rating
Suitable for use in enclosed fixtures
California Energy Commission (CEC) Status
Not Lawful for Sales in California
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15B of the FCC Rules
Other
Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
