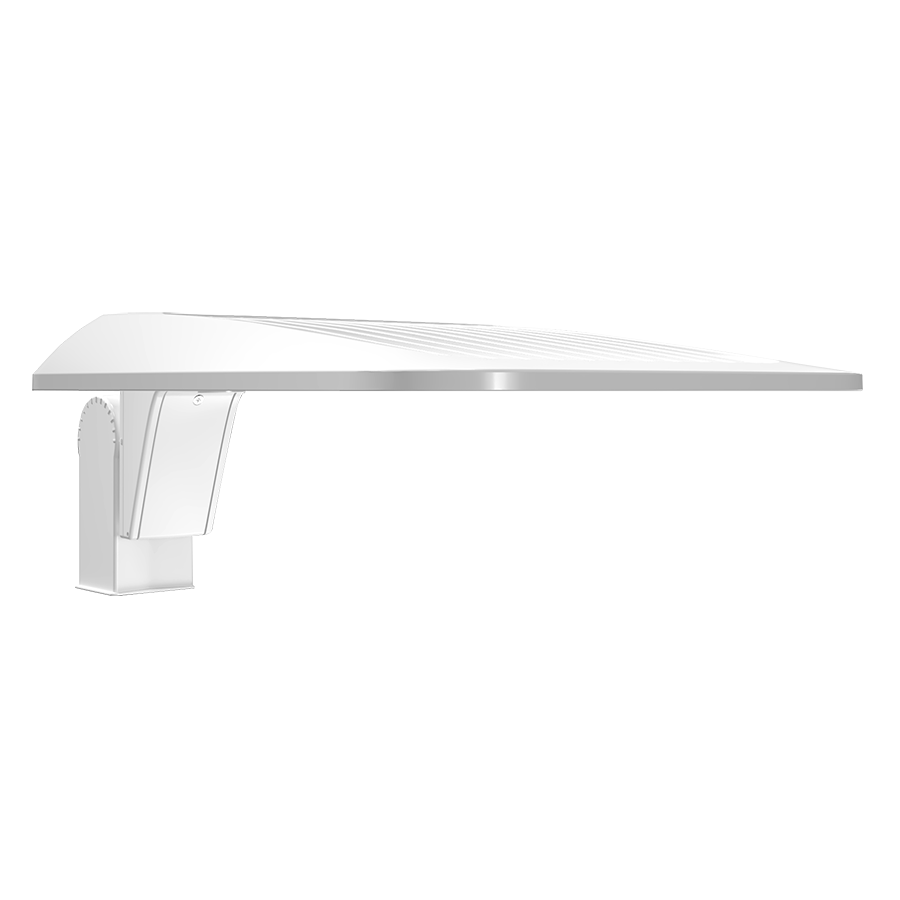

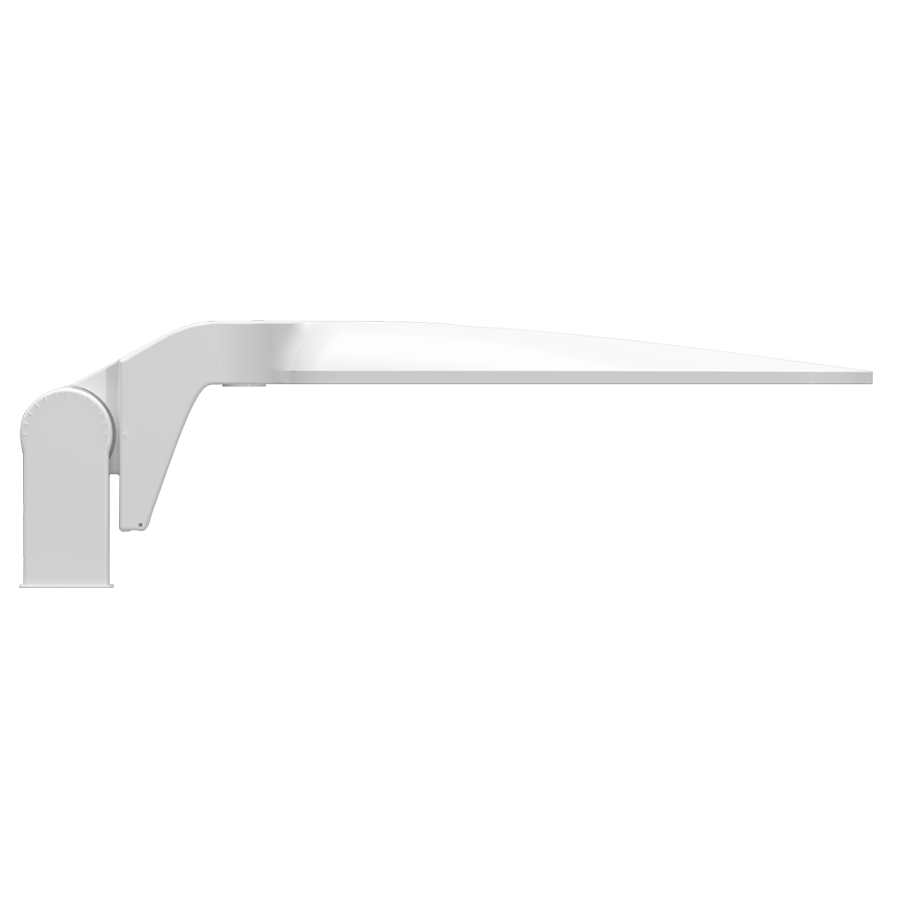

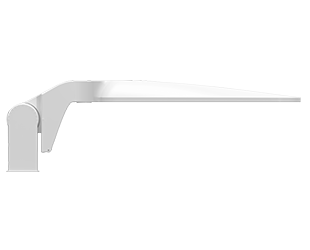

A34T5MSFW

150W 3000/4000/5000K

100,000-hour LED Life

0-10V dimming standard

IP65 rating protects against dust and water

5-Year, limited warranty

View Technical Specs

View Price & Availability

Performance

Watts	150/125/100W
Color Temp	3000/4000/5000K
Lumens	16,250-25,144 lm
Efficacy	152.5-183.5 lm/W
Color Accuracy	82-84 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	1.26A/1.00A/0.83A
208V	0.80A/0.60A/0.60A
240V	0.70A/0.53A/0.50A
277V	0.59A/0.46A/0.39A
Input Watts	94.7-151,1W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Technical Specifications

Field Adjustability

Field Adjustable

Field Adjustable Light Output:
150W/125W/100W (factory default 125W)
Color temperature selectable by 3000K, 4000K and 5000K (factory default 4000K)

Compliance

UL Listed

Suitable for wet locations

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

IP Rating

Ingress protection rating of IP65 for dust and water

DLC Listed

This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.

Performance

Lifespan

100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

Wattage Equivalency

150W: Replaces up to 750W Metal Halide (MH) or 400W High Pressure Sodium (HPS)
125W: Replaces up to 400W Metal Halide (MH) or 400W High Pressure Sodium (HPS)
100W: Replaces up to 400W Metal Halide (MH) or 310W High Pressure Sodium (HPS)

Electrical

Driver

150W: Constant Current, Class 1, Class P, 120-277V, 50/60 Hz,120V: 1.26A, 208V: 0.80A, 240V: 0.70A, 277V: 0.59A
125W: Constant Current, Class 1, Class P, 120-277V, 50/60 Hz,120V: 1.00A, 208V: 0.60A, 240V: 0.53A, 277V: 0.46A
100W: Constant Current, Class 1, Class P, 120-277V, 50/60 Hz,120V: 0.83A, 208V: 0.60A, 240V: 0.50A, 277V: 0.39A

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

Surge Protection

L-L: 6 kV; L/N-G: 6 kV

Photocell

Integrated photocell included with on/off switch

Optical

IES Classification

The Type V distribution produces light in a wide and uniform 360° pattern that is perfect for large outdoor areas such as parking lots, corporate parks and retail settings

BUG Rating

150W: B5 U0 G3
125W: B4 U0 G2
100W: B4 U0 G2

LED Characteristics

LEDs

Long-life, high-efficiency, surface-mount LEDs

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Construction

Cold Weather Starting

The minimum starting temperature is -40°F (-40°C)

Maximum Ambient Temperature

Suitable for use in up to 104°F (40°C)

Lens

Clear polycarbonate lens

Housing

Die-cast aluminum housing, lens frame and mounting arm

Effective Projected Area (EPA)

EPA = 0.4

Tilt Increment

The fixture can be rotated from 0-125° in 5° increments

Vibration Rating

Finish

Formulated for high durability and long-lasting color

Green Technology

Includes recycled plastic and RoHS-compliant components.

Installation

Mounting

Slipfitter for 2 3/8"OD pipe

Other

5-Year Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
