A34T5SSF

Spec Sheet IES File LM79 Instructions Sell Sheet Folleto (Español) Spec Sheet EZ Layout

A34T5SSF

100W 3000/4000/5000K

100,000-hour LED Life

0-10V dimming standard

IP65 rating protects against dust and water

5-Year, limited warranty

View Technical Specs

View Price & Availability

Performance

Watts	100/80/50W
Color Temp	3000/4000/5000K
Lumens	7,533-15,343 lm
Efficacy	144.9-174.4 lm/W
Color Accuracy	82-83 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	0.83A/0.64A/0.44A
208V	0.60A/0.40A/0.25A
240V	0.50A/0.35A/0.21A
277V	0.39A/0.29A/0.19A
Input Watts	46.4-96.6W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Technical Specifications

Field Adjustability

Field Adjustable

Field Adjustable Light Output:
100W/80W/50W (factory default 80W)
Color temperature selectable by 3000K, 4000K and 5000K (factory default 4000K)

Compliance

UL Listed

Suitable for wet locations

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

IP Rating

Ingress protection rating of IP65 for dust and water

DLC Listed

This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-F07DJL

Performance

Lifespan

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Wattage Equivalency

100W: Replaces up to 400W Metal Halide (MH) or 310W High Pressure Sodium (HPS)
80W: Replaces up to 350W Metal Halide (MH) or 250W High Pressure Sodium (HPS)
50W: Replaces up to 200W Metal Halide (MH) or 150W High Pressure Sodium (HPS)

Electrical

Driver

100W: Constant Current, Class 1, Class P, 120-277V, 50/60 Hz,120V: 0.83A, 208V: 0.60A, 240V: 0.50A, 277V: 0.39A
80W: Constant Current, Class 1, Class P, 120-277V, 50/60 Hz,120V: 0.64A, 208V: 0.40A, 240V: 0.35A, 277V: 0.29A
50W: Constant Current, Class 1, Class P, 120-277V, 50/60 Hz,120V: 0.44A, 208V: 0.25A, 240V: 0.21A, 277V: 0.19A

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

Surge Protection

L-L: 4kV; L/N-G: 6kV

Photocell

Integrated photocell included with on/off switch

Construction

IES Classification

The Type V distribution produces light in a wide and uniform 360° pattern that is perfect for large outdoor areas such as parking lots, corporate parks and retail settings

Cold Weather Starting

The minimum starting temperature is -40°C (-40°F)

Maximum Ambient Temperature

Suitable for use in up to 40°C (104°F)

Lens

Clear polycarbonate lens

Housing

Die-cast aluminum housing, lens frame and mounting arm

Effective Projected Area

EPA = 0.3

Tilt Increment

The fixture can be rotated from 0-125° in 5° increments

Vibration Rating

Finish

Formulated for high durability and long-lasting color

Green Technology

Includes recycled plastic and RoHS-compliant components.

LED Characteristics

LEDs

Long-life, high-efficiency, surface-mount LEDs

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Installation

Mounting

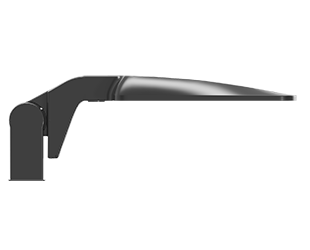

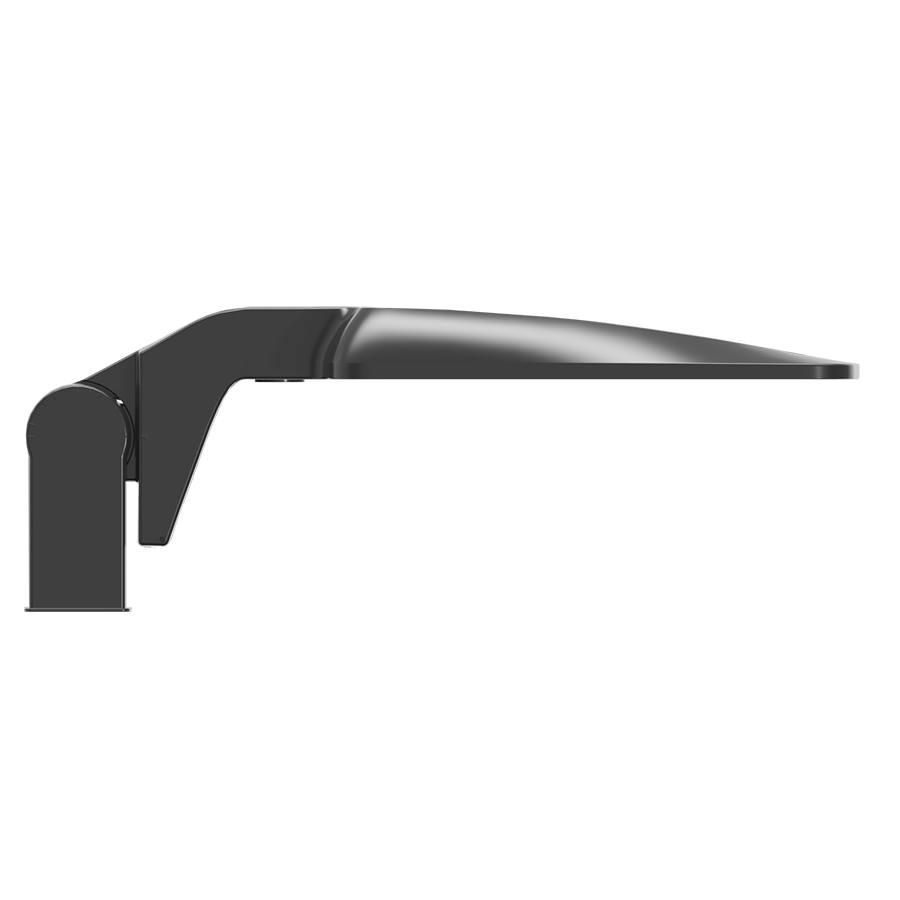

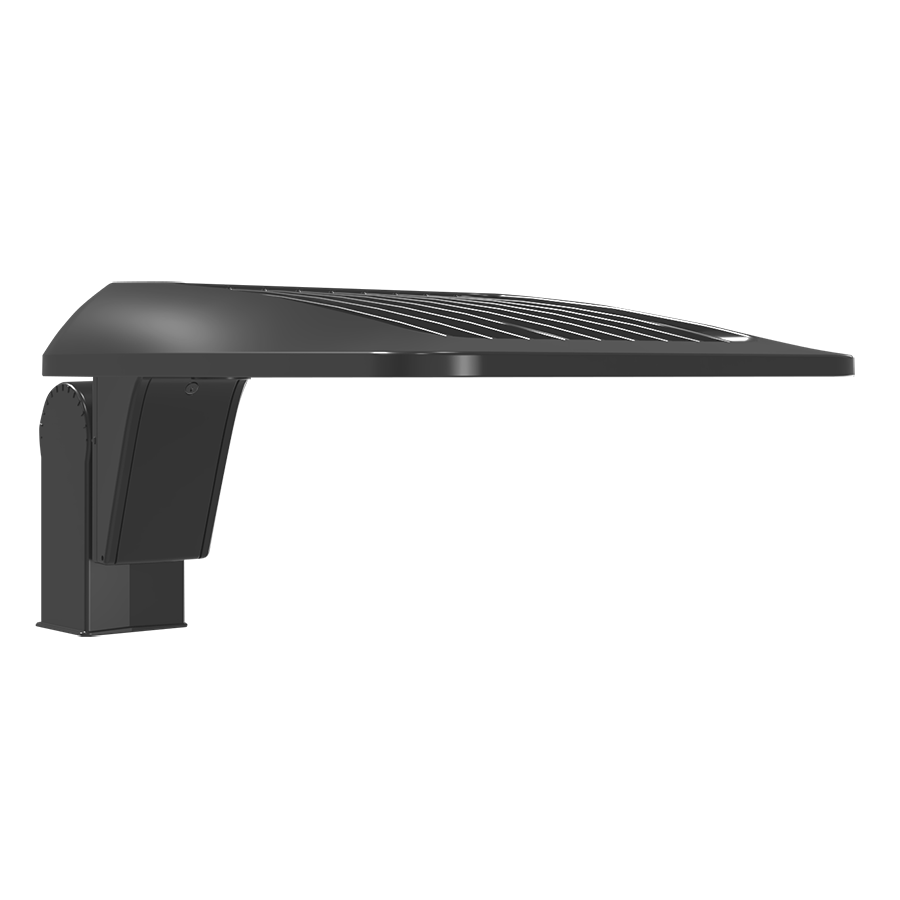

Slipfitter for 2 3/8"OD pipe

Optical

BUG Rating

100W: B4 U0 G2
80W: B3 U0 G2
50W: B3 U0 G1

Other

5-Year Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
