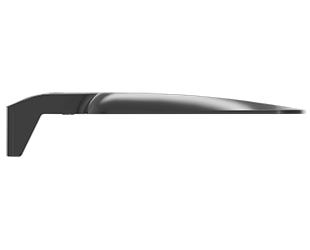

A34T5XL/480
- 100,000-hour LED Life
- 0-10V dimming standard
- IP65 rating protects against dust and water
- 5-Year, limited warranty
Performance
| Watts | 340/270/220W |
| Color Temp | 3000/4000/5000K |
| Lumens | 36,797-55,086 lm |
| Efficacy | 155.4-181.4 lm/W |
| Color Accuracy | 81-84 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 214-329.3W |
Dimensions
Weight: 33.3 lbs
Technical Specifications
Field Adjustability
Field Adjustable
Field Adjustable Light Output:
340W/270W/220W (factory default 270W)
Color temperature selectable by 3000K, 4000K and 5000K (factory default 4000K)
340W/270W/220W (factory default 270W)
Color temperature selectable by 3000K, 4000K and 5000K (factory default 4000K)
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
IP Rating
Ingress protection rating of IP65 for dust and water
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-G6S0VV
DLC Product Code: S-G6S0VV
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Wattage Equivalency
340W: Replaces up to 1,000W Metal Halide (MH) or 1,000W High Pressure Sodium (HPS)
270W: Replaces up to 1,000W Metal Halide (MH) or 750W High Pressure Sodium (HPS)
220W: Replaces up to 750W Metal Halide (MH) or 600W High Pressure Sodium (HPS)
270W: Replaces up to 1,000W Metal Halide (MH) or 750W High Pressure Sodium (HPS)
220W: Replaces up to 750W Metal Halide (MH) or 600W High Pressure Sodium (HPS)
Electrical
Driver
340W: Constant Current, Class 1, Class P, 480V, 50/60 Hz,120V: 480V: 0.70A
270W: Constant Current, Class 1, Class P, 480V, 50/60 Hz,120V: 480V:0.59A
220W: Constant Current, Class 1, Class P, 480V, 50/60 Hz,120V: 480V:0.49A
270W: Constant Current, Class 1, Class P, 480V, 50/60 Hz,120V: 480V:0.59A
220W: Constant Current, Class 1, Class P, 480V, 50/60 Hz,120V: 480V:0.49A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
Surge Protection
L-L: 6kV; L/N-G: 10kV
10kV Surge suppressor in addition to surge built into the driver.
10kV Surge suppressor in addition to surge built into the driver.
Photocell
Integrated photocell included with on/off switch
Construction
IES Classification
The Type V distribution produces light in a wide and uniform 360° pattern that is perfect for large outdoor areas such as parking lots, corporate parks and retail settings
Cold Weather Starting
The minimum starting temperature is -40°C (-40°F)
Maximum Ambient Temperature
Suitable for use in up to 40°C (104°F)
Lens
Clear polycarbonate lens
Housing
Die-cast aluminum housing, lens frame and mounting arm
Effective Projected Area
EPA = 0.4
Vibration Rating
2G
Finish
Formulated for high durability and long-lasting color
Green Technology
Includes recycled plastic and RoHS-compliant components.
LED Characteristics
LEDs
Long-life, high-efficiency, surface-mount LEDs
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Installation
Mounting
Universal mounting arm compatible for hole spacing patterns from 1" to 5 1/2" center to center. Round Pole Adaptor plate included as a standard. Easy slide and lock to mount fixture with ease. Round pole diameter must be >4" to mount fixtures at 90° orientation.
Optical
BUG Rating
340W: B5 U0 G4
270W: B5 U0 G4
220W: B5 U0 G4
270W: B5 U0 G4
220W: B5 U0 G4
Other
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
