ALEDS3TYAB/7PR

Spec Sheet IES File Instructions Sell Sheet Family Spec Sheet Spec Sheet EZ Layout

ALEDS3TYAB/7PR

50W Amber

Wildlife-friendly amber light

0-10V dimmable standard

IP66 Rated

100,000-Hour LED lifespan

10-Year, No-Compromise Warranty

View Technical Specs

View Price & Availability

Performance

Watts	50/35W
Color Temp	Amber
Lumens	2,733/2,310 lm
Efficacy	58.4/73.1 lm/W
Color Accuracy
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	0.67A
208V	0.40A
240V	0.34A
277V	0.30A
Input Watts	46.8/31.6W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 13.2 lbs

Technical Specifications

Field Adjustability

Field Adjustable (Wattage)

Field adjustable light output in 2 discrete steps:
Small Housing: 50W/35W (factory default 50W)

Compliance

UL Listed

Suitable for wet locations

IP Rating

Ingress protection rating of IP66 for dust and water

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

LED Characteristics

LEDs

Long-life, high-efficacy, discrete, surface-mount LEDs

Electrical

Driver

35W: Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 0.34A, 208V: 0.20A, 240V: 0.17, 277V: 0.15A
50W: Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 0.50A, 208V: 0.30A, 240V: 0.25, 277V: 0.22A

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

Surge Protection

Line to Line: 10kV
Line to Ground: 6kV

7-Pin Receptacle

ANSI C136.41 7-pin receptacle, compatible with wireless control systems

Performance

Lifespan

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Wattage Equivalency

Equivalent to 250W Metal Halide

Construction

IES Classification

The Type III distribution is meant to be located near the side of an area, projecting the light outward to fill the area. Ideal for roadways, general parking areas, lighting applications and where a large pool of light is required.

Cold Weather Starting

The minimum starting temperature is -40°C (-40°F)

Ambient Temperature

Max Power Temp Rating: 40°C (104°F)
Middle Power Temp Rating: 52°C (125°F)
Low Power Temp Rating: 58°C (137°F)

Housing

Die-cast aluminum

Reflector

Aluminum reflector with white polycarbonate

Vibration Rating

3G vibration rating per ANSI C136.31

Effective Projected Area

EPA = 0.32

Gaskets

High-temperature silicone gaskets

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

Installation

Mounting

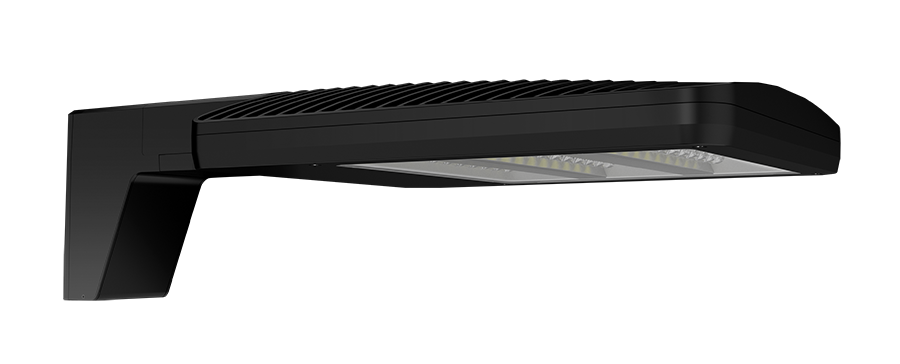

Universal mounting arm compatible for hole spacing patterns from 1" to 5 1/2" center to center. Round Pole Adaptor plate included as a standard. Easy slide and lock to mount fixture with ease.

Optical

BUG Rating

60W: B1 U0 G1
40W: B1 U0 G1

Other

10-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of ten (10) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
