ALR-36RB

Spec Sheet IES File LM79 Instructions Sell Sheet Folleto (Español) Family Spec Sheet Spec Sheet EZ Layout

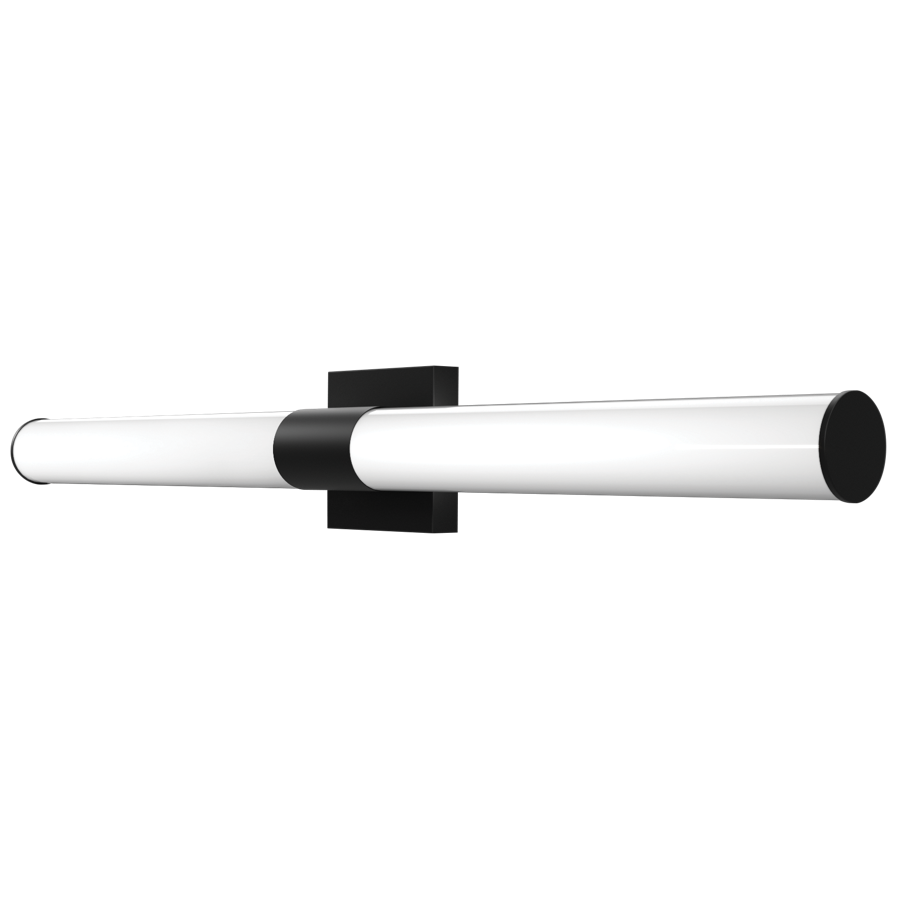

ALR-36RB

Steel housing with a shatter-resistant polycarbonate lens

Modern round and square forms available in black or brushed nickel

5CCT Selectable 2700/3000/3500/4000/5000K

120V driver with TRIAC/ELV dimming down to 10%_

Damp rated, Title 24 Compliant, 50,000 hrs, 5-year no compromise warranty

View Technical Specs

View Price & Availability

Performance

Watts	30W
Color Temp	2700/3000/3500/4000/5000K
Lumens	1,900 lm
Efficacy	68
Color Accuracy	>90 CRI
L70 Lifespan	50,000 Hours

Type	Constant Current, Class 2
120V	0.28A
208V
240V
277V
Input Watts	30W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 2.4 lbs

Technical Specifications

Performance

Product Type

Linear Wall Sconce

Description

The ALLURE vanity family is a sleek & modern fixture perfect for single or multi-family projects

Wattage Equivalency

190W Incandescent

Input Wattage

30W

Lumens

1,900lm

Efficacy

68lm/W

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Driver

Linear

Electrical

THD

<50%

Power Factor

>0.9

Dimmable

Yes, dimmable down to 10% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.

Input Voltage

120V

Operating Frequency

60 Hz

Input Current @ 120V (mA)

280mA

Operating Temperature

-4°F to 104°F (-20°C to 40°C)

Flicker

<30%

LED Characteristics

Beam Angle

140°

Color Temperature

Field adjustable via dip switch 2700/3000/3500/4000/5000K

Color Accuracy (CRI)

>90 CRI

R9 Value

High color performance with R9 greater than 50

Color Consistency

<7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Installation

Mounting

Wall Mount in Horizontal or Vertical oreintation

Construction

Length

36"

Shape

Linear Bar with Round Lens

Finish

Black

Enclosure Material

Polycarbonate/Metal

Lens Finish

Frosted

Lens

Polycarbonate light diffuser distributes light evenly and smoothly for general lighting applications

Compliance

ETL Listed

This product has been tested by Intertek and found in compliance with accepted national standards.

Environment

Suitable for use indoors in dry and damp environments.

IC Rated

Air Tight

Energy Star Approved

DLC Listed

Certification Model Number

V018(ALR-36RB)

California Title 20 Compliant

California Title 24 JA8 Compliant

Can be used to conform with the requirements of California Title 24 Part 6

California Energy Commission (CEC) Status

Lawful for Sales in California

NSF Listed

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Other

Compatible Accessories

None

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
