ARBAY2-160/PIR/E2/8C
ARBAY2-160/PIR/E2/8C
- High efficiency. Low price.
- Ideal for industrial warehouse spaces
- 100,000 hour LED lifespan
- 5-Year, limited warranty
Performance
| Watts | 160W |
| Color Temp | 5000K (Cool) |
| Lumens | 23,276 lm |
| Efficacy | 145.9 |
| Color Accuracy | 83 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 1.32A |
| 208V | 0.77A |
| 240V | 0.67A |
| 277V | 0.58A |
| Input Watts | 159.5W |

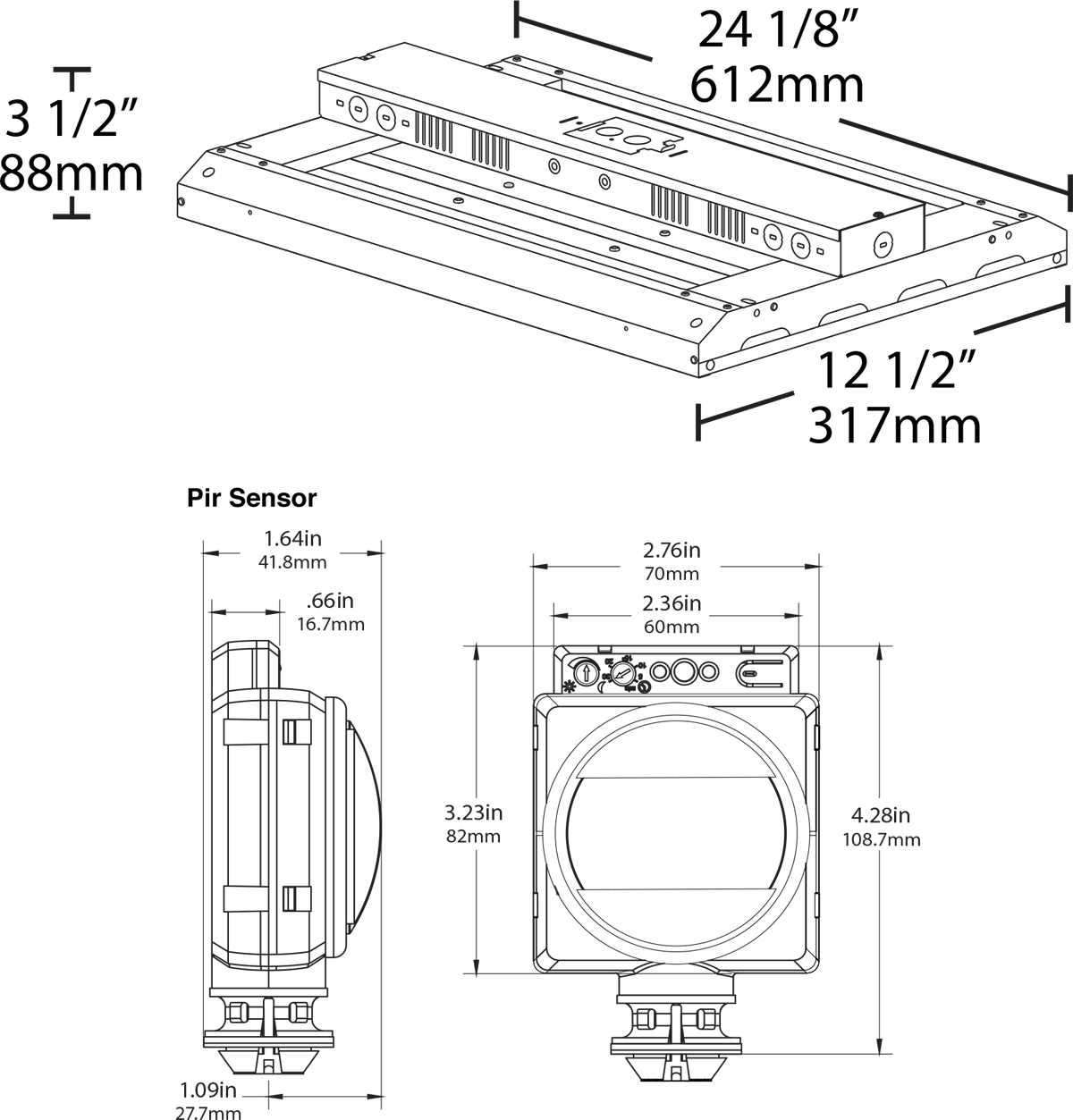

Dimensions
Weight: 12.8 lbs
Technical Specifications
Compliance
UL Listed
Suitable for damp locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: P0QH55ZN
DLC Product Code: P0QH55ZN
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
LED Characteristics
LEDs
Multi-chip, high-output, long-life LEDs
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Construction
Operating Temperature
-20°C (-4°F) to 50°C (122°F)
Housing
22 gauge die formed with white powder coat finish. Y Hooks included for easy chain or cable mounting.
Reflector
White painted, reflective, die formed painted steel
Lens
Polycarbonate lens
Cord & Plug
8 ft cord and no plug for 120-277V and 480V
Finish
Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Electrical
Driver
Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 1.32A, 208V: 0.77A, 240V: 0.67A, 277V: 0.58A
THD
3.84% at 120V, 6.36% at 277V
Power Factor
99.9% at 120V, 97.2% at 277V
Battery Backup
Battery backup will operate the fixture for 90 minutes if power fails. Wired for 120-277V.
Battery Backup Light Loss Factor
0.159
Surge Protection
2.5kV
For areas prone to surges, upgrade to 10kV surge protection available
For areas prone to surges, upgrade to 10kV surge protection available
Installation
Mounting
V hooks and optional pendant mounting. AEROBAY® comes with two 42" chains.
Other
Replacement
Replaces 8-lamp T8, 6-lamp T5HO, or 400W MH
5 Yr Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Sensor Settings
Passive Infrared Occupancy and Daylight Sensor
PIR sensor with IR remote capability. High/Low bay passive infrared occupancy and daylight sensor.
UL Listed
Indoor use only
Operating Temperature
32°F to 158°F (0°C to 70°C)
Operating Humidity
5% to 96%, noncondensing
Line Voltage
LineVage for direct connection to load
Voltage
120, 277, 347V, 60Hz or 230V, single phase, 50Hz operation
Power Consumption
0.2W
Maximum Versatility
Adjustable time delay and sensitivity
Adjustable hold-off daylighting level
Adjustable hold-off daylighting level
Weight
6.4 oz (181 g)
Hardware
UL listed snap-in mounting hardware
Mounting
Easy mounting using knockout at end of linear high bay luminaire
Lens
Lens (attached) designed for mounting heights from 15 to 40 ft
Rotatable Mask
Snap-on rotatable mask for aisleway applications (included)
Coverage
Covers a 100-foot diameter area whem mounted at height of 40 ft
Factory Default
15 minutes time delay
Max sensitivity
300 footcandle light level
Max sensitivity
300 footcandle light level
Handheld Wireless Configuration Tool
Adjust settings using handheld wireless configuration tool (catalog# WSREM). Only available with 0-10V dimming driver options. Handheld wireless configuration tool available here.
Recently Viewed Products
ARBAY2-160/PIR/E2/8C
Aerobay 2Ft 160W 5000K Dimmable 120-277V Passive Infrared Sensor Battery 8Ft Cord White

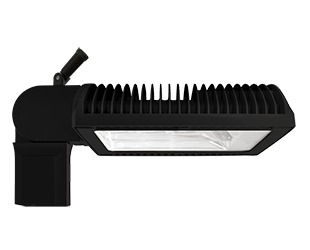

ALED4T78SFNK/480/PCS4
