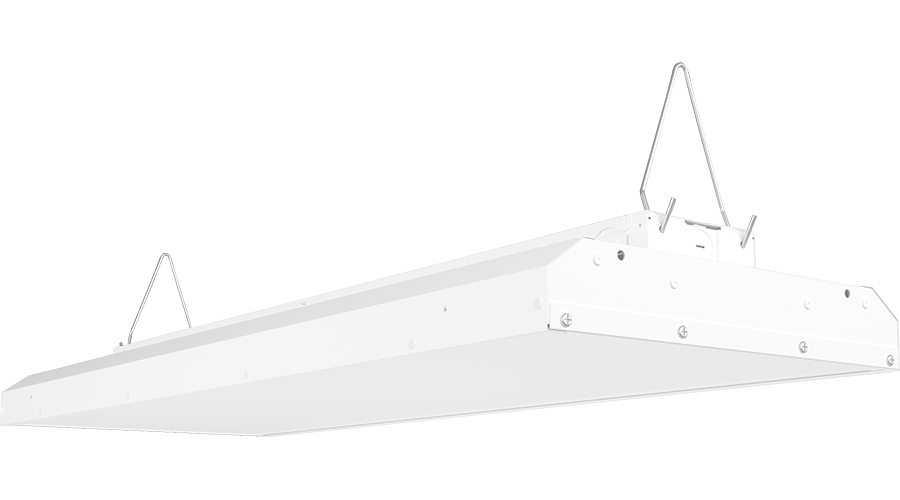

ARBAY3-275/LCS/E2/8CP
ARBAY3-275/LCS/E2/8CP
- High efficiency. Low price.
- Ideal for industrial warehouse spaces
- 100,000 hour LED lifespan
- 5-Year, limited warranty
Performance
| Watts | 275W |
| Color Temp | 5000K (Cool) |
| Lumens | 39,685 lm |
| Efficacy | 143 |
| Color Accuracy | 83 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 2.25A |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 277.6W |
Dimensions
Weight: 18.7 lbs
Technical Specifications
Compliance
UL Listed
Suitable for damp locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: P6Q8WDOE
DLC Product Code: P6Q8WDOE
Construction
Operating Temperature
-20°C (-4°F) to 50°C (122°F)
Housing
22 gauge die formed with white powder coat finish. Y Hooks included for easy chain or cable mounting.
Reflector
White painted, reflective, die formed painted steel
Lens
Polycarbonate lens
Finish
Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
LED Characteristics
LEDs
Multi-chip, high-output, long-life LEDs
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Electrical
Driver
Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 2.25A, 208V: 1.30A, 240V: 1.12A, 277V: 1.0A
THD
3.73% at 120V, 7.29% at 277V
Power Factor
99.9% at 120V, 95.1% at 277V
Battery Backup
Battery backup will operate the fixture for 90 minutes if power fails. Wired for 120-277V.
Battery Backup Light Loss Factor
0.093
Surge Protection
2.5kV
For areas prone to surges, upgrade to 10kV surge protection available
For areas prone to surges, upgrade to 10kV surge protection available
Installation
Mounting
V hooks and optional pendant mounting. AEROBAY® comes with two 42" chains.
Lightcloud
Lightcloud Sensor Installed
Occupancy, vacancy, and closed loop daylight harvesting in one versatile sensor. In addition control any fixture in your Lightcloud integrated/embedded networked lighting luminaire-level control system. LLLC - capable of switching, 0-10Vdimming, power/energy monitoring. Can also be used to extend the range of the Lightcloud mesh network communication protocols.
DLC system - N1XMLOEATBA
Learn more at www.lightcloud.com
DLC system - N1XMLOEATBA
Learn more at www.lightcloud.com
Other
Replacement
Replaces 8-lamp T5HO or 575W MH
5 Yr Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
