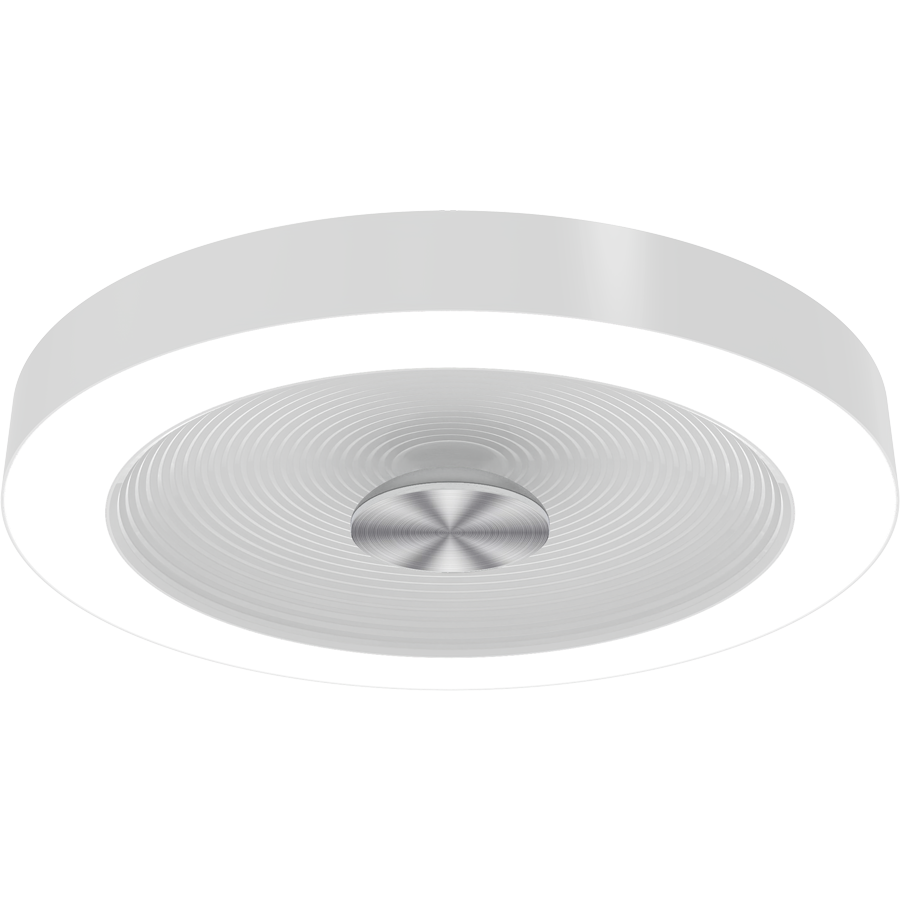

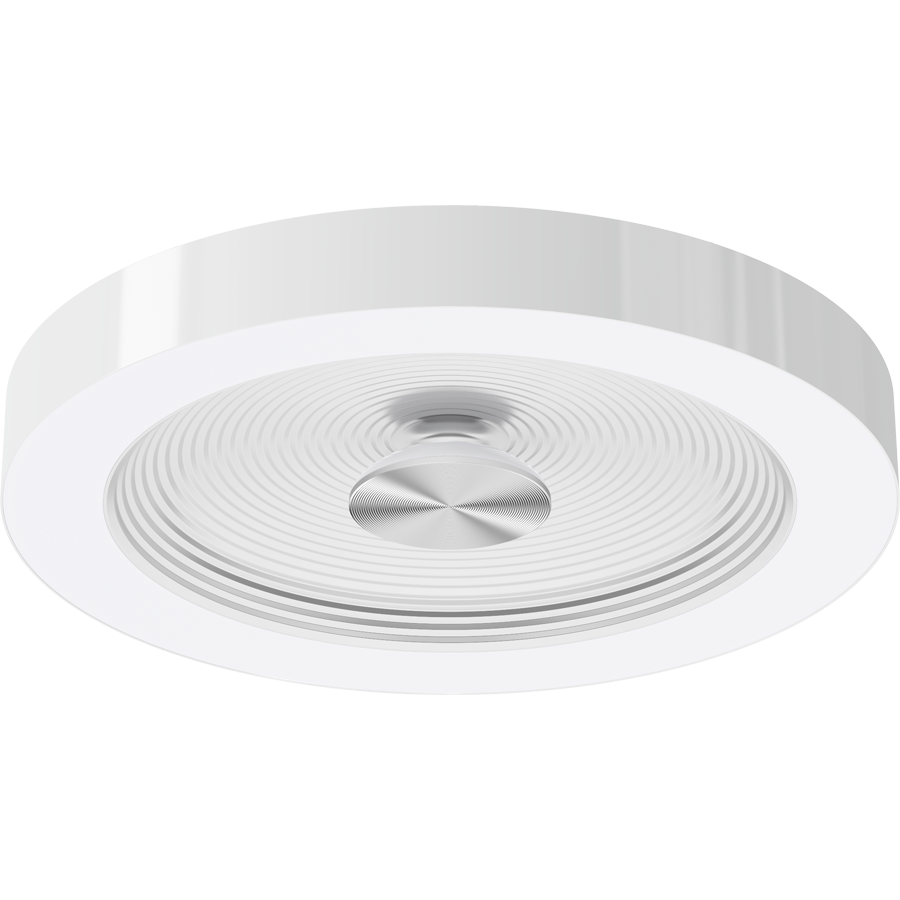

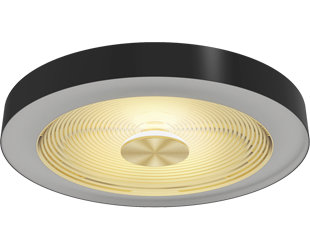

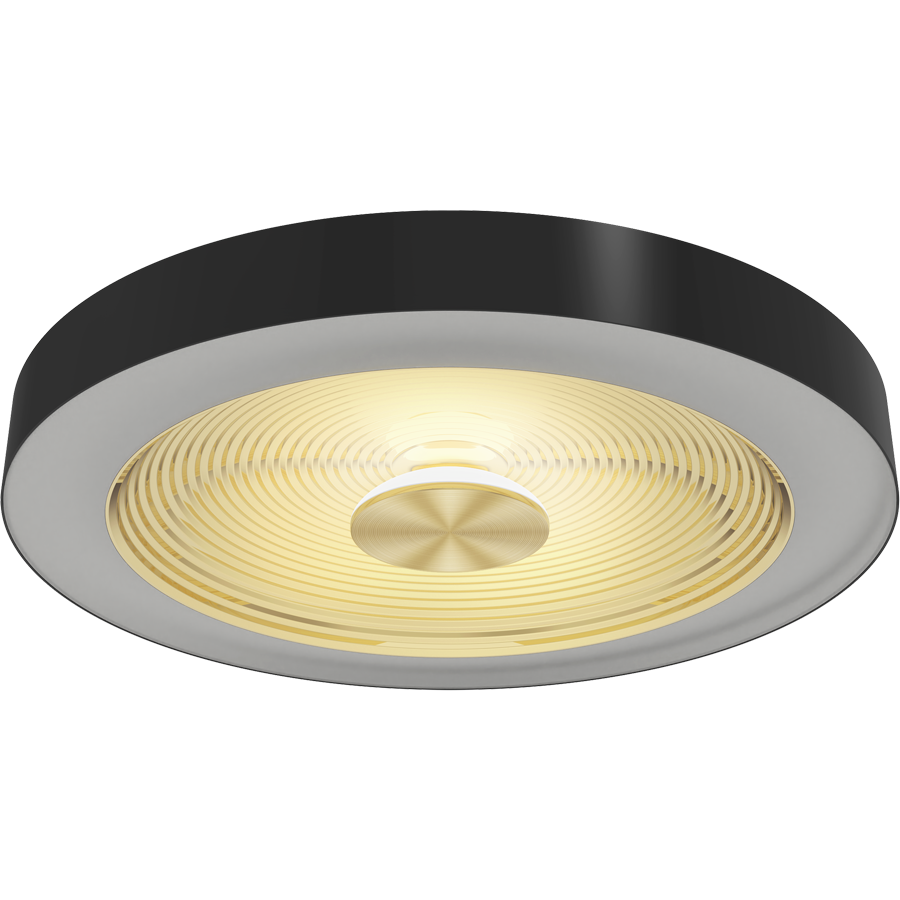

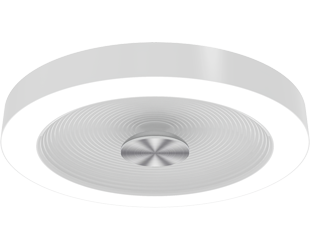

AURA-S16

Spec Sheet IES File Instructions Sell Sheet Family Spec Sheet Spec Sheet EZ Layout

AURA-S16

Field-adjustable wattage and CCT support seamless coordination across different spaces

Low-profile surface mount design delivers a clean, architectural aesthetic

Controlled, diffused light output provides a smooth, even appearance

Integrated reflector design enhances visual comfort while minimizing glare

50,000 hrs., AirTight, California Title 24 compliant, 5-year, no-compromise warranty

View Technical Specs

View Price & Availability

Performance

Watts	25/20/15W
Color Temp	2700/3000/3500/4000/5000K
Lumens	1076-1646 lm
Efficacy	64.4-70.9 lm/W
Color Accuracy	90 CRI
L70 Lifespan	50,000 Hours

Type	Constant Current, Class 2
120V	0.21A/0.17A/0.13A
208V
240V
277V
Input Watts	15.3-25.4W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 3.0 lbs

Technical Specifications

Performance

Product Type

Decorative Surface Mount

Description

Versatile architectural lighting that combines refined design and smooth illumination for contemporary commercial, hospitality, residential, and retail environments.

Wattage Equivalency

60W Incandescent

Input Wattage

25/20/15W

Lumens (Nominal)

1,350/1,200/800lm

Efficacy

55lm/W

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Electrical

Driver

Constant Current, Class 2 120V 50/60; 120V: 240mA

THD

≤20%

Power Factor

≥0.9

Dimmable

Yes, dimmable down to 10% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.

Operating Temperature

-4°F to 113°F(-20 to 45°C)

Flicker

≤30%

LED Characteristics

Beam Angle

120°±10°

Color Temperature

Default: 3000K
Field adjustable via dip switch 2700/3000/3500/4000/5000K

Color Accuracy (CRI)

90 CRI

R9 Value

High color performance with R9 greater than 0

Color Consistency

<6-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Installation

Mounting

Surface or pendant mount (accessory sold separately)

Construction

Size

16"

Shape

Round

Finish

White housing, white reflector

Enclosure Material

Metal

Air Tight

Housing certified Air Tight as per ASTM-E283

Compliance

ETL Listed

This product has been tested by Intertek and found in compliance with accepted national standards.

Environment

Suitable for use indoors in dry environments.

IC Rated

Energy Star Approved

DLC Listed

This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.

California Title 20 Compliant

California Title 24 JA8 Compliant

Can be used to conform with the requirements of California Title 24 Part 6.

California Energy Commission (CEC) Status

Lawful for Sales in California

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Other

Compatible Accessories

AURA-STEM
AURA Pendant mount stem, white

AURA-STEMB
AURA Pendant mount stem, black

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
