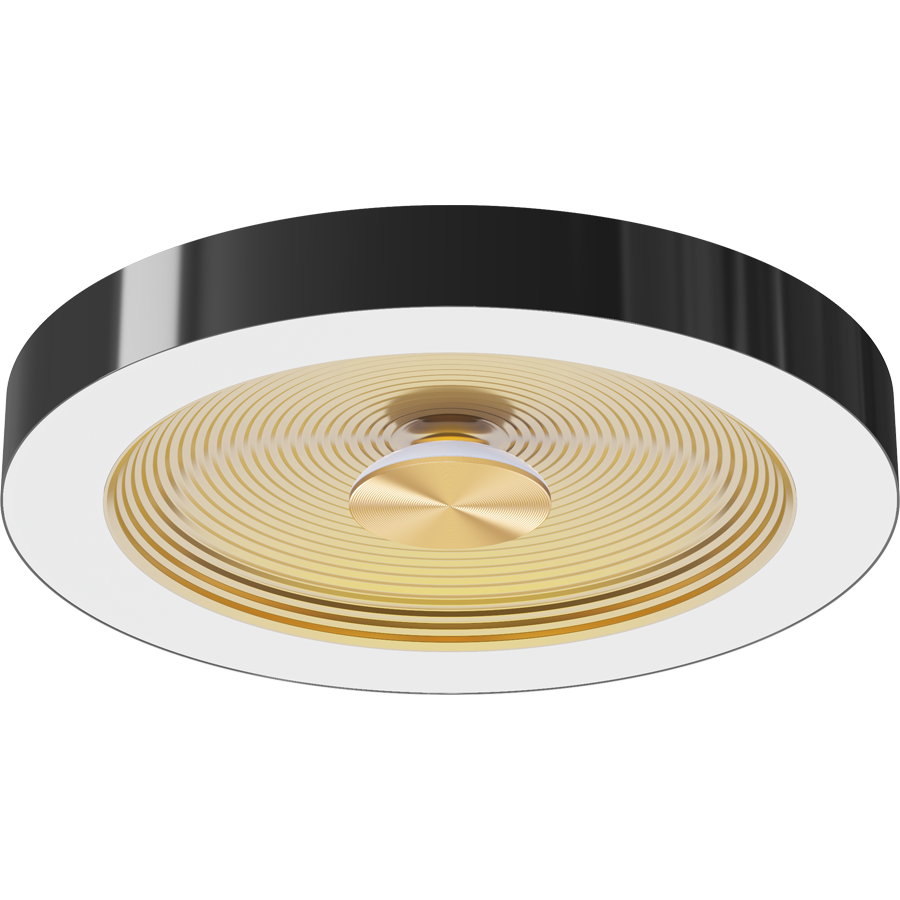

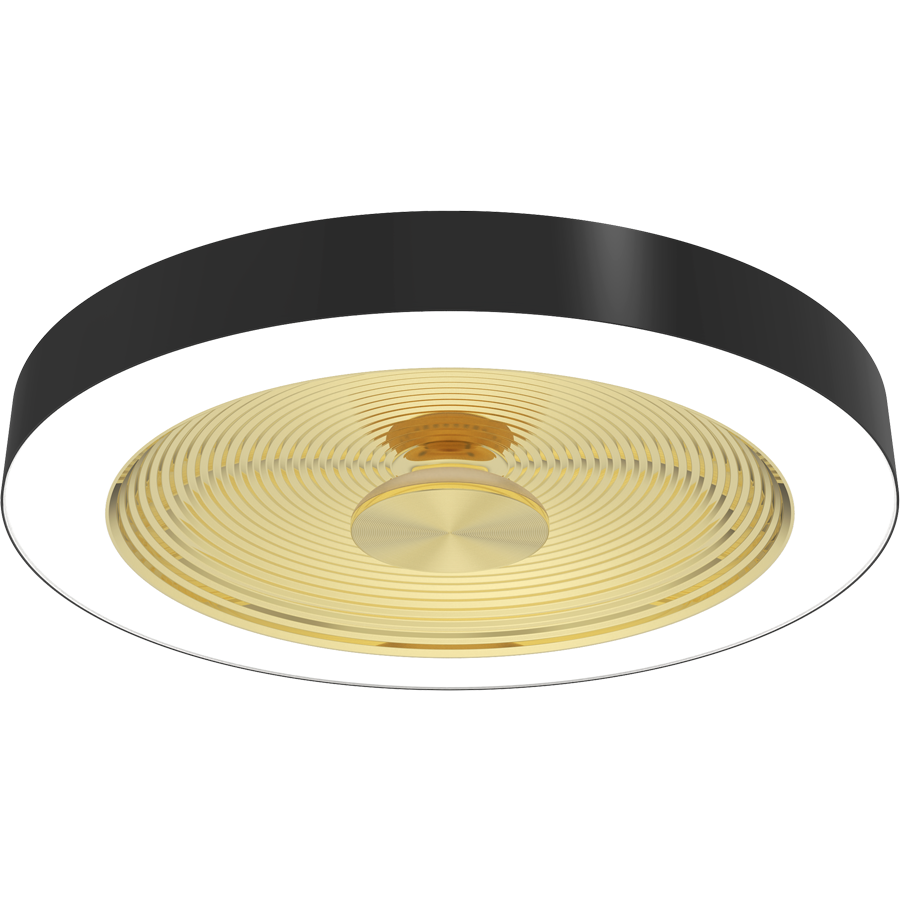

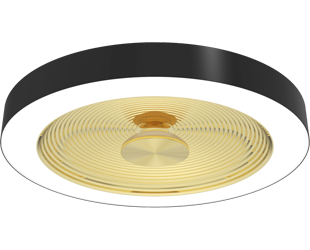

AURA-S16BG
- Field-adjustable wattage and CCT support seamless coordination across different spaces
- Low-profile surface mount design delivers a clean, architectural aesthetic
- Controlled, diffused light output provides a smooth, even appearance
- Integrated reflector design enhances visual comfort while minimizing glare
- 50,000 hrs., AirTight, California Title 24 compliant, 5-year, no-compromise warranty
Performance
| Watts | 25/20/15W |
| Color Temp | 2700/3000/3500/4000/5000K |
| Lumens | 892-1376 lm |
| Efficacy | 54-59 lm/W |
| Color Accuracy | 90 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current, Class 2 |
| 120V | 0.21A/0.17A/0.13A |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 15.2-25.2W |
Dimensions
Weight: 3.0 lbs
Technical Specifications
Performance
Product Type
Decorative Surface Mount
Description
Versatile architectural lighting that combines refined design and smooth illumination for contemporary commercial, hospitality, residential, and retail environments.
Wattage Equivalency
60W Incandescent
Input Wattage
25/20/15W
Lumens (Nominal)
1,350/1,200/800lm
Efficacy
55lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Electrical
Driver
Constant Current, Class 2 120V 50/60; 120V: 240mA
THD
≤20%
Power Factor
≥0.9
Dimmable
Yes, dimmable down to 10% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.
Operating Temperature
-4°F to 113°F(-20 to 45°C)
Flicker
≤30%
LED Characteristics
Beam Angle
120°±10°
Color Temperature
Default: 3000K
Field adjustable via dip switch 2700/3000/3500/4000/5000K
Field adjustable via dip switch 2700/3000/3500/4000/5000K
Color Accuracy (CRI)
90 CRI
R9 Value
High color performance with R9 greater than 0
Color Consistency
<6-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Installation
Mounting
Surface or pendant mount (accessory sold separately)
Construction
Size
16"
Shape
Round
Finish
Black housing, gold reflector
Enclosure Material
Metal
Air Tight
Housing certified Air Tight as per ASTM-E283
Compliance
ETL Listed
This product has been tested by Intertek and found in compliance with accepted national standards.
Environment
Suitable for use indoors in dry environments.
IC Rated
No
Energy Star Approved
No
DLC Listed
No
California Title 20 Compliant
No
California Title 24 JA8 Compliant
Can be used to conform with the requirements of California Title 24 Part 6.
California Energy Commission (CEC) Status
Lawful for Sales in California
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Other
Compatible Accessories
AURA-STEM
AURA Pendant mount stem, white
AURA-STEMB
AURA Pendant mount stem, black
AURA Pendant mount stem, white
AURA-STEMB
AURA Pendant mount stem, black
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
