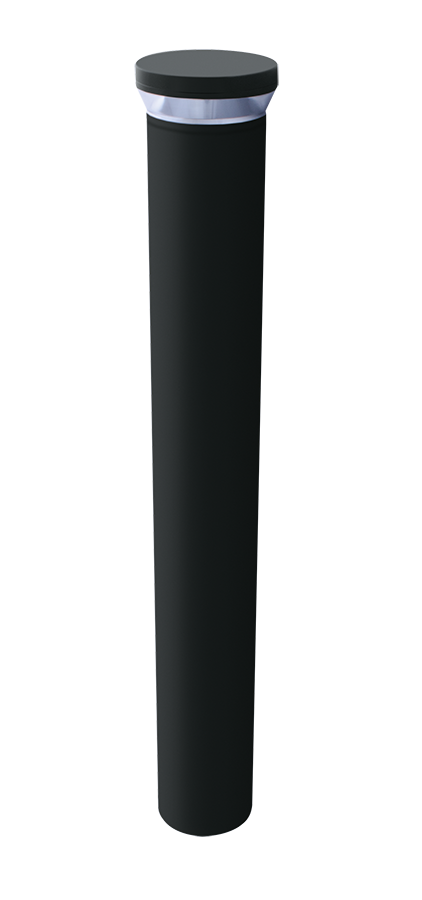

BLEDR18N
BLEDR18N
- Patented base mount design for super sturdy installation
- Durable construction and frosted vandal-resistant polycarbonate lens
- 4 configurations to provide 360°(24W), 270°(18W), 180°(12W) or 90°(12W) lighting pattern
- Precision-engineered optics deliver maximum downward lighting without glare
- Four leveling screws provided for easy installation
- 100,000-hour LED lifespan
Performance
| Watts | 18W |
| Color Temp | 4000K (Neutral) |
| Lumens | 2,225 lm |
| Efficacy | 126.4 lm/W |
| Color Accuracy | 72 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.24A |
| 208V | 0.18A |
| 240V | 0.15A |
| 277V | 0.12A |
| Input Watts | 17.6W |
Dimensions
Weight: 22.4 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations. Suitable for mounting within 4 ft (1.2m) of the ground.
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
LED Characteristics
LEDs
Long-life, high-efficiency, surface-mount LEDs
Color Consistency
5-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Optical
BUG Rating
B1 U3 G2
Construction
Cold Weather Starting
The minimum starting temperature is -40°C (-40°F)
Thermal Management
Cast aluminum Thermal Management system for optimal heat sinking. The BLED is designed for cool operation, maximum efficiency and long life by minimizing LED junction temperature.
Housing
Die-cast aluminum with extruded aluminum post
Lens
Frosted vandal resistant polycarbonate
Reflector
Vacuum-metalized polycarbonate
Mounting
Four (4) anchor bolts provided for concrete pad mounting. Internal base support has leveling screws.
Gaskets
High-temperature silicone gaskets seal out moisture gaskets seal out moisture
Anchor Bolt
Anchor Bolt Dimension is available here.
Finish
Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Other
Patents
The design of BLED is protected by patents in US, Canada & China
Replacement
Replaces up to 50W Metal Halide
Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Buy American Act Compliance
RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
Electrical
Driver
Constant Current, Class 2, 100-277V, 50/60 Hz, 4kV Surge Protection, 700mA, 120V: 0.24A, 208V: 0.18A, 240V: 0.15A, 277V: 0.12A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
8.22% at 120V, 7.85% at 277V
Power Factor
98.98% at 120V, 94.6% at 277V
