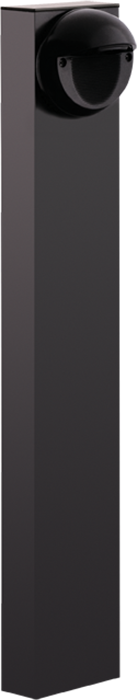

BLEDR5-36N
BLEDR5-36N large main
  • High output LED
  • 100,000-hour life
  • Superior heat sinking with die cast aluminum housing
  • Meets ADA Requirements
 View Technical Specs
View Price & Availability
Performance
Watts 5W
Color Temp 4000K (Neutral)
Lumens 159 lm
Efficacy 30.6 lm/W
Color Accuracy 85 CRI
L70 Lifespan 100,000 Hours
Type Constant Current
120V 0.1A
208V 0.06A
240V 0.05A
277V
Input Watts 5.2W
Dimensions

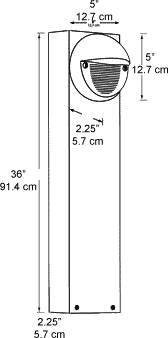

Link to Dimension Drawing

Weight: 10.8 lbs

Technical Specifications
Compliance
UL Listed
Suitable for wet locations
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
LED Characteristics
Color Temperature
4000K
Lumen Maintenance
The LED will deliver 70% of its initial lumens at 100,000 hours of operation
Construction
Housing
Precision die-cast aluminum housing, lens frame
Installation
Mounting
36" Bollard
Electrical
Driver
Multi-chip 5W high output long life LED Driver Constant Current, Class II, 120V-240V, 50/60 Hz, 400mA
