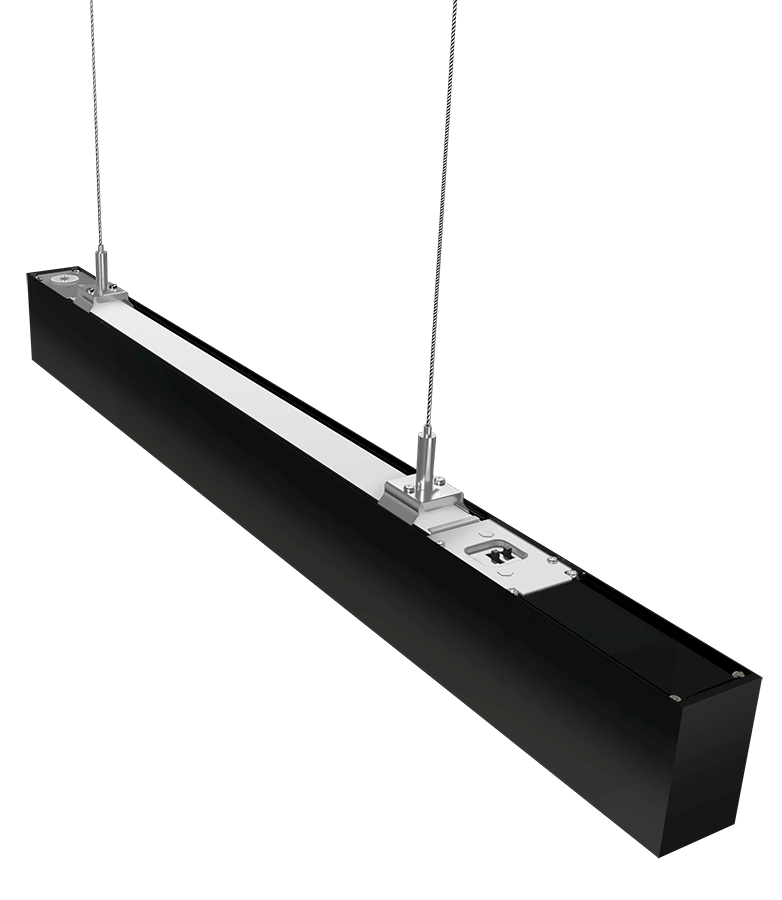

BOA2PLB/PIR

Spec Sheet IES File LM79 Instructions Sell Sheet Family Spec Sheet Spec Sheet EZ Layout

BOA2PLB/PIR

20W 3000K/3500K/4000K

50,000-Hour LED lifespan

0-10V dimming

5-Year, limited warranty

View Technical Specs

View Price & Availability

Performance

Watts	20W
Color Temp	3000K/3500K/4000K
Lumens	733-2,922 lm
Efficacy	128.6-144.7 lm/W
Color Accuracy	94-96 CRI
L70 Lifespan	50,000 Hours

Type	Constant Current
120V	0.17A
208V	0.10A
240V	0.09A
277V	0.08A
Input Watts	5.6-21W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 2.9 lbs

Technical Specifications

Field Adjustability

Field Adjustable

Field Adjustable Light Output:
20W/14W/12W/10W/5W (factory default 20W)
Color Temperature Selectable:
3000K, 3500K and 4000K (factory default 4000K)

Compliance

UL Listed

Suitable for damp locations

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

DLC Listed

This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-02DC4Z

Electrical

Driver

Constant Current, Class 2, 120-277V, 50/60 Hz:
20W: 120V: 0.17A, 208V: 0.10A, 240V: 0.09A, 277V: 0.08A
14W: 120V: 0.12A, 208V: 0.07A, 240V: 0.06A, 277V: 0.05A
12W: 120V: 0.10A, 208V: 0.06A, 240V: 0.05A, 277V: 0.05A
10W: 120V: 0.09A, 208V: 0.06A, 240V: 0.05A, 277V: 0.04A
5W: 120V: 0.05A, 208V: 0.03A, 240V: 0.02A, 277V: 0.02A

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

THD

4.5% at 120V, 8.16% at 277V

Power Factor

99.5% at 120V, 93.2% at 277V

Surge Protection

2kV

LED Characteristics

LEDs

Long-life, high-efficacy, surface-mount LEDs

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Performance

Lifespan

50,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Performance Data

Click here for the BOA2 performance data

Wattage Equivalency

20W: Replaces up to (1) F32T8 or (3) F17T8
14W: Replaces up to (1) F32T8 or (2) F17T8
12W: Replaces up to (1) F32T8 or (2) F17T8
10W: Replaces up to (1) F32T8 or (1) F17T8
5W: Replaces up to (1) F32T8 or (1) F17T8

Construction

Cold Weather Starting

The minimum starting temperature is -20°C (-4°F)

Maximum Ambient Temperature

Suitable for use in up to 40°C (104°F)

Housing

Aluminum

Mounting

94" of aircraft cable provided with cable grippers for easy adjustment after installation

Lens

Polycarbonate reflective louvers lens

Reflector

Polyethylene Terephthalate (PET)

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

Sensor Specifications

Brightness

0%-100%/Quick setting: 70%/80%/90%/100% (Factory Setting: 100%)

Hold Time

10s/1min/10min/30min (Factory Setting: 1 Minute)

Daylight Threshold

10Lux/30Lux/50Lux/100Lux/Disable (Factory Setting: Disabled)

Sensitivity

100%

Stand-by Dimming Level

10%/20%/30%/50% (Factory Setting: 20%)

Stand-By Time

1min/30min/60min/+∞ (Factory Setting: 1 Minute)

Operating Voltage

12 ± 2V DC

Operating Current

30mA

Output

DIM 0-10V

Stand-By Power

<0.5W

Lux On-Off

Adopted dual PD technology

Height

Max 20ft/6M (ceiling mounted)

Detection Range

Max 26ft/8M (ceiling mounted) Max 20ft/6m (wall mounted)

Operating Temperature

-30°C to 60°C (-22°F to 140°F)

Other

Note

All values are typical (tolerance +/- 10%)

5 Yr Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Buy American Act Compliance

RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
