BOA8PLS/PIR

Spec Sheet IES File LM79 Instructions Sell Sheet Family Spec Sheet Spec Sheet EZ Layout

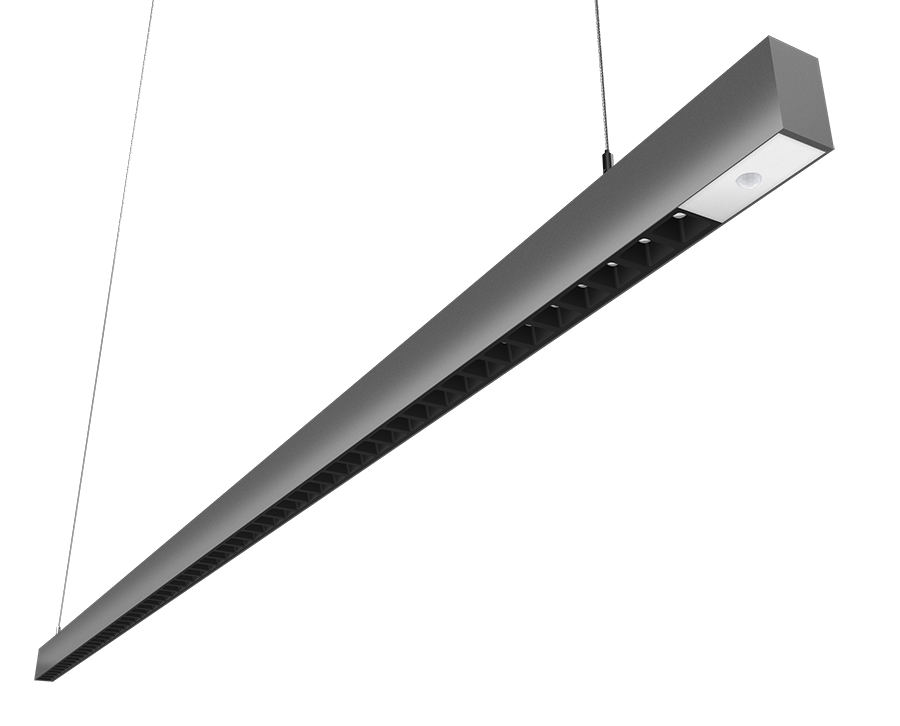

BOA8PLS/PIR

80W 3000/3500/4000K

100,000-Hour LED lifespan

0-10V dimming

5-Year, limited warranty

View Technical Specs

View Price & Availability

Performance

Watts	80W
Color Temp	3000/3500/4000K
Lumens	2,845-11,383 lm
Efficacy	135.2-151.8 lm/W
Color Accuracy	93-96 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	0.67A
208V	0.40A
240V	0.34A
277V	0.30A
Input Watts	19.6-80.4W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 8.7 lbs

Technical Specifications

Field Adjustability

Field Adjustable

Field Adjustable Light Output:
80/56/48/40/20W (factory default 80W)
Color Temperature Selectable:
3000K, 3500K and 4000K (factory default 3500K)

Compliance

UL Listed

Suitable for damp locations

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

DLC Listed

This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.

Electrical

Driver

Constant Current, Class 2, 120-277V, 50/60 Hz:
80W: 120V: 0.67A, 208V: 0.40A, 240V: 0.34A, 277V: 0.30A
56W: 120V: 0.48A, 208V: 0.27A, 240V: 0.24A, 277V: 0.21A
48W: 120V: 0.40A, 208V: 0.24A, 240V: 0.20A, 277V: 0.18A
40W: 120V: 0.34A, 208V: 0.20A, 240V: 0.18A, 277V: 0.15A
20W: 120V: 0.17A, 208V: 0.10A, 240V: 0.09A, 277V: 0.08A

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

THD

6.93% at 120V, 4.44% at 277V

Power Factor

94.2% at 120V, 99.6% at 277V

Surge Protection

2 kV

Continuous Runs

Maximum wattage for a continuous run should not exceed 600W

LED Characteristics

LEDs

Long-life, high-efficacy, surface-mount LEDs

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Performance

Lifespan

100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

Performance Data

Click here for the BOA8 performance data

Wattage Equivalency

80W: Replaces up to (6) F32T8 or (3) F96T8
56W: Replaces up to (4) F32T8 or (2) F96T8
48W: Replaces up to (4) F32T8 or (2) F96T8
40W: Replaces up to (3) F32T8 or (1) F96T8
20W: Replaces up to (1) F32T8 or (1) F96T8

Construction

Cold Weather Starting

The minimum starting temperature is -4°F (-20°C)

Maximum Ambient Temperature

Suitable for use in up to 104°F (40°C)

Housing

Aluminum

Lens

Polycarbonate reflective louvers lens

Reflector

Polyethylene Terephthalate (PET)

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

Installation

Mounting

94" of aircraft cable provided with cable grippers for easy adjustment after installation

Sensor Settings

Brightness

0%-100%/Quick setting: 70%/80%/90%/100% (Factory Setting: 100%)

Hold Time

10s/1min/10min/30min (Factory Setting: 1 Minute)

Daylight Threshold

10Lux/30Lux/50Lux/100Lux/Disable (Factory Setting: Disabled)

Sensitivity

100%

Stand-by Dimming Level

10%/20%/30%/50% (Factory Setting: 20%)

Stand-By Time

1min/30min/60min/+∞ (Factory Setting: 1 Minute)

Operating Voltage

12 ± 2V DC

Operating Current

30mA

Output

DIM 0-10V

Stand-By Power

<0.5W

Lux On-Off

Adopted dual PD technology

Height

Max 20 ft/6M (ceiling mounted)

Detection Range

Max 26 ft/8M (ceiling mounted) Max 20 ft/6m (wall mounted)

Operating Temperature

-30°C to 60°C (-22°F to 140°F)

Other

5-Year Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
