• Economical
  • Traditional non-cutoff design
  • 60,000-hour LED lifespan
  • 5-Year, limited warranty
View Technical Specs
Performance
Watts 9W
Color Temp 4000K (Neutral)
Lumens 1,162 lm
Efficacy 140 lm/W
Color Accuracy 72 CRI
L70 Lifespan 60,000 Hours
Type Constant Current
120V 0.08A
208V 0.05A
240V 0.04A
277V 0.04A
Input Watts 8.3W
Dimensions
Link to Dimension Drawing

Weight: 2.0 lbs

Technical Specifications
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
IP Rating
Ingress protection rating of IP66 for dust and water
Performance
Lifespan
60,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Wattage Equivalency
Equivalent to 35W HPS or 50W Metal Halide
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Electrical
Driver
Constant Current, Class 2, 50/60Hz, 120V: 0.08A, 208V: 0.05A, 240V: 0.04A, 277V: 0.04A
THD
17.78% at 120V, 22.15% at 277V
Power Factor
98.4% at 120V, 91.7% at 277V
Surge Protection
2.5kV
Optical
BUG Rating
B0 U3 G1
Construction
Maximum Ambient Temperature
Suitable for use in up to 40°C (104°F)
Cold Weather Starting
The minimum starting temperature is -30°C (-22°F)
Housing
Precision die-cast aluminum
Reflector
Specular
Lens
Diffused acrylic
Gaskets
Silicone foam
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Installation
Mounting
Heavy duty, die-cast junction box with four (4) conduit entries (one top, two side, one back)
Other
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Replacement
Replaces 75A/IF incandescent Inside Frost or 13W CFL

Recently Viewed Products

 This is a link to the product A17-5T300/480/MVS A17-5T300/480/MVS
Area Lights A17 V 300/240/200W 3000K/4000K/5000K 480V Pole Mount Mv Sens Bronze
 This is a link to the product VAN34-90FR/LC VAN34-90FR/LC
Van34 90/80/70W 3000/4000/5000K Drop Frosted Lens Lightcloud Bronze
 This is a link to the product HALV10L935-FG1-S HALV10L935-FG1-S
Architectural 796 Lumens Halv Forward Light 14W 90Cri 3500K Frosted Lens With Grill Style 1 Silver Finish
 This is a link to the product GOOSE3W GOOSE3W
Decorative Gooseneck Style3 Upcurve 30 Inches High 25 Inches From Wall 1/2 Inch Nps White
 This is a link to the product ALED3T50/D10/PCT ALED3T50/D10/PCT
Arealights 6855 Lumens Aled Type Iii 8In Pole Arm 5K 50W 120V-277V 0-10V Dimming Twistlock Photocell Bronze
 This is a link to the product HALV10L930-LW-S/LC HALV10L930-LW-S/LC
Architectural 360 Lumens Halv Forward Light 14W 90Cri 3000K Linen Hampton White Lens Silver Finish Lightcloud Controller
 This is a link to the product A17-5T300/480/MVS A17-5T300/480/MVS
Area Lights A17 V 300/240/200W 3000K/4000K/5000K 480V Pole Mount Mv Sens Bronze
 This is a link to the product VAN34-90FR/LC VAN34-90FR/LC
Van34 90/80/70W 3000/4000/5000K Drop Frosted Lens Lightcloud Bronze
 This is a link to the product HALV10L935-FG1-S HALV10L935-FG1-S
Architectural 796 Lumens Halv Forward Light 14W 90Cri 3500K Frosted Lens With Grill Style 1 Silver Finish

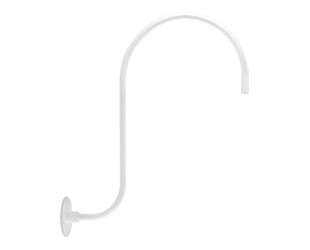

 This is a link to the product GOOSE3W GOOSE3W
