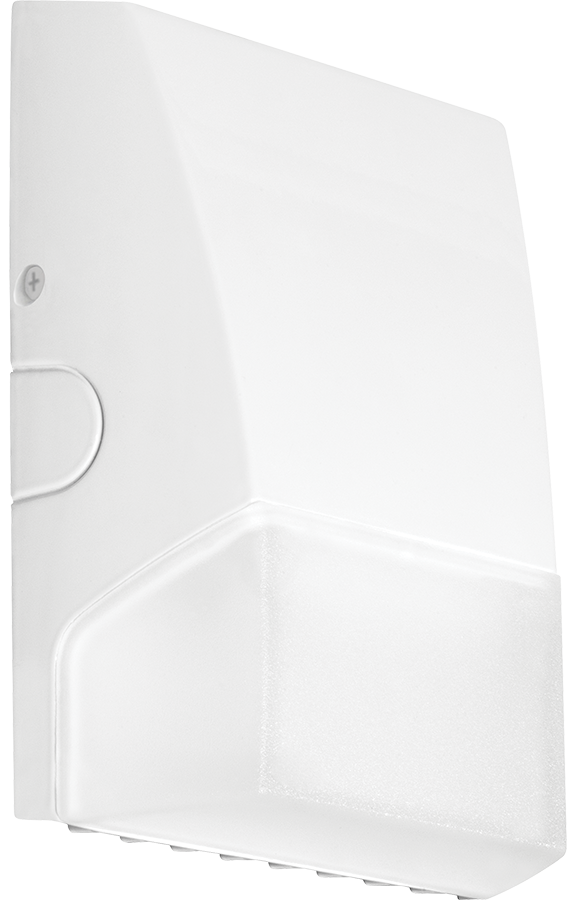

BRISKS17L-W

Spec Sheet IES File LM79 Instructions Spec Sheet EZ Layout

BRISKS17L-W

Economical

Traditional non-cutoff design

60,000-hour LED lifespan

5-Year, limited warranty

View Technical Specs

View Price & Availability

Performance

Watts	14W
Color Temp	5000K (Cool)
Lumens	1,919 lm
Efficacy	147.6 lm/W
Color Accuracy	74 CRI
L70 Lifespan	60,000 Hours

Type	Constant Current
120V	0.11A
208V	0.07A
240V	0.06A
277V	0.06A
Input Watts	13W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 2.0 lbs

Technical Specifications

Compliance

UL Listed

Suitable for wet locations

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

IP Rating

Ingress protection rating of IP66 for dust and water

Performance

Lifespan

60,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Wattage Equivalency

Equivalent to 70W Metal Halide/50W HPS

LED Characteristics

LEDs

Long-life, high-efficacy, surface-mount LEDs

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Electrical

Driver

Constant Current, Class 2, 50/60Hz, 120V: 0.11A, 208V: 0.07A, 240V: 0.06A, 277V: 0.06A

THD

8.99% at 120V, 8.79% at 277V

Power Factor

98.5% at 120V, 90.7% at 277V

Surge Protection

2.5 kV

Optical

BUG Rating

B0 U3 G2

Construction

Maximum Ambient Temperature

Suitable for use in up to 104°F (40°C)

Cold Weather Starting

The minimum starting temperature is -22°F (-30°C)

Housing

Precision die-cast aluminum

Reflector

Specular

Lens

Diffused acrylic

Gaskets

Silicone foam

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

Installation

Mounting

Heavy duty, die-cast junction box with four (4) conduit entries (one top, two side, one back)

Other

5-Year Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Replacement

Replaces 100A/IF incandescent Inside Frost, 100W T5 Halogen incandescent or 26W CFL
