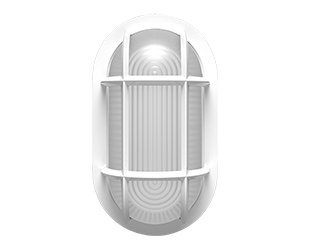

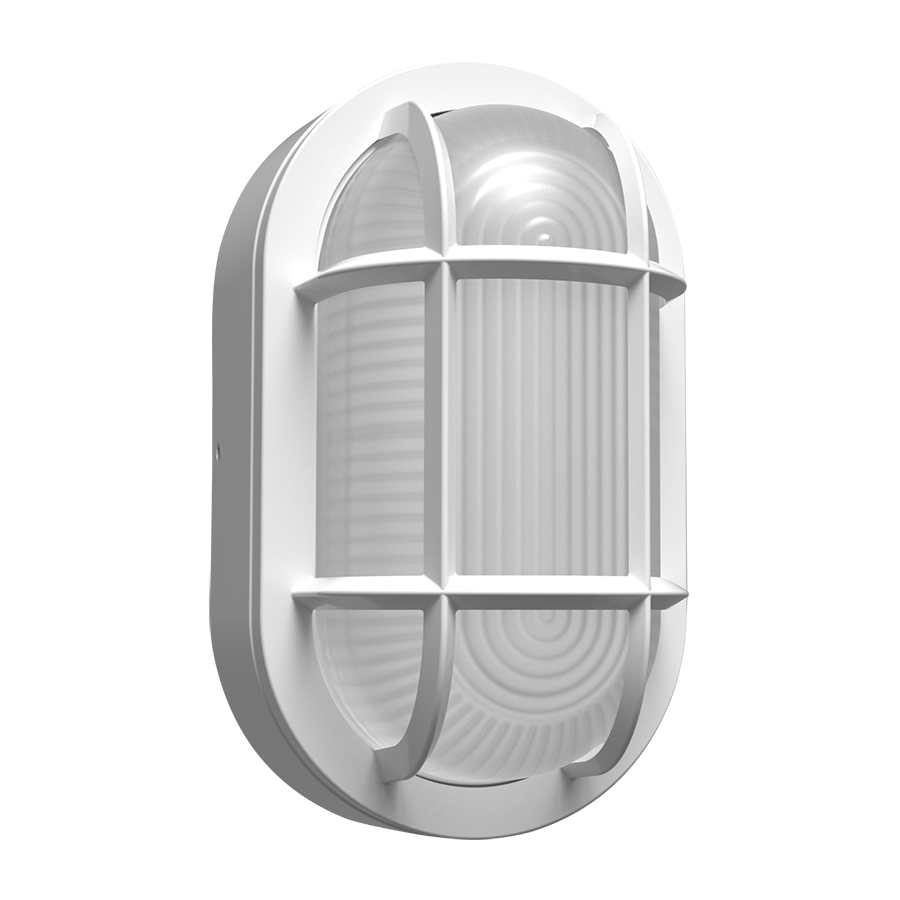

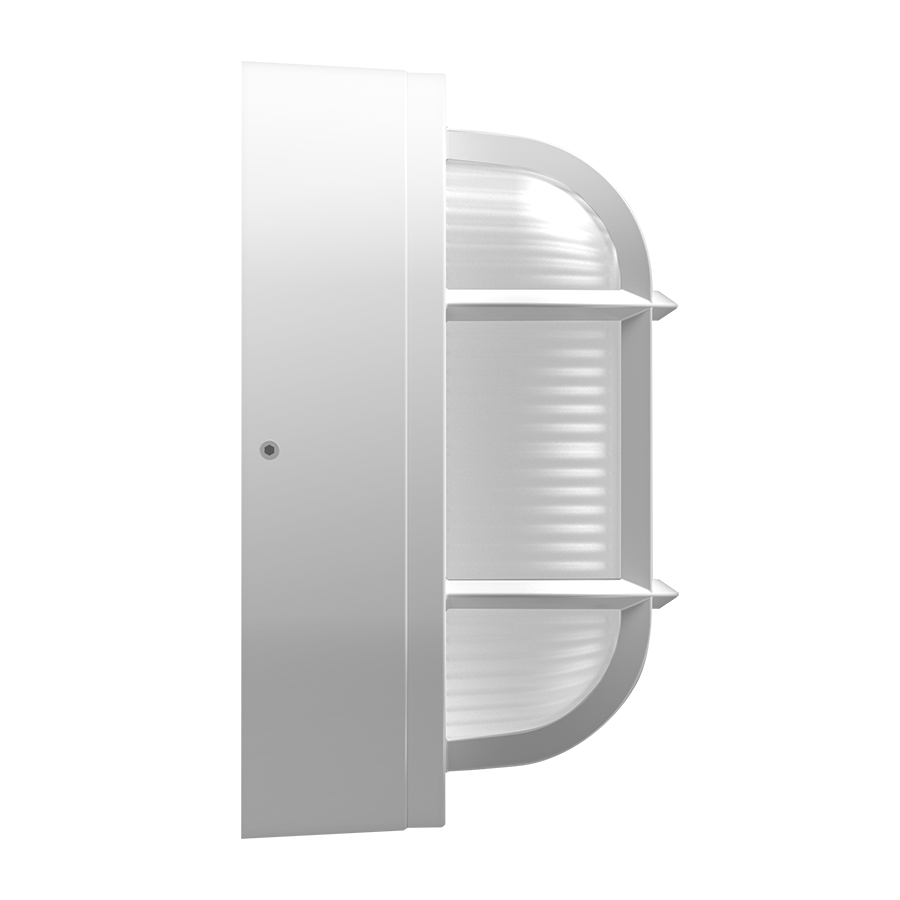

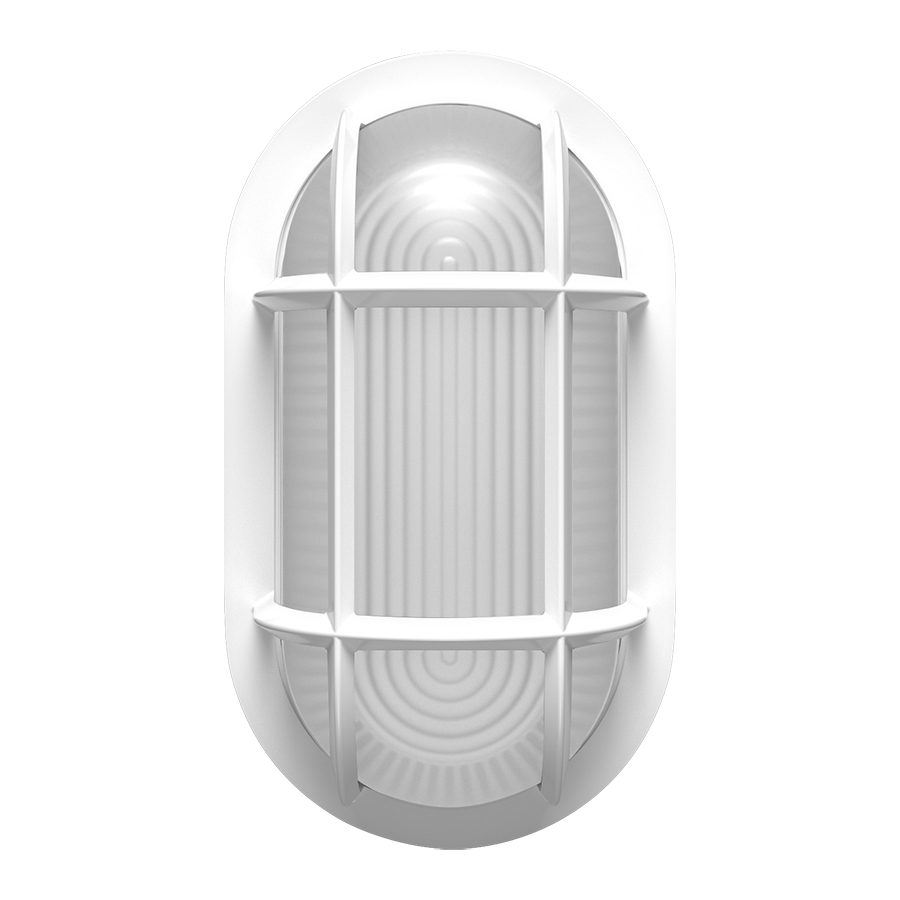

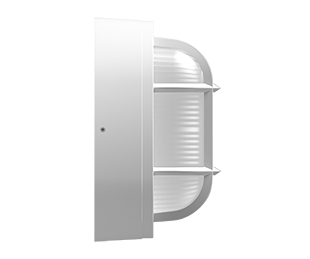

BULKH10W

Spec Sheet IES File LM79 Instructions Sell Sheet Folleto (Español) Family Spec Sheet Spec Sheet EZ Layout

BULKH10W

10W 3000/4000/5000K

100,000-hour LED Life

On/Off photocell

5-Year, limited warranty

View Technical Specs

View Price & Availability

Performance

Watts	10/8/06W
Color Temp	3000/4000/5000K
Lumens	573-1,002 lm
Efficacy	90.1-107.2 lm/W
Color Accuracy	82-84 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	0.1A/0.07A/0.05A
208V	0.05A/0.04A/0.03A
240V	0.04A/0.04A/0.03A
277V	0.04A/0.03A/0.03A
Input Watts	5.82-10W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 2.5 lbs

Technical Specifications

Field Adjustability

Field Adjustable

Field Adjustable Light Output:
10W/8W/6W (factory default 10W)
Color Temperature Selectable:
3000K, 4000K and 5000K (factory default 5000K)
On/Off Photocell (factory default "On")

Performance

Lifespan

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

LED Characteristics

LEDs

Long-life, high-efficacy, discrete, surface-mount LEDs

Electrical

Driver

Constant Current, Class 1, 120-277V, 50/60 Hz:
10W: 120V: 0.10A, 208V: 0.05A, 240V: 0.04A, 277V: 0.4A
8W: 120V: 0.07A, 208V: 0.04A, 240V: 0.04A, 277V: 0.03A
6W: 120V: 0.05A, 208V: 0.03A, 240V: 0.03A, 277V: 0.03A

THD

10W: 23.7% at 120V, 14.8% at 277V
8W: 25.9% at 120V, 15.6% at 277V
6W: 24.1% at 120V, 18.7% at 277V

Power Factor

10W: 97% at 120V, 93.5% at 277V
8W: 96.3% at 120V, 91.0% at 277V
6W: 96.5% at 120V, 86.4% at 277V

Aux Power Supply

Dim to Off

Photocell

120-277V selectable photocell that can be turned on and off.

Surge Protection

2 kV

Construction

Cold Weather Starting

The minimum starting temperature is -40°F (-40°C)

Maximum Ambient Temperature

Suitable for use in up to 113°F (45°C)

Housing

Die-cast aluminum

Lens

Glass

Gaskets

High-temperature silicone

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

Compliance

UL Listed

Suitable for wet locations

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

IP Rating

Ingress protection rating of IP65 for dust and water

Installation

Mounting

Wall mount

Optical

BUG Rating

10W: B0 U2 G1
8W: B0 U2 G1
6W: B0 U2 G1

Other

5-Year Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
