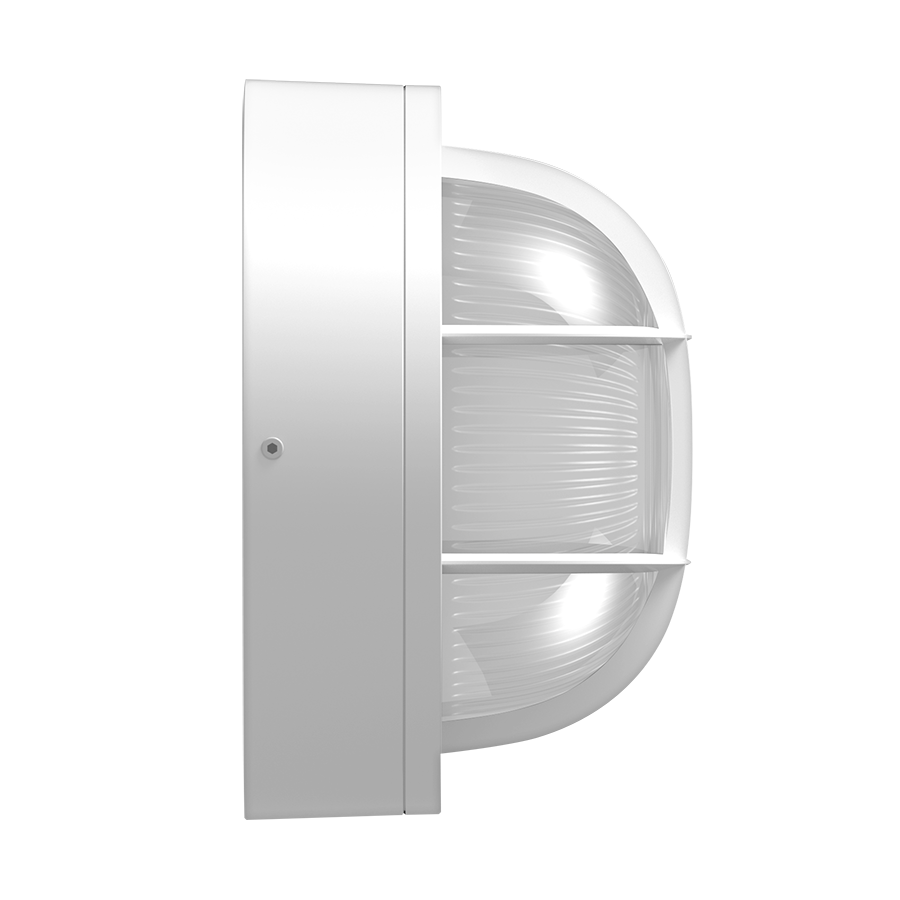

BULKH15RW

15W 3000/4000/5000K

100,000-hour LED Life

On/Off photocell

5-Year, limited warranty

View Technical Specs

View Price & Availability

Performance

Watts	15/12/9W
Color Temp	3000/4000/5000K
Lumens	1,018-1,684 lm
Efficacy	107.8-119.7 lm/W
Color Accuracy	83-86 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	0.13A/0.10A/0.08A
208V	0.07A/0.06A/0.05A
240V	0.06A/0.05A/0.04A
277V	0.06A/0.05A/0.04
Input Watts	9.1-14.6W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 3.3 lbs

Technical Specifications

Field Adjustability

Field Adjustable

Field Adjustable Light Output:
15W/12W/9W (factory default 15W)
Color Temperature Selectable:
3000K, 4000K and 5000K (factory default 5000K)
On/Off Photocell (factory default "On")

Performance

Lifespan

100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

LED Characteristics

LEDs

Long-life, high-efficacy, discrete, surface-mount LEDs

Electrical

Driver

Constant Current, Class 1, 120-277V, 50/60 Hz:
15W: 0.13A, 208V: 0.07A, 240V: 0.06A, 277V: 0.06A
12W: 120V: 0.10A, 208V: 0.06A, 240V: 0.05A, 277V: 0.05A
9W: 120V: 0.08A, 208V: 0.05A, 240V: 0.04A, 277V: 0.04A

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

Power Factor

15W: 98.1% at 120V, 92.5% at 277V
12W: 97.9% at 120V, 91.1% at 277V
9W: 97.1% at 120V, 86.5% at 277V

Aux Power Supply

Dim to Off

Photocell

120-277V selectable photocell that can be turned on and off.

Surge Protection

2 kV

Construction

Cold Weather Starting

The minimum starting temperature is -40°F (-40°C)

Maximum Ambient Temperature

Suitable for use in up to 113°F (45°C)

Housing

Die-cast aluminum

Lens

Glass

Gaskets

High-temperature silicone

Green Technology

Mercury and UV free. RoHS-compliant components.

Compliance

UL Listed

Suitable for wet locations

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

IP Rating

Ingress protection rating of IP65 for dust and water

Installation

Mounting

Wall mount

Other

5-Year Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
